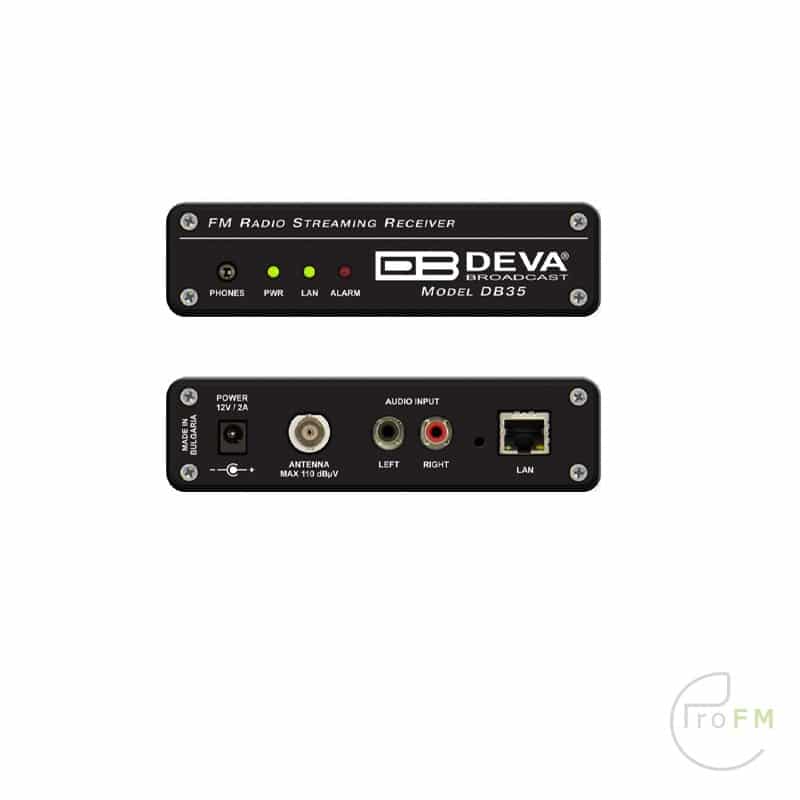

Deva Broadcast DB35 Compact & Reliable FM Radio Streamer

Fully in keeping with the high standards of the DEVA product range, the DB35 model is the very definition of reliable, high-quality streaming of the FM signal. With a compact and practical, but quite elegant design, this product has been developed with the express purpose of allowing users to listen to and record the audio from any station. It also incorporates a variety of features providing accurate and dependable monitoring and measuring of many signal parameters, including the RF level, MPX deviation, MPX power, Left & Right audio levels, RDS, and Pilot injection levels.

The DB35 boasts a fully DSP-based core and guarantees round-the-clock operation. Crucially, this product provides an analog input, which allows you to perform not only remote, but also local audio monitoring. Upon demodulation of the FM signal, the RF signal is digitalized by the SDR FM tuner and all signal processing is achieved through calculations. The precision of this tool’s digital filters means that the FM Multiplex signal’s components can be accurately and repeatedly reproduced from one device to another, i.e. the same signal applied to two devices would give the same result. All measurement can be refreshed simultaneously and synchronously so that detailed readings of the Multiplex FM signal components can be obtained. The DB35 supports TCP/IP connectivity for easy control and setup, also allowing you to monitor the channel status.

The DB35 model provides an RDS/RBDS decoder with BER meter, as well as adjustable alarms for RF, deviation, Pilot and RDS signal via email, SMS and SNMP, while the WEB interface makes for easy management of your unit. The DB35 brings you the customary DEVA dependability and quality. Coupled with an affordable price, all its features contrive to produce an impeccable streaming performance.

Highlites

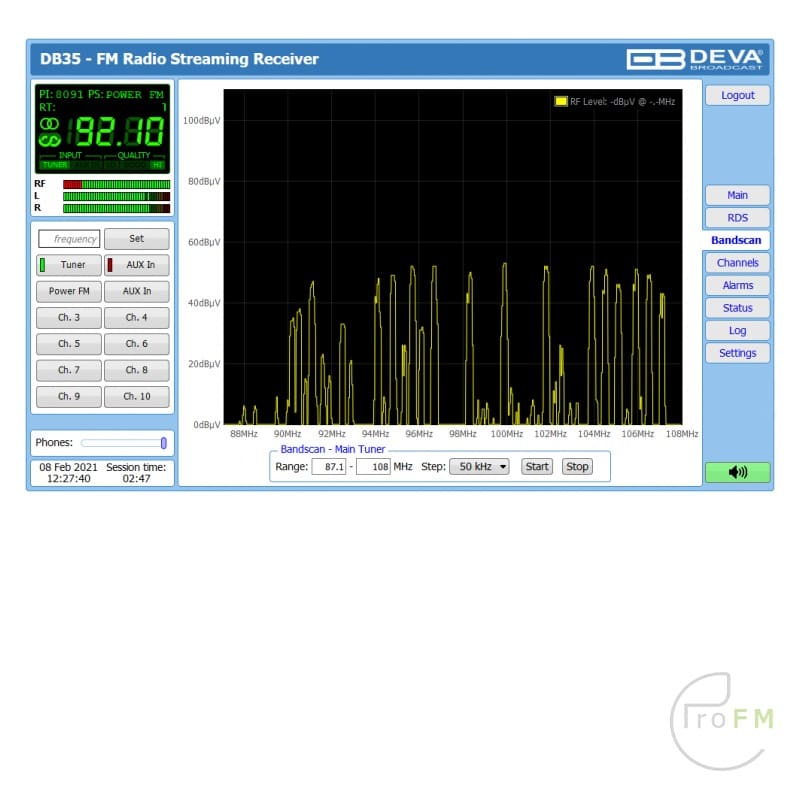

• FM Band 65 ÷ 108 MHz Basic Spectrum Analyzer
• Real Time Audio Program Streaming
• Fully DSP based core
• Selectable De-emphasis – 50µs and 75µs
• Built-in Stereo Decoder; Stereo Presence Detection
• Date & Time Settings with various formats
• LAN port for full TCP/IP remote control and monitoring
• Up to 90dBµV direct RF Antenna Input
• Adjustable alarms for RF, Pilot and RDS signal
• Firmware update for future-proof operation
• Parameters Factory Restore Option

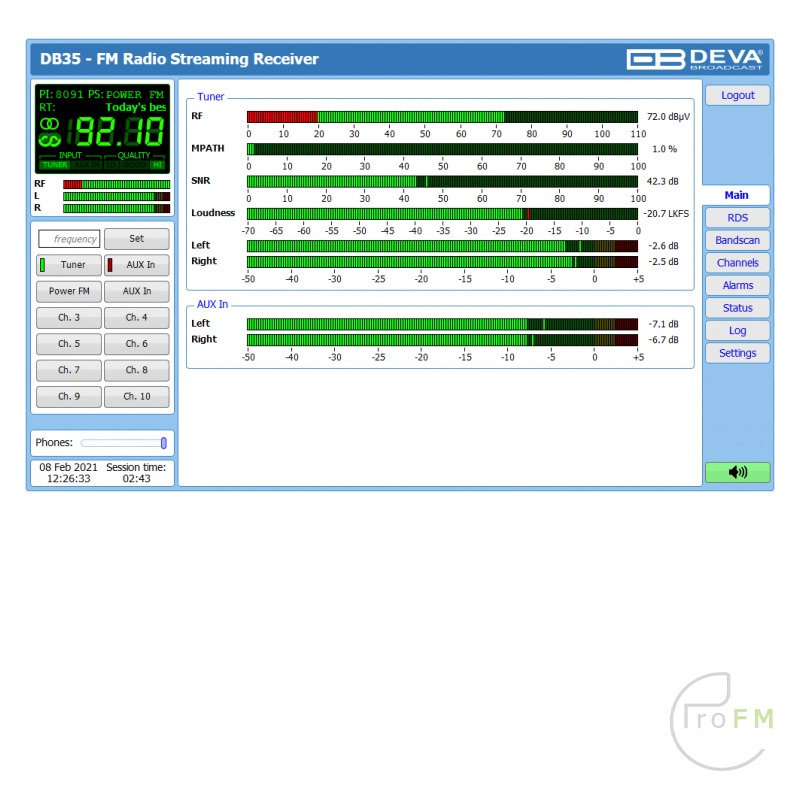

• MPX, PILOT & RDS deviation meters
• LEFT and RIGHT demodulated audio level meters
• Headphones audio output

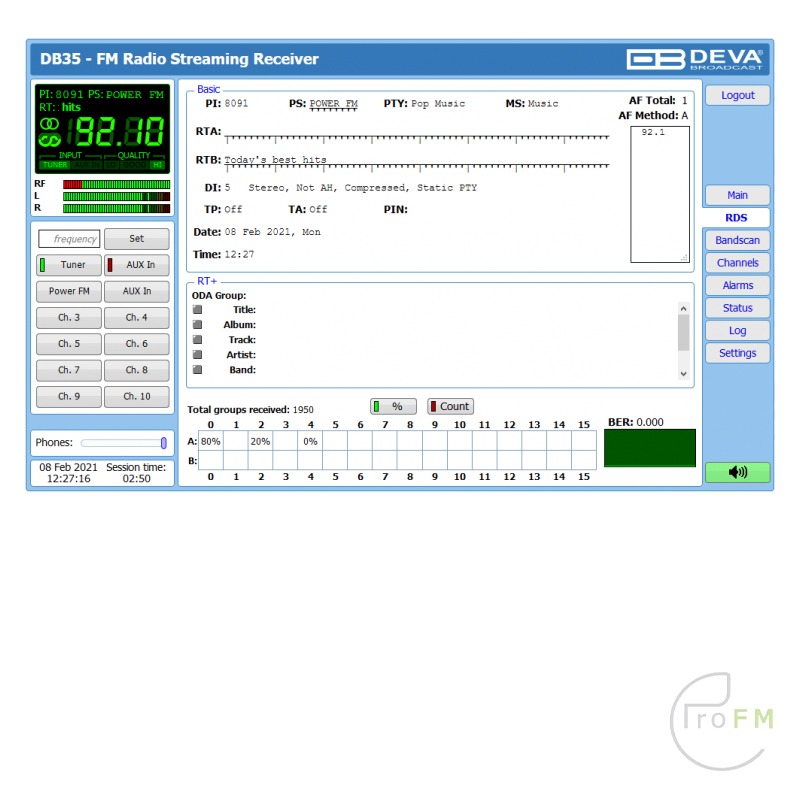

• RDS and RBDS decoder with BER meter
• Loudness meter
• Alarm dispatch via E-mail, SMS, SNMP
• Channel status reporting via SMS
• RF and RDS Measurements
• Real Time Audio Program Streaming
• Attractive price and very good price-performance ratio
• Very Intuitive Embedded WEB server for interactive supervision
• Proved and reliable hardware for 24/7/365 operating
• Easy Installation and Setup
• SNTP for automatic synchronization of the built-in clock
• Compact and Robust Aluminum Case for high RF immunity

RF Input
Tuning Range User selectable, 87.1-107.9 MHz (CCIR), 65-74 MHz (OIRT), 76-95 MHz (Japan)
Tuning Step 10, 20, 50, 100 kHz
Tuner Sensitivity 30 dBµV
Antenna Port BNC Connector, 50Ω
Internal Attenuator 0, 10, 20 and 30 dB
Dynamic range 100 dB
FM Demod
IF Filter Bandwidth 15 Increments (25kHz – 157kHz, Auto)
Frequency Response ±0.1 dB, 10 Hz to 86 kHz
Dynamic range 90 dB
Stereo Decoder
Frequency Response (L and R) ±0.1 dB, 10 Hz to 15 kHz
SNR (Stereo) 60 dB, 50 µs de-emphasis
THD 0.1%, 10 Hz to 15 kHz, 50 µs de-emphasis
Separation 50 dB, 50 Hz to 10 kHz, 50 µs de-emphasis
Crosstalk 52 dB
RDS Decoder
Standards European RDS CENELEC; United States RBDS NRSC
Error Correction & Counting Yes
AF Decoding Yes
CT (Time/Date) Yes
PI, PTY, DI, MS Yes
TA/TP Yes
RT (Radio Text), RT+ Yes
PS (Program Service name) Yes
ODA Yes
Group Analyzer Yes
BER Analyzer Yes
Group Sequence Display Yes
RDS RAW Data Display Yes
Analog Аudio input
Connector 2 x RCA, stereo
Type Unbalanced
Level +6 dBu (max. +8dBu)
Sample rate 96 kHz; Build-in sample rate converter used to produce lower sample rates
Dynamic range 102 dB
Metering Accuracy
RF Level ±1 dB, 0 to 100 dBµV
Multipath 0 to 100%; accuracy – ±1%
Pilot Level ±0.5 kHz, 1 to 12 kHz, 0.2 kHz resolution
RDS Level ±0.5 kHz, 1 to 12 kHz, 0.2 kHz resolution
Audio Level ±1 dB, +10.0 to -55.0 dB, 0.1 dB resolution
User Interface

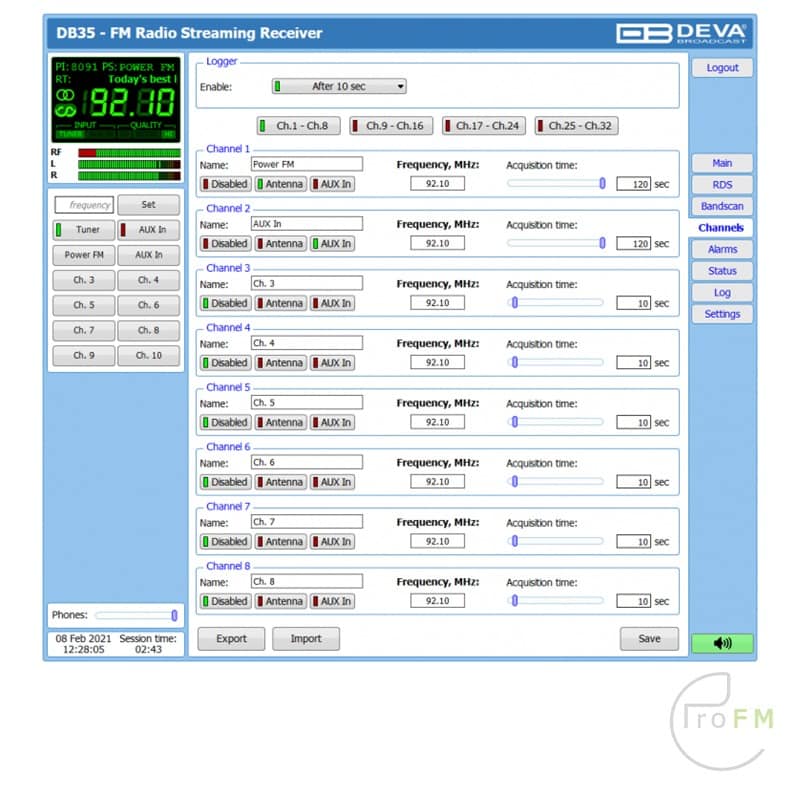

Web interface Full monitoring and control; Interactive and easy to use
Indicators 3 LEDs (on front panel)
Operating Conditions
Temperature 10° to 60°C
EMC Immunity 6V/m
Outputs
Audio stream Icecast/Shoutcast compatible audio stream
Alarms E-mail, SMS, SNMP
Headphone 1/8″ (3.5mm) Phone Jack
Communication Interfaces
Ethernet 10/100 Base-T RJ45 Connector
GSM Modem 15 pin Male D-Sub Connector
Measurement Storage
Storage 16GB Build-in Memory Card
Data format Text, CSV
Power
Voltage External, 12V/1A
Power Consumption 12VA
Connector Power Jack 5.5mm
Size and Weight
Dimensions (W;H;D) 125 x 31 x 160 mm
Shipping Weight 270 x 54 x 230 mm / 1.1kg
HS Code 8527212000
