Description

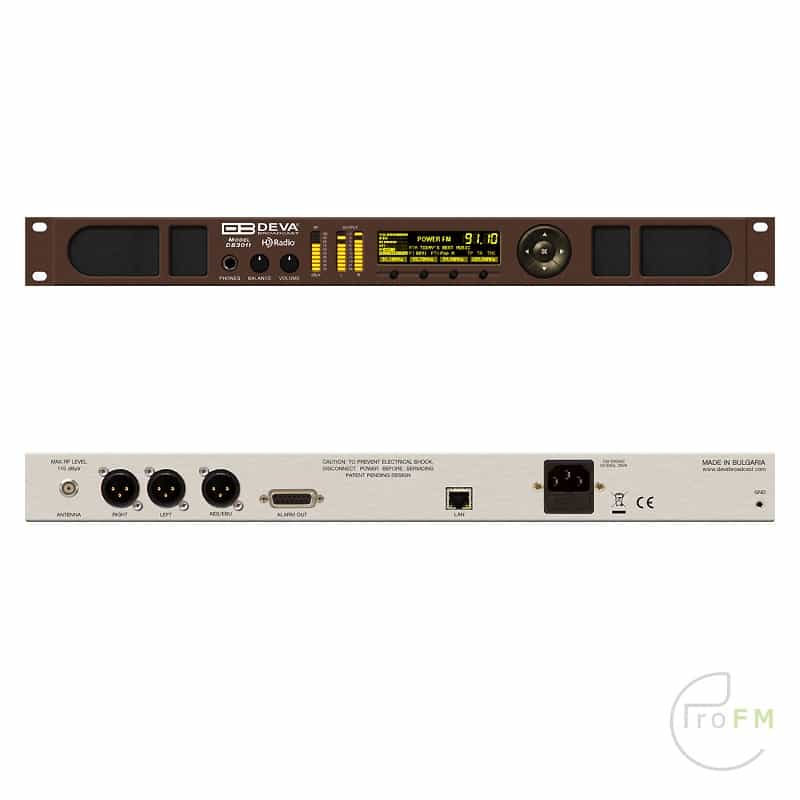

Deva Broadcast DB3011 FM/HD Radio & IP Audio Confidence Monitoring Receiver
The DB3011 offers brilliant acoustic characteristics with extensive feature set. The high-selective DSP-based tuner of the device allows the HD Radio Broadcast, FM and Internet stream of the station to be selected, monitored and listened to. This dedicated hardware will not only allow you to constantly monitor the sound of your station, but will also measure and store for future analysis the RF level and Left & Right Audio Levels. To enhance your performance, the DB3011 comes with a built-in FM RDS/RBDS Decoder and HD Radio PAD Decoder.
The unmatched in performance audio system of DB3011 is equipped with two speakers to reproduce mid- and high-range audio frequencies, and high-efficiency bass reflex speaker for high-quality sound. The DB3011 FM/HD Radio monitor provides full fidelity off-air monitoring and online stream simultaneously. The tool supports MP3, RTP and PCM IP audio codecs. The DB3011 allows users to toggle through the FM, HD Radio broadcast and Internet Radio stream to confirm audio presence and quality in live broadcast environments.
It fully meets all HD Radio performance certification criteria and specifications set forth by iBiquity Digital and is duly accompanied by their corresponding
HD Radio Certificate of Compliance.
| Decoder/Supported formats | MPEG-1 Layer 3 and raw PCM |
| Sample rates | 32, 44.1 and 48 kHz |
| Bit rates | All standard bit rates, including VBR |
| Metadata decoder | Station/Streamer’s ID, Song/Title, Stream Properties and Quality |
| Stream client | Shoutcast/Icecast compatible TCP/IP client |
| FM/HD Radio Tuner | |
| Tuning Range | 87.1 to 107.9 MHz, Frequency Agile |
| Tuning Step | 10, 20, 50, 100 kHz |
| Tuner Sensitivity | ≤ 10µV for 50dB monaural FM S/N |
| Antenna Port | BNC Connectors, 50Ω |
| Dynamic range | 100 dB |
| FM Demod | |
| IF Filter Bandwidth | Adjustable from 10kHz to 150kHz |
| Frequency Response | ±0.1 dB, 10 Hz to 86 kHz |
| Dynamic range | 90 dB |
| Stereo Decoder | |
| Frequency Response (L and R) | ±0.1 dB, 10 Hz to 15 kHz |
| SNR (Stereo) | 60 dB, 50 µs de-emphasis |
| THD | 0.1%, 10 Hz to 15 kHz, 50 µs de-emphasis |
| Stereo Separation | 50 dB, 50 Hz to 10 kHz, 50 µs de-emphasis |
| HD Radio | |
| Audio Programs | MPS, SPS1 to SPS7 |
| Quality Indicators | DAAI, CDNR, HD Radio lock |
| SIS Data | Station Slogan, Station Message, Station Long Name, Station Universal Short Name, FCCID |
| PAD Data | Artist, Title, Album, Genre |
| RDS Decoder | |
| Standards | European RDS CENELEC; United States RBDS NRSC |
| Error Correction & Counting | Yes |
| Decoder | PI, PS, PTY, AF, RT, RT , DI, MS, TA, TP, CT, ODA |
| Group Analyzer | Yes |
| BER Analyzer | Yes |
| Group Sequence Display | Yes |
| RDS RAW Data Display | Yes |
| Metering Accuracy | |
| RF Level | 1%, 0 to 100 dBµV, 1dB resolution |
| Audio | 1%, 5.0 to -50.0 dB, 0.1 dB resolution |
| Amplifier & Loudspeakers | |
| Configuration | Three-way with stereo mid/ high-frequency drivers & mono low-frequency driver |
| Power Output | 2 x 6W (HF) 12W (LF) with protective limiter |
| Crossover | 250Hz, 24dB/octave, Linkwitz-Riley |
| Distortion, HF Outputs | < 0.1% – 1kHz, 3W output (below limit threshold) |
| Distortion, LF Output | < 0.05% – 100Hz, 6W output (below limit threshold) |
| Noise | Better than -72 dB below full output |
| Volume Control | Mute to Full, Front panel, Rotary type |
| Balance Trim | ±32dB, Front panel, Rotary type |
| Peak Acoustic Level | 98dB SPL @ 2ft |
| Outputs | |
| Analog Audio Outputs (L, R) | 10 dBu, balanced XLR Connector |
| AES/EBU Output (L,R) | 5.0 Vp-p, 110Ω, balanced XLR Connector |
| Alarms | Programmable terminals on rear panel, Optoisolated |
| Headphone | 6,3mm (1/4″) Phone Jack |
| Network | |
| Connector | RJ-45 |
| Type | Ethernet |
| Device discovery | UPnP support |
| Measurements and Log Storage | |
| Storage | 2GB Build-in Memory Card |
| Data format | Text, CSV |
| Power Supply | |
| Voltage | 100-240V / 50-60 Hz / 25W |
| Connector | IEC320 |
| Size and Weight | |
| Dimensions (W;H;D) | 485 x 44 x 300 mm |
| Shipping Weight | 540 x 115 x 300 mm / 4.5kg |
