Description

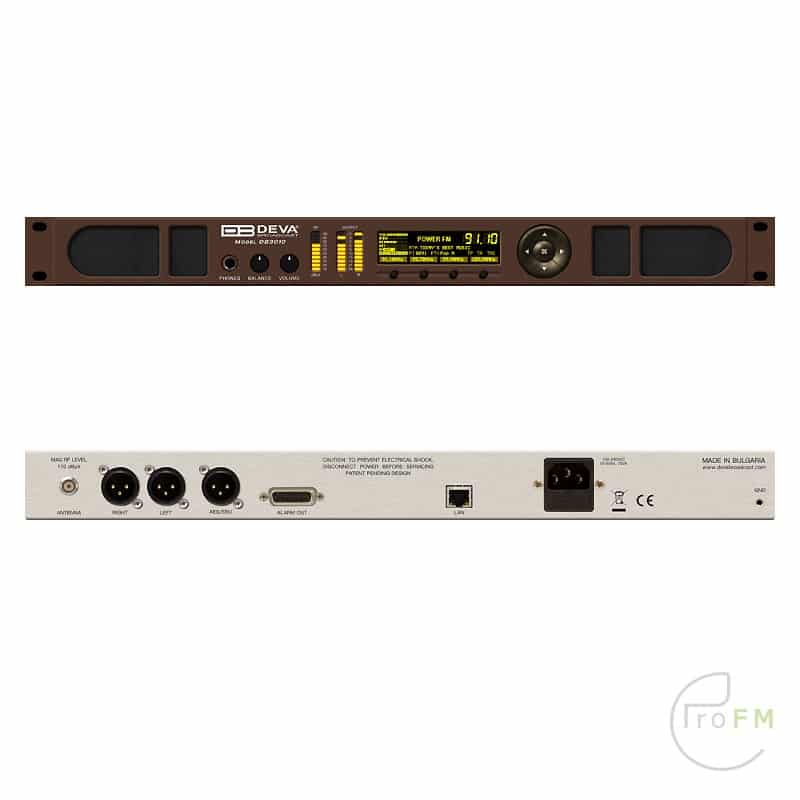

Deva Broadcast DB3010 FM Radio & IP Audio Confidence Monitoring Receiver
True to our strive for innovation and prepared to meet the evolving customer needs, Deva DB3010 FM Radio Receiver & IP Audio Monitoring line surveillance. The Deva DB3010 allows you to simultaneously monitor the radio station’s FM and online stream, ensuring flawless performance.There is also easy to switch between the HD and FM signal, Very user-friendly, mountable in a 19 inch rack, High quality of the sound and no distortion.
The Deva DB3010 supports MP3 and PCM ip audio codecs. The device is compatible with the most popular streaming media platforms, including Icecast and Shoutcast. channel selection, monitoring and listening through the high-quality speakers or headphones. With this special hardware, you can not only constantly monitor the sound of your station, but also measure and store the RF level, MPX deviation, left and right audio levels. To further enhance performance, the DB3010 comes with a built-in RDS/RBDS decoder. DB3010 provides local alarm options and online notifications in case of stream and internet loss or change in RF, left and right audio levels.
The DB3010 features an easy-to-read, high-resolution graphical OLED display and three ultra-bright LED bar graphs that allow you to read key signal parameters at a glance. With the Deva DB3010 you can easily keep an eye on the station, without having to be silent for long, the WEB interface is accessible with no more than a click and you can listen to the FM station as well as the online stream . The installation and operation of the device can be done via your PC, tablet or smartphone via a standard web browser. All operating systems are supported without compromise.
DB3010 is easy to use and guaranteed 24/7 line operation, the perfect addition to any radio station.
Features:
- FM Band 87.1 – 107.9 MHz DSP-based Tuner
- Up to 100 dBµV direct RF Antenna Input
- Selectable wide range IF filter bandwidth
- Selectable De-emphasis – 50µs and 75µs
- RDS and RBDS decoder with BER meter
- Wide angle, easy to read OLED display
- Very Intuitive Navigational Menu
- Quick Station access via 4 Presets
- Real Time Audio Program Streaming
- Full fidelity radio program monitoring in only 1RU
- Built-in WEB server
- Easy to use WEB interface
- Apple and Android devices support
- Restore Factory Parameters option
- Protected access to the device settings
- Easy Installation and Setup
- Wide operating voltage range: 100-240V AC
- Bright bar graph LED metering of the RF and Audio Levels
- Headphone output with front panel level control
And:
- Advanced Internet Radio Monitoring Capabilities
- Automatically decodes MP3 and PCM IP Audio
- Support of all standard bitrates and VBR as well
- SHOUTcast / ICEcast compatible
- Automatically displays live metadata for all standards
- Adjustable alarms for Stream Loss and Internet Loss
- DSP controlled, high efficient class-D switching amplifier
- Accurate 3-way speaker system
- Two mid/high frequency speakers for excellent stereo imaging.
- Active crossover for perfect separation between mid-range and bass bands
- Magnetically shielded drivers that allows placement next to video monitors
- SNTP for automatic synchronization of the built-in clock
- Level Adjustable, Balanced Analog Audio Outputs on XLR Connectors
- Professional AES/EBU Digital audio output
- LAN port for full TCP/IP remote control and monitoring
- Adjustable MIN/MAX alarms for RF, Left & Right Audio Levels
- Alarm dispatch via E-mail, SNMP ver.2C and GPO
- Firmware updates will ensure improved operation
- Multi-point screw fixings ensured 19″ aluminum case
| Decoder/Supported formats | MPEG-1 Layer 3, raw PCM |
| Sample rates | 32, 44.1 and 48 kHz |
| Bit rates | All standard bit rates, including VBR |
| Metadata decoder | Station/Streamer’s ID, Song/Title (artist and title or program name), Quality (streaming rate, encoding format, mono or stereo and original sampling rate) |
| Stream client | Shoutcast/Icecast compatible TCP/IP client |
| FM Radio Tuner | |
| Tuning Range | 87.1 to 107.9 MHz, Frequency Agile |
| Tuning Step | 10, 20, 50, 100 kHz |
| Tuner Sensitivity | ≤ 10µV for 50dB monaural FM S/N |
| Antenna Port | BNC Connectors, 50Ω |
| Internal Attenuator | 0, 10, 20 and 30 dB |
| Dynamic range | 100 dB |
| FM Demod | |
| IF Filter Bandwindth | Adjustable from 10kHz to 150kHz |
| Frequency Response | ±0.1 dB, 10 Hz to 86 kHz |
| Dynamic range | 90 dB |
| Stereo Decoder | |
| Frequency Response (L and R) | ±0.1 dB, 10 Hz to 15 kHz |
| SNR (Stereo) | 60 dB, 50 µs de-emphasis |
| THD | 0.1%, 10 Hz to 15 kHz, 50 µs de-emphasis |
| Stereo Separation | 50 dB, 50 Hz to 10 kHz, 50 µs de-emphasis |
| RDS Decoder | |
| Standards | European RDS CENELEC; United States RBDS NRSC |
| Error Correction & Counting | Yes |
| Decoder | PI, PS, PTY, AF, RT, RT , DI, MS, TA, TP, CT, ODA |
| Group Analyzer | Yes |
| BER Analyzer | Yes |
| Group Sequence Display | Yes |
| RDS RAW Data Display | Yes |
| Metering Accuracy | |
| RF Level | 1%, 0 to 100 dBµV, 1dB resolution |
| Audio | 1%, 5.0 to -50.0 dB, 0.1 dB resolution |
| Amplifier & Loudspeakers | |
| Configuration | Three-way with stereo mid/ high-frequency drivers & mono low-frequency driver |
| Power Output | 2 x 6W (HF) 12W (LF) with protective limiter |
| Crossover | 250Hz, 24dB/octave, Linkwitz-Riley |
| Distortion, HF Outputs | < 0.1% – 1kHz, 3W output (below limit threshold) |
| Distortion, LF Output | < 0.05% – 100Hz, 6W output (below limit threshold) |
| Noise | Better than -72 dB below full output |
| Volume Control | Mute to Full, Front panel, Rotary type |
| Balance Trim | ±32dB, Front panel, Rotary type |
| Peak Acoustic Level | 98dB SPL @ 2ft |
| Outputs | |
| Analog Audio Outputs (L, R) | 10 dBu, balanced XLR Connector |
| AES/EBU Output (L, R) | 5.0 Vp-p, 110Ω, balanced XLR Connector |
| Alarms | Programmable terminals on rear panel, Optoisolated |
| Headphone | 6,3mm (1/4″) Phone Jack |
| Network | |
| Connector | RJ-45 |
| Type | Ethernet |
| Device discovery | UPnP support |
| Measurements and Log Storage | |
| Storage | 2GB Build-in Memory Card |
| Data format | Text, CSV |
| Power Supply | |
| Voltage | 100-240V / 50-60 Hz / 25W |
| Connector | IEC320 |
| Size and Weight | |
| Dimensions (W;H;D) | 485 x 44 x 300 mm |
| Shipping Weight | 540 x 115 x 300 mm / 4.5kg |
