Description

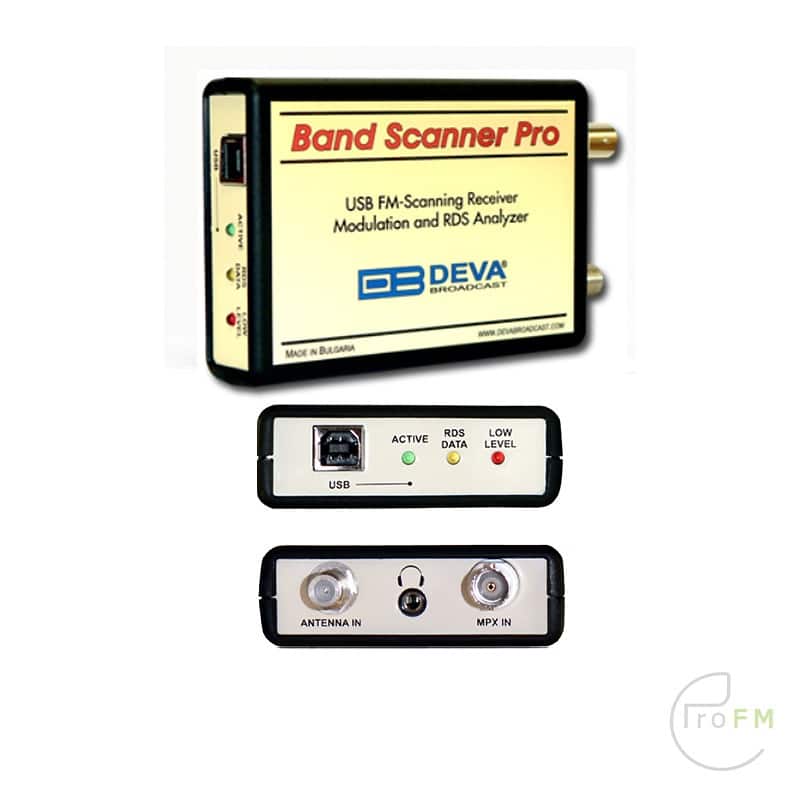

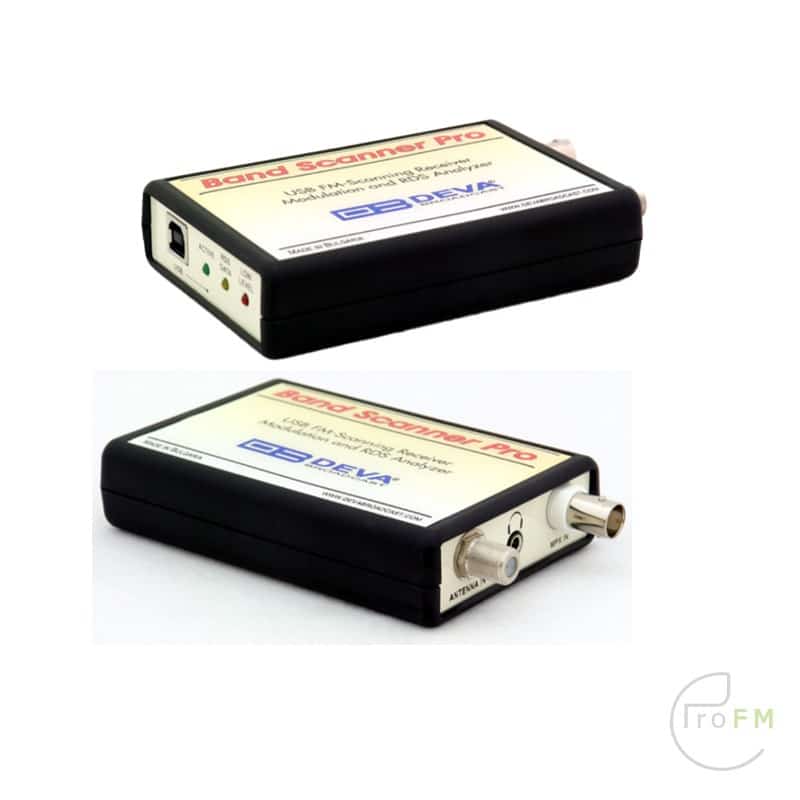

Deva Broadcast Band Scanner Pro FM Band Spectrum & Mod Analyzer
A pocket sized FM modulation analyser, with as many features as similar products, without the expensive price tag Every radio station needs one!!
The Band Scanner Pro can be used to evaluate FM broadcast band congestion and to log station identification parameters. The “”Band Scanner Pro”” can measure RF level, MPX deviation, Left & Right Audio levels, RDS and Pilot injection levels.
The system is powered by the USB port of any Windows PC. Supplied free of charge Windows software sweeps the receiver across the FM band, logging every carrier and generating a spectrum display of carrier level vs. frequency. It then analyzes each carrier and creates a station list. Stations with an RDS presence are further refined to show all the radio data groups being transmitted.
Its interface is like a portable radio: It may be tuned manually through the receiver screen or by double-clicking a point on the spectrum plot or an entry on the station list. Spectrum plots may be saved as jpg or bmp files. The RDS data error level is graphed in a separate window on the receiver screen. The program can be monitored with headphones plugged into a standard 1/8″” jack.
Highlights
- FM Band 87 – 108 MHZ Spectrum analyzer
- MPX, PILOT and RDS deviation meters
- External composite MPX and RDS input
- Built-in Stereo decoderLEFT and RIGHT level meters
- Auto search tuning Headphones audio output
- Full feature RDS and RBDS decoder
- RDS/RBDS Groups Detector and Analyzer
- RDS/RBDS Stream BER meter
- View playlists of the competitive stations
- Saving and exporting the playlists to Excel file
- Compare the signal strength to competitors and other stations
- Pocket size USB powered box. No external power supply required
- Tracking all the detailed histories saved in the RDS Data Log
- TCP/IP Remote management and control via Internet
- Remote audio listening and logging via Internet
| FM receiver | |
| FM frequency | 87.0-108.0 MHz |
| RDS sensitivity | 0 error at Vrf=-90dBµV, 4KHz RDS deviation, no modulation |
| Strong fields | AGC |
| RF level evaluation | ± 4dB from 20°C to 30°C, 20÷60dBµV without modulation |
| Dynamic | 0 to 54.6dBµV; 0 to 60dBµV with internal attenuator switched on |
| Attenuator | 6dB built-in, manual operation |
| Audio, MPX, Pilot, RDS levels | |
| Measurement validity | RF level preferably > 50dB |
| Multiplex level | Peak level displayed, 1000 samples over 1 second |
| Audio level | Peak level displayed, 1000 samples over 1 second |
| Pilot level | Mean peak level, 1000 samples over 1 second |
| RDS level | Mean peak level, 1000 samples over 1 second |
| Accuracy of MPX deviation display | ± 5KHz, ± 2KHz typ |
| Accuracy of audio level display | ± 5% |
| Accuracy of sub-carrier level displays | ± 10% typical and not guaranteed |
| FM Antenna input | |
| Connector | ‘F’ on rear panel |
| Impedance | 75 Ω |
| External attenuator | No |
| Stereo decoding | |
| Stereo separation | >20dB |
| Typical separation | Approximately 26dB to 35dB |
| RDS data decoding | |
| Standards | European RDS CENELEC and United States RBDS NRSC |
| Error Correction | Yes |
| Group counting | Yes |
| Error counting | Yes |
| AF decoding | Yes |
| CT (Time/Date) | Yes |
| PI, PTY, DI, MS | Yes |
| TA/TP | Yes |
| RT (Radio Text) | Yes |
| PS (Program Service name) | Yes |
| EON (Enhanced Other Networks information) | Yes |
| PTYN (Program TYpe Name) | Yes |
| SLC (Slow labelling Codes) | Yes |
| ODA (Open Data Applications) | Yes |
| GPS receiver | |
| Number of channels | 12 |
| Antenna | Pre-amplified, 5m of cable, magnetic |
| Connector | SMA, rear panel |
| Frequency program memories | |
| GPS Scheduler Capacity | 50 frequencies |
| FM Tuner Presets | 5 frequencies |
| Measurement storage | |
| Storage | LOG file |
| Data formats | Microsoft Excel compatible format (csv), Google Earth compatible KMZ |
| User interface | |
| Indicators | 4 LEDs, front panel |
| Headphone output | 1/8″ (3.5mm) phone jack, rear panel |
| Operating conditions | |
| Equipment operational between | 10° and 40°C |
| EMC immunity | 6V/m |
| Headphones output | |
| Connector | Stereo, 1/8″ (3.5mm) phone jack |
| Volume | Fixed |
| Communication | |
| Type | USB 2.0 compatible |
| Connector | B-type, front panel |
| Power Requirement | |
| Power supply | USB powered |
| Connector | B-type, front panel |
| Size and Weight | |
| Dimensions (W;H;D) | 74 x 26 x 109 mm |
| Shipping Weight | 230 x 70 x 172 mm / 0.5kg |
