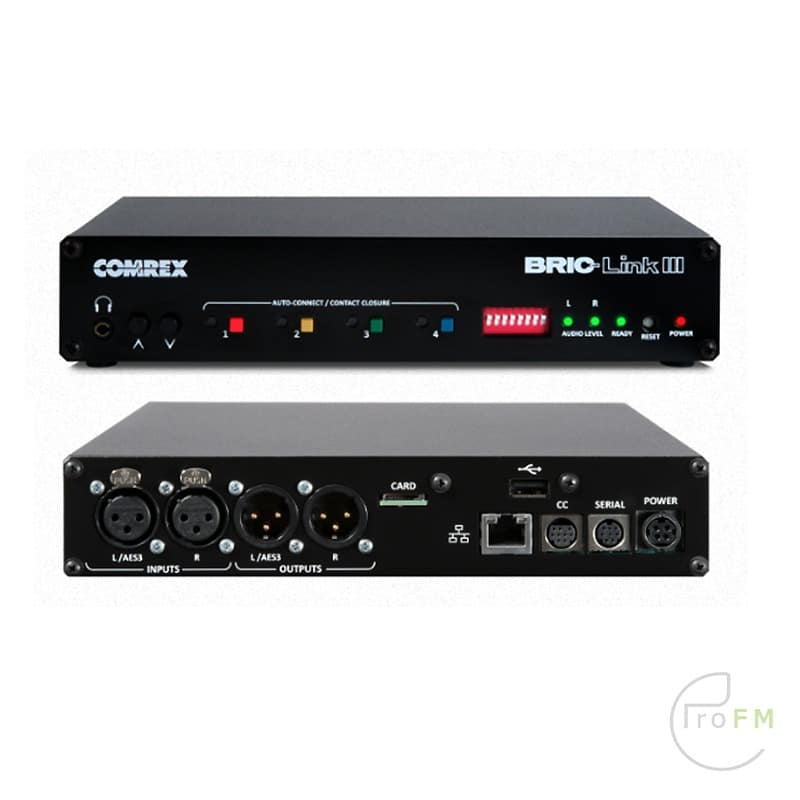

Comrex BRIC-Link III Stereo BRIC IP Codec

$2 287.91

Comrex BRIC-Link III Stereo BRIC IP Codec

The Comrex BRIC-Link III is a perfect very affordable solution for any fixed audio connection. After the Comrex BRIC-Link I and II, there is now the BRICK-Link III.
Now with a new, more powerful processor for improved performance and an improved front panel for easy contact closure and automatic connection.

Add to wishlist
Category: SKU: 609 Tags:

Description

Comrex BRIC-Link III Stereo BRIC IP Codec

The Comrex BRIC-Link III, like the Comrex BRIC-Link, is a low-cost, high-performance solution for audio-to-IP conversion. Leveraging many of the core technical aspects of Comrex’s successful remote broadcast ACCESS product line, BRIC-Link III provides for an elegant way of moving linear or compressed audio with very low delay. BRIC-Link III is very simple to use, and can be deployed over a wide range of IP links. While it carries an entry-level cost, BRIC-Link II maintains superb audio specifications and hardware reliability, making the system suitable for STLs and other mission-critical functions without the expense required of more full-featured codecs. BRIC-Link III is contained in a small desktop package. Two BRIC-Links may be installed to occupy 1U of rack space.

Perfect for home studios, stadiums, and studio-to-transmitter links, this Comrex codec packs a powerful punch as a cost-effective, rock-solid, point-to-point IP audio solution that you can trust to do its job. It’s the “set-it-and-forget-it box” that’s beautifully boring – in the best way possible.

Now with a new, more powerful processor for improved performance and enhanced front panel for easy contact closure firing and auto-connects.

Features

  • Small, compact half-rack chassis
  • CrossLock VPN for ultra-reliable transmission with low delay over even marginal IP networks
  • Ideal for studio-transmitter links (STLs) and other 24/7/365 mission-critical applications
  • AAC, HE-AAC, HE-AACv2, Opus, Linear PCM, FLAC, G.722, and G.711 encoding algorithms
  • Low delay: less than 25 mS in linear modes & less than 30 mS in FLAC Compatible with all Comrex ACCESS & BRIC-Link models
  • EBU 3326/SIP mode for third-party compatibility
  • Multiple operation modes – BRIC Normal (UDP), HTTP (Streaming Server, Icecast/SHOUTcast), TCP, Multistreaming, RTP, IP Multicast
  • HTML5 user interface for configuration & control
  • Enhanced front-panel for contact closure firing & configurable for auto-connections to other Comrex IP audio codecs
  • Free firmware updates
  • Top-notch technical support (English & Spanish)
  • 100% designed & built in the USA at our facility in Devens, Mass.
  • One year manufacturer’s warranty
  • Compatible with Gagl – a new audio service that turns your codec into a hub for up to five guests (optional subscription)
  • Switchboard for easy connections between Comrex IP audio codecs (optional add-on) Fleet Commander for controlling your Comrex IP audio codec fleet (optional add-on) HotSwap mode to set up a secondary backup cellular network (requires a Connect Modem)

Audio Connections:
Balanced stereo XLR line-level audio input (0dBu)
Balanced stereo XLR line-level audio output (0dBu)
AES3 XLR Digital audio input (through left XLR input when switched)
AES3 XLR Digital audio output (through left XLR output when switched)
Headphone jack

Other Connections:
Ethernet port (1000baseT)
Contact closures (9-pin mini DIN) (contact closure cable sold separately)
Serial port (8-pin mini DIN)
Power (4 pin connector for external 24VDC supply)
USB port*
Card slot (for future use)
*When used with a USB to Ethernet adapter (recommendation: Linksys USB3GIGV1), allows for connection of a second network
Audio Levels:
Balanced audio input level: 0 dBu
Balanced audio output level: 0 dBu
Full scale is 20 dB above nominal
L& R tri color LEDs display audio level

Power and Physical:
External supply (24VDC 20 Watts)
Size (8.5” W x 6.25” D x 1.75” H; 21.59 cm W x 15.88 cm H x 4.45 cm H)
Weight (2.16 lbs; 0.98 kg)

ALGORITHM ENCODE RATE NETWORK RATE BANDWIDTH DELAY
Linear 48 kHz Mono 768Kb/s 818Kb/s 22 kHz 25mS
Linear 48 kHz Stereo 1.536Mb/s 1.586Mb/s 22 kHz 25mS
Linear 44.1 kHz Mono* 705.6Kb/s 751.6Kb/s 20 kHz 27mS
Linear 44.1 kHz Stereo* 1.4112Mb/s 1.4572MB/s 20 kHz 27mS
Linear 32 kHz Mono* 512Kb/s 546Kb/s 15 kHz 31mS
Linear 32 kHz Stereo* 1.024Mb/s 1.058Mb/s 15 kHz 31mS
FLAC 48 kHz Mono ~540Kb/s ~572Kb/s 22 kHz 30mS
FLAC 48 kHz Stereo ~1.08Mb/s ~1.112Mb/s 22 kHz 30mS
FLAC 44.1 kHz Mono* ~500Kb/s ~530Kb/s 20 kHz 32mS
FLAC 44.1 kHz Stereo* ~1Mb/s ~1.03Mb/s 20 kHz 32mS
FLAC 32 kHz Mono* ~360Kb/s ~382Kb/s 15 kHz 36mS
FLAC 32 kHz Stereo* ~720Kb/s ~752Kb/s 15 kHz 36mS
AAC Mono 56-64Kb/s 72-80Kb/s 20 kHz 100mS
AAC Stereo 96-256Kb/s 112-272Kb/s 20 kHz 100mS
HE-AAC Mono 18-48Kb/s 26-56Kb/s 15-20 kHz 210mS
HE-AAC Stereo 64-96Kb/s 72-104Kb/s 20 kHz 210mS
HE-AAC Stereo v2 24-48Kb/s 32-56Kb/s 15 kHz 250mS
OPUS Mono 48kbps 48Kb/s 64Kb/s 20 kHz 46ms
OPUS Mono 56kbps 56Kb/s 72Kb/s 20 kHz 46ms
OPUS Mono 64kbps 64Kb/s 80Kb/s 20 kHz 46ms
OPUS Stereo 64kbps 64Kb/s 80Kb/s 20 kHz 46ms
OPUS Stereo 96kbps 96Kb/s 112Kb/s 20 kHz 46ms
OPUS Stereo 128kbps 128Kb/s 144Kb/s 20 kHz 46ms

Discription

Comrex BRIC-Link III Stereo BRIC IP Codec

The Comrex BRIC-Link III, like the Comrex BRIC-Link, is a low-cost, high-performance solution for audio-to-IP conversion. Leveraging many of the core technical aspects of Comrex’s successful remote broadcast ACCESS product line, BRIC-Link III provides for an elegant way of moving linear or compressed audio with very low delay. BRIC-Link III is very simple to use, and can be deployed over a wide range of IP links. While it carries an entry-level cost, BRIC-Link II maintains superb audio specifications and hardware reliability, making the system suitable for STLs and other mission-critical functions without the expense required of more full-featured codecs. BRIC-Link III is contained in a small desktop package. Two BRIC-Links may be installed to occupy 1U of rack space.

Perfect for home studios, stadiums, and studio-to-transmitter links, this Comrex codec packs a powerful punch as a cost-effective, rock-solid, point-to-point IP audio solution that you can trust to do its job. It’s the “set-it-and-forget-it box” that’s beautifully boring – in the best way possible.

Now with a new, more powerful processor for improved performance and enhanced front panel for easy contact closure firing and auto-connects.

Features

  • Small, compact half-rack chassis
  • CrossLock VPN for ultra-reliable transmission with low delay over even marginal IP networks
  • Ideal for studio-transmitter links (STLs) and other 24/7/365 mission-critical applications
  • AAC, HE-AAC, HE-AACv2, Opus, Linear PCM, FLAC, G.722, and G.711 encoding algorithms
  • Low delay: less than 25 mS in linear modes & less than 30 mS in FLAC Compatible with all Comrex ACCESS & BRIC-Link models
  • EBU 3326/SIP mode for third-party compatibility
  • Multiple operation modes – BRIC Normal (UDP), HTTP (Streaming Server, Icecast/SHOUTcast), TCP, Multistreaming, RTP, IP Multicast
  • HTML5 user interface for configuration & control
  • Enhanced front-panel for contact closure firing & configurable for auto-connections to other Comrex IP audio codecs
  • Free firmware updates
  • Top-notch technical support (English & Spanish)
  • 100% designed & built in the USA at our facility in Devens, Mass.
  • One year manufacturer’s warranty
  • Compatible with Gagl – a new audio service that turns your codec into a hub for up to five guests (optional subscription)
  • Switchboard for easy connections between Comrex IP audio codecs (optional add-on) Fleet Commander for controlling your Comrex IP audio codec fleet (optional add-on) HotSwap mode to set up a secondary backup cellular network (requires a Connect Modem)
Specifications

Audio Connections:
Balanced stereo XLR line-level audio input (0dBu)
Balanced stereo XLR line-level audio output (0dBu)
AES3 XLR Digital audio input (through left XLR input when switched)
AES3 XLR Digital audio output (through left XLR output when switched)
Headphone jack

Other Connections:
Ethernet port (1000baseT)
Contact closures (9-pin mini DIN) (contact closure cable sold separately)
Serial port (8-pin mini DIN)
Power (4 pin connector for external 24VDC supply)
USB port*
Card slot (for future use)
*When used with a USB to Ethernet adapter (recommendation: Linksys USB3GIGV1), allows for connection of a second network
Audio Levels:
Balanced audio input level: 0 dBu
Balanced audio output level: 0 dBu
Full scale is 20 dB above nominal
L& R tri color LEDs display audio level

Power and Physical:
External supply (24VDC 20 Watts)
Size (8.5” W x 6.25” D x 1.75” H; 21.59 cm W x 15.88 cm H x 4.45 cm H)
Weight (2.16 lbs; 0.98 kg)

ALGORITHM ENCODE RATE NETWORK RATE BANDWIDTH DELAY
Linear 48 kHz Mono 768Kb/s 818Kb/s 22 kHz 25mS
Linear 48 kHz Stereo 1.536Mb/s 1.586Mb/s 22 kHz 25mS
Linear 44.1 kHz Mono* 705.6Kb/s 751.6Kb/s 20 kHz 27mS
Linear 44.1 kHz Stereo* 1.4112Mb/s 1.4572MB/s 20 kHz 27mS
Linear 32 kHz Mono* 512Kb/s 546Kb/s 15 kHz 31mS
Linear 32 kHz Stereo* 1.024Mb/s 1.058Mb/s 15 kHz 31mS
FLAC 48 kHz Mono ~540Kb/s ~572Kb/s 22 kHz 30mS
FLAC 48 kHz Stereo ~1.08Mb/s ~1.112Mb/s 22 kHz 30mS
FLAC 44.1 kHz Mono* ~500Kb/s ~530Kb/s 20 kHz 32mS
FLAC 44.1 kHz Stereo* ~1Mb/s ~1.03Mb/s 20 kHz 32mS
FLAC 32 kHz Mono* ~360Kb/s ~382Kb/s 15 kHz 36mS
FLAC 32 kHz Stereo* ~720Kb/s ~752Kb/s 15 kHz 36mS
AAC Mono 56-64Kb/s 72-80Kb/s 20 kHz 100mS
AAC Stereo 96-256Kb/s 112-272Kb/s 20 kHz 100mS
HE-AAC Mono 18-48Kb/s 26-56Kb/s 15-20 kHz 210mS
HE-AAC Stereo 64-96Kb/s 72-104Kb/s 20 kHz 210mS
HE-AAC Stereo v2 24-48Kb/s 32-56Kb/s 15 kHz 250mS
OPUS Mono 48kbps 48Kb/s 64Kb/s 20 kHz 46ms
OPUS Mono 56kbps 56Kb/s 72Kb/s 20 kHz 46ms
OPUS Mono 64kbps 64Kb/s 80Kb/s 20 kHz 46ms
OPUS Stereo 64kbps 64Kb/s 80Kb/s 20 kHz 46ms
OPUS Stereo 96kbps 96Kb/s 112Kb/s 20 kHz 46ms
OPUS Stereo 128kbps 128Kb/s 144Kb/s 20 kHz 46ms

Additional information

Weight 2 kg
Dimensions 30 × 20 × 10 cm
