Description

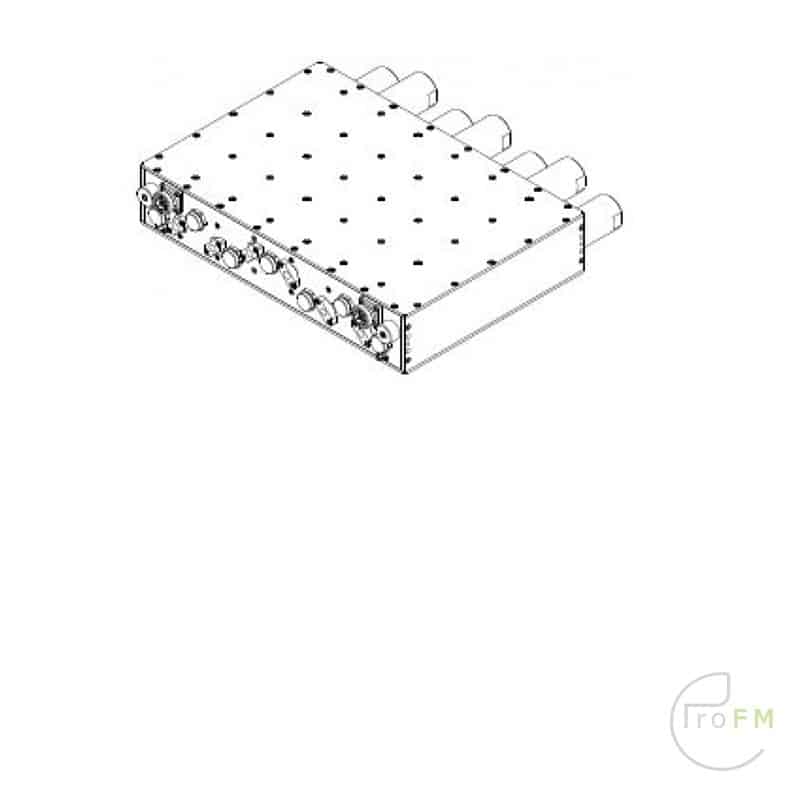

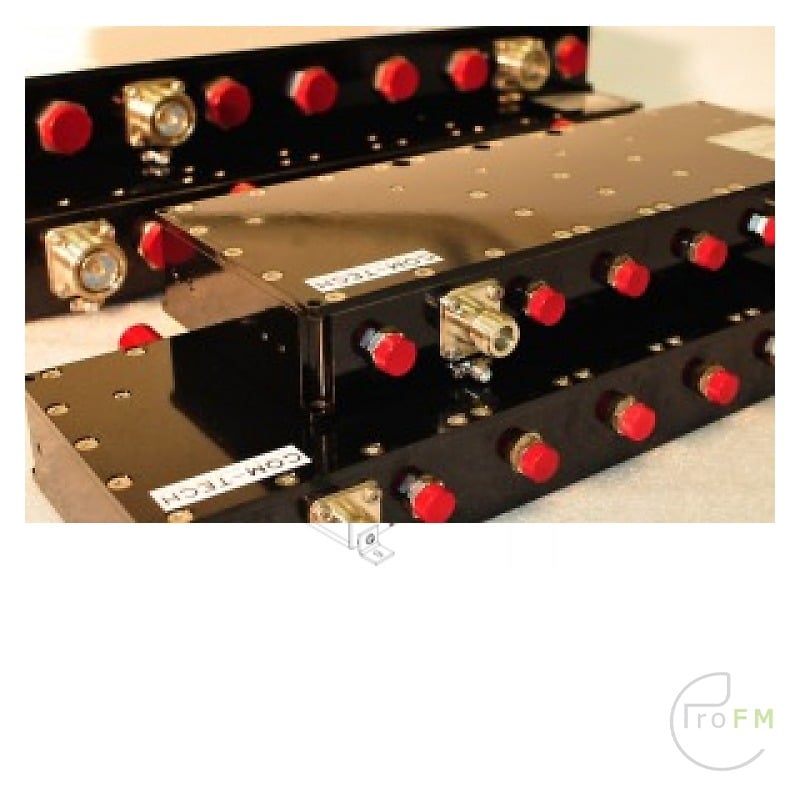

COM-TECH DAB Band Filter
Solid state transmitters produce frequency emissions that must be removed by band-pass filters. COM-TECH band pass filters are designed to meet all transmission masks (DVB-T / DVB-T2, ATSC 1.0 / ATSC 3.0, ISDB-T, DAB, etc.). They are also the main components of the Combiners:
The COM-TECH band-pass filters are specially made for use in the DAB band 174-240 Mhz and suitable for local/regional use of DAB in the Netherlands.
COM-TECH bandpass filters are designed, developed and manufactured with the very latest technology to ensure the maximum reliability and the most advanced performance: highest voltage safety margins, lowest insertion loss, maximum compactness, exceptional mechanical stability and durability.
CHARACTERISTICS
- XLine: elliptical response with extracted poles
- DualCross: double universal joint
- Cross Coupling
- All Pole
- Hairpin (VHF B.I filters)
- EVA mode (VHF B.I and FM filters)
- SIR (VHF B.III filters)
- Full band tunability
- Temperature stabilization
- DC Short
- Probe output monitor
- Modular connector system
- 10 year warranty
Can be supplied in a non-critical or critical version (please indicate this when ordering)
OPTIONS
19″ Rack built-in
N – 7/16 Connection
Code / Revision: A-TS6D80R / A
Order / Cavity Size 6-Pole / 80 mm
Frequency Range / Bandwidth: 174-240 MHz / 1.54 MHz
Temperature Stability: < 1 kHz/K
Max Operating Temperature (Body): 65°C (149°F)
Environmental Conditions :-5 to 55°C ( 23 to 131°F), IP60
Dimensions / Weight (1) 334x230x512 mm / 19 kg (23 lb.)
Output Monitor Probe :SMA Female
Connectors (2) 2x 32 mm Series
D-PC32C – NFemale
D-PC32E – 7/16 Female
D-PC32G – 7/8 Fastline Socket
D-PC32H – EIA FastLine Flange
Tuning Code / Bandwidth:T-6R.03 / 1.54 MHz
Max RMS Input Power (3): 400 W
Efficiency (Typ.):73%
Insertion Loss 174 MHz 240 MHz
C.F. < 0.95 dB < 1.10 dB
±0.77 MHz < 2.20 dB < 2.50 dB
Selectivity C.F. ± 0.97 MHz > 4 dB
C.F. ± 1.75 MHz > 32 dB
C.F. ± 2.20 MHz > 40 dB
C.F. ± 3.0 MHz > 52 dB
Harmonic Attenuation > 36 dB up to 500 MHz
Return Loss / VSWR > 26 dB / < 1.11
Group Delay Variation < 500 ns
