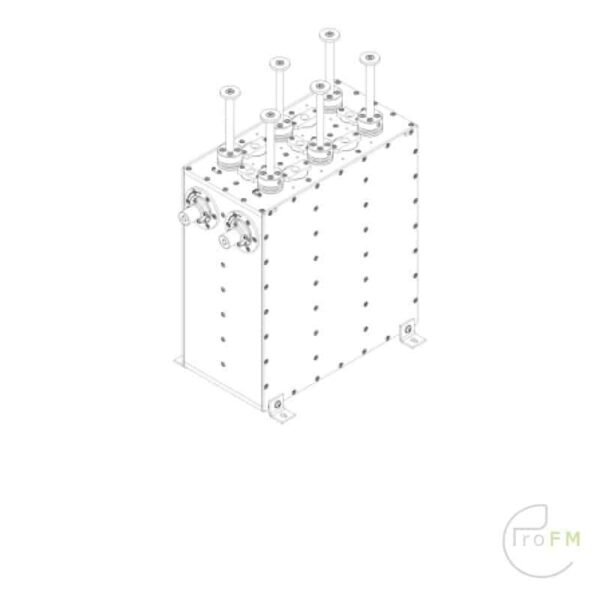

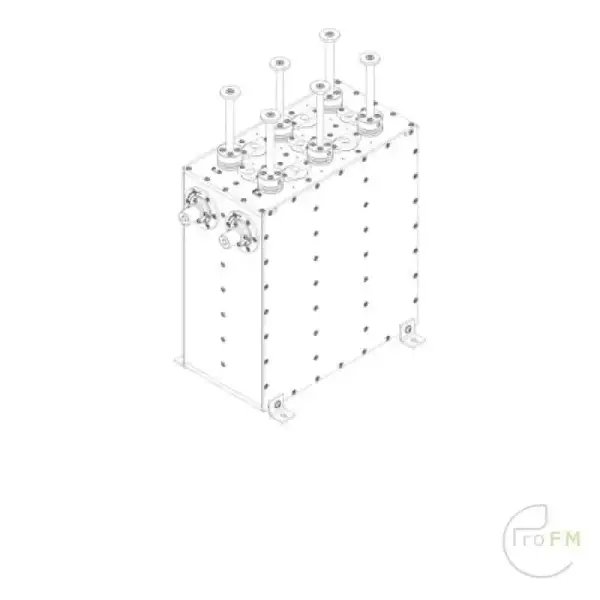

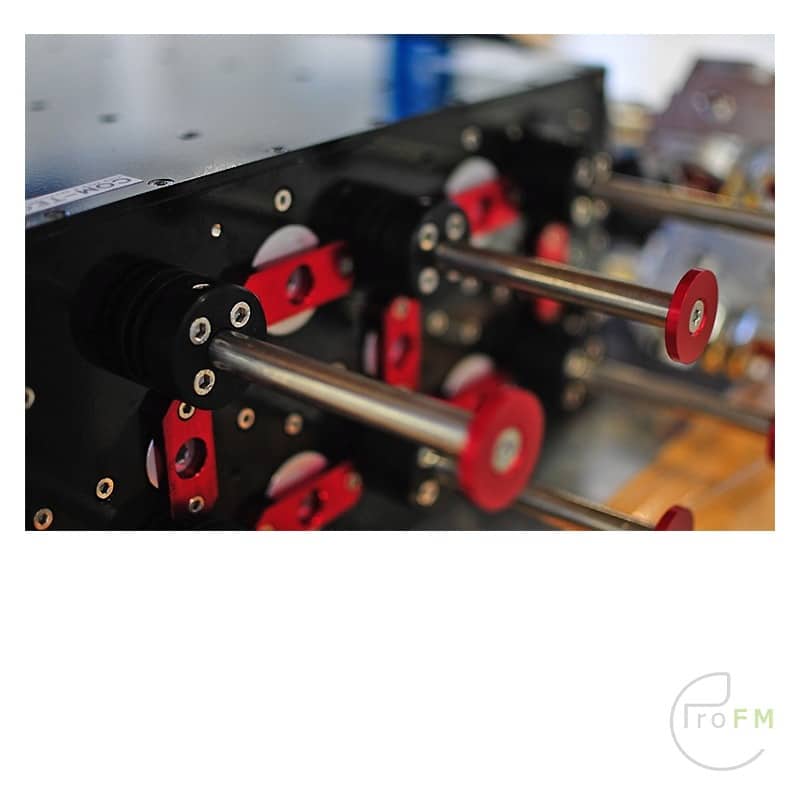

COM-TECH TS6D80R DAB 6-Pole 80 mm Band pass Filter

COM-TECH TS6D80R, a state-of-the-art 6-pole DAB 80 mm Bandpass Filter meticulously designed to excel within the DAB band spectrum of 174-240 MHz. This compact yet powerful filter is engineered to deliver exceptional performance, ensuring optimal signal quality and reliability for various applications.

At the core of its design lies a robust 6-pole configuration, complemented by an 80 mm cavity size, setting a new standard for efficiency and precision in bandpass filtering. The incorporation of DualCross technology, featuring double cross coupling, enhances signal isolation and minimizes interference, guaranteeing pristine transmission quality.

Engineered with SIR Design (Signal Integrity Restoration), the TS6D80R ensures uncompromised signal fidelity, maintaining the integrity of transmitted data. Its full band tunability provides flexibility in adjusting to specific frequency requirements, while temperature stabilization mechanisms ensure consistent performance under varying environmental conditions.

Equipped with essential features such as DC short protection and an output monitor probe, this filter prioritizes operational safety and monitoring convenience. Furthermore, its interchangeable connector system facilitates seamless integration into diverse setups, offering compatibility with various equipment configurations.

For enhanced versatility, optional accessories including a 19’’ rack shelf and heat sinks are available, enabling streamlined installation and optimized heat dissipation for prolonged operational durability. Additionally, the inclusion of an N – 7/16 connector option further expands connectivity possibilities, catering to a wider range of system requirements.

In essence, the COM-TECH TS6D80R represents a pinnacle of engineering excellence, redefining standards for bandpass filtering in DAB applications. With its advanced features and uncompromising performance, it stands as a testament to innovation and reliability in the realm of telecommunications technology.

FEATURES

•  6-Pole; 80 mm Cavity Size
•  DualCross: Double Cross Coupling
•  SIR Design
•  Full Band Tunability
•  Temperature Stabilization
•  DC Short
•  Output Monitor Probe
•  Interchangeable Connector System

OPTIONS

•  19’’ Rack Shelf
•  Heat Sinks
• N – 7/16 Connector

Code / Revision: A-TS6D80R / A
Order / Cavity Size 6-Pole / 80 mm
Frequency Range / Bandwidth: 174-240 MHz / 1.54 MHz
Temperature Stability: < 1 kHz/K
Max Operating Temperature (Body): 65°C (149°F)
Environmental Conditions :-5 to 55°C ( 23 to 131°F), IP60
Dimensions / Weight (1) 334x230x512 mm / 19 kg (23 lb.)
Output Monitor Probe :SMA Female
Connectors (2) 2x 32 mm Series
D-PC32C – NFemale
D-PC32E – 7/16 Female
D-PC32G – 7/8 Fastline Socket
D-PC32H – EIA FastLine Flange

Tuning Code / Bandwidth:T-6R.03 / 1.54 MHz
Max RMS Input Power (3): 400 W
Efficiency (Typ.):73%
Insertion Loss 174 MHz 240 MHz
C.F. < 0.95 dB < 1.10 dB
±0.77 MHz < 2.20 dB < 2.50 dB
Selectivity C.F. ±  0.97 MHz > 4 dB
C.F. ± 1.75 MHz > 32 dB
C.F. ± 2.20 MHz > 40 dB
C.F. ± 3.0 MHz > 52 dB
Harmonic Attenuation > 36 dB up to 500 MHz
Return Loss / VSWR > 26 dB / < 1.11
Group Delay Variation < 500 ns
