Description
BW Broadcast ModMon Encore FM & MPX Modulation Monitor
There are Modulation monitors, there are MPX decoders, there are metering devices, there are test sets – but never all in one package – beforenow. The ultimate modulation monitor.
The ModMon encore combines the technology from our award winning receivers and combines it with our lab reference grade audio processing technology to bring you a single box capable of analysing both FM and baseband signals. If you are doing anything with an FM or MPX signal – this box is what you need.
Fitted with two time-aligned and highly sensitive DSP tuners, ModMon Encore has an unfair advantage over its competition: it’s the only modulation monitor that can DSP crossfade between two radio stations without retuning, or compare two MPX inputs such as audio processors or stereo generators at the touch of a button – all instantaneously and inaudibly. It’s a tool that helps you make decisions based on research, not just research yourself.
SUPERIOR SOUND
The BW Broadcast ModMon Encore FM & MPX Modulation Monitor two of our award-winning tuners, alongside our reference-grade audio processing technology, to bring you a single box capable of analyzing both FM and baseband signals. Built-in ‘FM Stereo Improvement’ reduce noise while retaining stereo separation for the ultimate in sound quality and performance.
STRONG AND SENSITIVE
Both industry-leading DSP tuners combine incredible sensitivity and superior strength, allowing you to pull in weak signals from distant broadcasts, or handle strong signals at the transmitter site without overloading. Regardless of the scenario, put ModMon Encore to work out in the field and it will handle incoming signals with such confidence and ability it will exceed all your expectations.
BEAUTY AND BRAINS

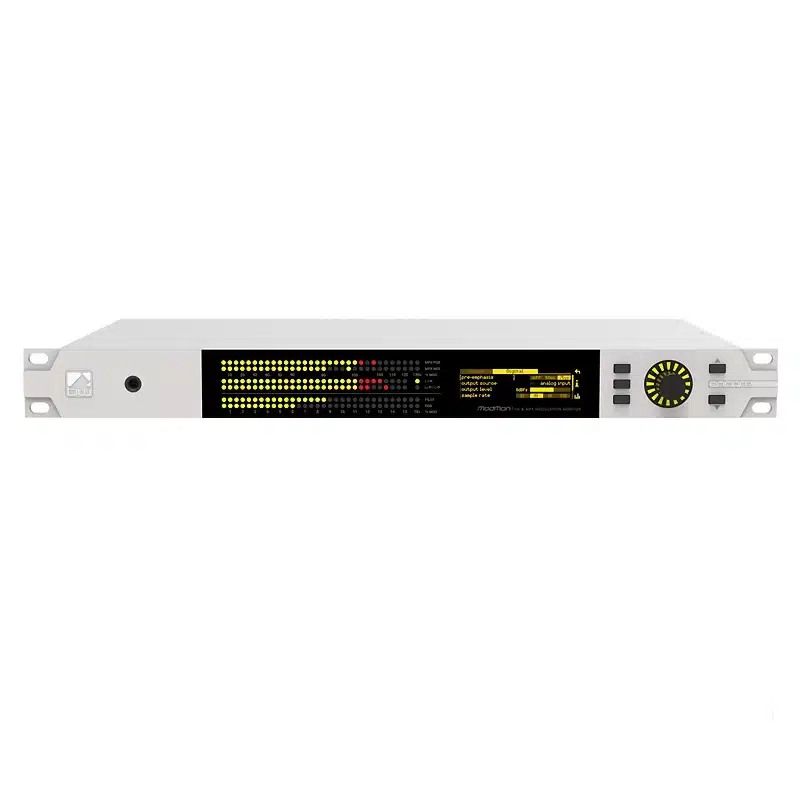

The front panel is machined from a single block of aluminum with a high contrast OLED displaying the menu system and tri-coloured LED blocks providing clear, real-time metering. The 3 silicone soft keys work dynamically with the display to control the most significant functions at the time and the two illuminated buttons switch inaudibly and instantaneously between each DSP tuner.
Features
● FM, MPX & RDS Decoding, metering & analysi
● Monitor two FM frequencies and / or two MPX inputs simultaneously
● Always on’ front panel high resolution LED meters
● Stereo (MPX) generation & peak limiting
● RDS encoder (UECP compliant)
● Plan B Silence Detection and Source Switching
● HTML5, FTP, Telnet, SNMP & RS232 Remote Control with IP streaming
● A flexible and versatile action and alerts system
SPECIFICATIONS MODMON
FM TUNER (Dual)
Tuning range: 65-108MHz in 50kHz or 100kHz steps
De-emphasis :75us. 50us or Off
IF bandwidth: 56kHz – 311kHz dynamic or fixed
SNR (Mono/Stereo):-79dB / -60dB
THD (Mono/ Stereo) : 0.01 l % / 0.16%
Stereo Separation : >50dB
Adjacent/ alternate channel rejection: 70dB / 74dB
ANALOG INPUT
Nom. input level : +4 dBu
Max input level: +24dBu
Connectors: XLR balanced EMI surpressed
A/D conversion: 24 bit
Distorsion: <0,01%
ANALOG OUTPUT
Analog output level : 0 to 24dBu adjustable
Connectors: XLR balanced EMI surpressed
A/D conversion: 24 bit
DIGITAL INPUT
Sampling rate: 32-192 kHz (MPX over AES ready
Connectors: XLR balanced EMI surpressed
Nominal input level: -20 dBfs
DIGITAL OUTPUT
Sampling rate: 32-192 kHz (MPX over AES ready
Connectors: XLR balanced EMI surpressed
Level: -32 – 0 dBfs adjustable
MPX / RDS
Ouput level: 0 – 12 dBu adjustable
MPX Outputs: 2 x BNC EMI surpressed
D/A conversion: 192KHz. internally oversampled
Stereo seperation: >60 dB 20Hz – 15 kHz
MPX Inputs: 2 x BNC EMI surpressed
A/D conversion: 192KHz. internally oversampled
Pilot output: BNC software switched with MPX2 output
Remote Control
Connectors: Serial, USB A, USB B, RJ45
Protocols: HTTP (browse, mobile, API), SNMP, TELNET, FTP, SMTP, RS232
OTHER
Power: 90 – 260 VAC, 50/60Hz, 25W IEC connector
Environmental: -20ºC – 50ºC / 0-90% RH, non-condensing
Size (mm) 44mm x 482mm x 200mm 1HE 19 Inch
Weight: 1,6 Kg
Warranty: 4 year limited warranty
