BW Broadcast DSPXmini Encore AM, FM Audio Processor

BW Broadcast DSPXmini Encore AM, FM Audio Processor
Don’t be fooled by the name, the only thing ‘mini’ about our 4-band audio processor is the price. Now capitalizing on the power of our latest platform, the DSPXmini Encore is one truly versatile box, with improved sound quality and additional features such as RDS encoding and audio backup. Forget ‘mini’, this is audio processing to the max!
With it’s flexible hardware and firmware, you can select between optimised processing for FM, AM,and digital radio, including internet radio streams,DAB and HD radio.
The multi-band AGC corrects and equalises a wide range of input audio levels, while the peak limiters ensure your broadcast has tightly controlled peak levels. A stereo encoder, and RDS encoder, Shoutcast client and server for streaming in and out of the box, Plan-B audio backup switching and a sophisticated actions and triggers monitoring system complete the package.

INTELLIGENT BACKUP AND MONITORING
With PlanB silence detection and source switching as standard, DSPXmini Encore can automatically revert to auxiliary sources or onboard flash memory if the signal problems arise, keeping you on-air at all times. Our latest remote control and monitoring software allows you to interact with your processor from anywhere in the world and even listen in over an IP connection in real-time.

FLEXIBLE AND ALERT
Our all new intuitive alarms and events system allows you to assign intelligent actions to any rear panel (digital or analog) GPIO event.
Take complete control over each event by mapping it to a set of do this when and do this now actions for the most versatile and customizable alert configuration possible.

BEAUTY AND BRAINS

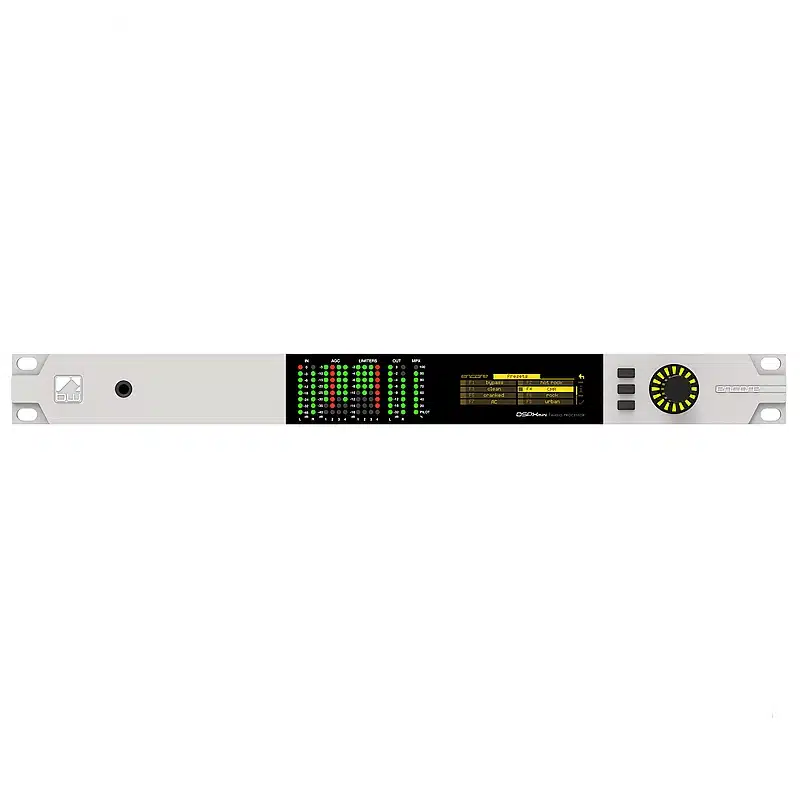

The front panel is machined from a single block of aluminum with a high contrast OLED displaying the menu system and tri-coloured LED blocks providing clear, real-time metering.
The 3 silicone soft keys work dynamically with the display to control the most significant functions and the electronics are all wrapped up into our lightweight brushed aluminum chassis.

Key Features

• A tri-mode 4 band broadcast processor for FM, AM and digital radio
• Dozens of expertly created factory presets
• Wide ranging RMS levelling pulls up low level and tames hot signals effortlessly
• Stereo ( MPX ) generation & peak limiting
• RDS encoder (UECP compliant)
• Plan B Silence Detection and Source Switching
• EHTML5, FTP, Telnet, SNMP & RS232 Remote Control with IP streaming

PROCESSING
AGC : 4 band
Limiters: 4 band
Clippers :2 band
Composite processor: yes

ANALOG INPUT
Nom. input level: +4 dBu
Max input level : +24 dBu
Connectors : XLR balanced EMI surpressed
A/D conversion : 24 bit
Distortion: <0.01%

ANALOG OUTPUT
Analog output : 0-24 dBu adjustable
Connectors : XLR balanced EMI surpressed
D/A conversion: 24 bit

DIGITAL INPUT (AES/EBU)
Sampling rate: 32-192 kHz (MPX over AES ready)
Connector: XLR balanced EMI surpressed
Nominal input level: -20 dBfs

DIGITAL OUTPUT (AES/EBU)
Sampling rate: 32-192 kHz (MPX over AES ready)
Connector: XLR balanced EMI surpressed
Level: -32 – 0 dBfs adjustable

MPX / RDS
Output level: 0 – 12 dBu adjustable
MPX outputs: 2 x BNC EMI surpressed
D/A conversion: 192KHz, internally oversampled
Stereo seperation: >60 dB 20Hz – 15 kHz
MPX inputs: 2 x BNC EMI surpressed
A/D conversion: 192KHz, internally oversampled
Pilot output: BNC software switched with MPX2 output

Remote Control
Connectors: Serial, USB A, USB B, RJ45
Protocols: HTTP (browse, mobile, API), SNMP, TELNET, FTP, SMTP, RS232

OTHER
Power: 90 – 260 VAC, 50/60Hz, 25W IEC connector
Environmental: -20ºC – 50ºC / 0-90% RH, non-condensing
Size (mm) 44mm x 482mm x 200mm 1HE 19 Inch
Weight: 1,6 Kg
Warranty: 4 year limited warranty
