Description

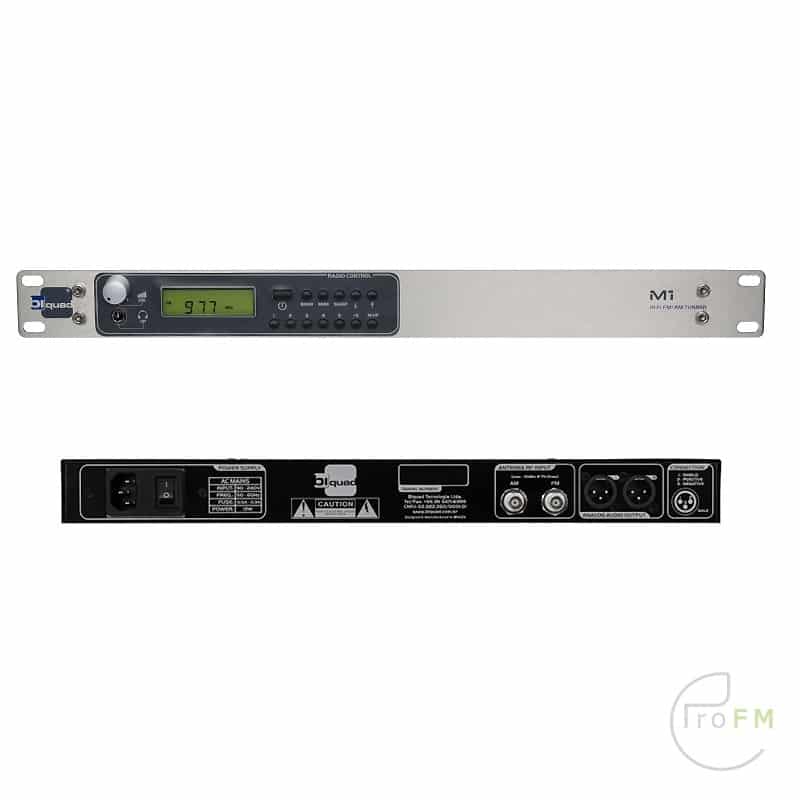

Biquad Tuner M1 Radio Receiver, AM/FM, 40 Memories
The Biquad Tuner M1 Radio Receiver, a professional AM/FM tuner with exceptional features tailored for precision monitoring and high-fidelity audio reception. Boasting a digital display and an impressive capacity of up to 40 storage memories for each band, the Tuner M1 is designed to deliver superior performance in various professional applications.
The electronic circuit of the Tuner M1 is meticulously engineered to ensure optimal linearity in audio demodulation and fidelity in frequency response, making it the go-to choice for demanding audio monitoring tasks. Equipped with balanced audio outputs featuring XLR connectors and AM/FM antenna inputs with BNC connectors, this tuner offers seamless integration into professional setups.
At the forefront of the Tuner M1 is a high-powered front amplifier that delivers exceptional sound fidelity, complemented by an intuitive LCD display and user-friendly buttons for effortless parameter adjustment. With the ability to store up to 40 different stations on both AM and FM bands, users can easily access their preferred channels with convenience.
Additionally, the Tuner M1 comes equipped with automatic frequency search capabilities and a convenient sleep function, further enhancing its versatility and usability. Whether used in radio stations for monitoring high-fidelity audio or in general sound applications, the Tuner M1 excels in delivering professional-grade performance.
Provided in a rack standard format with a sleek brushed stainless steel panel, the Tuner M1 not only offers top-notch functionality but also adds a touch of sophistication to any setup. Elevate your audio monitoring experience with the Biquad Tuner M1 Radio Receiver – the ultimate choice for professionals seeking precision, reliability, and exceptional sound quality.
RADIO TUNER
- Automatic or manual tuning;
- FM antenna: 75 Ohms, unbalanced;
- AM antenna: 75 Ohms, unbalanced;
- 10 memories for AM / 10 memories for FM;
- Sleep function adjustable from 10 to 90 min.
FM SESSION
- Frequency range: 87.5MHz to 109.0MHz;
- IF frequency: 10.7MHz;
- Sensitivity 30dB: <=10uV;
- S/N for 1mV: >= 60dB;
- FI Rejection: >=80dB;
- THD for 1mV@40KHz deviation: <=1%;
- Stereo separation@1kHz: >=45dB;
- Auto Scan Sensitivity: <=50uV;
- AM suppression / 1mV input level /30%modulation: >=50dB.
PHONE AMPLIFIER
- Type: Stereo with volume control on the front panel;
- Minimum impedance: 8 Ohms;
- Maximum power 8 Ohms: 4W per channel;
- Frequency response: 10Hz to 30kHz (0.1dB).
AUDIO OUTPUTS
- Type: Balanced stereo +4dBu @ 100% modulation;
- Impedance: < 150 Ohms;
- Minimum load impedance: >=600 Ohms;
- Connectors: XLR Male;
- Selectable de-emphasis: 50/75us on audio and headphone output via an internally configurable jumper.
- Discription
-
Biquad Tuner M1 Radio Receiver, AM/FM, 40 Memories
The Biquad Tuner M1 Radio Receiver, a professional AM/FM tuner with exceptional features tailored for precision monitoring and high-fidelity audio reception. Boasting a digital display and an impressive capacity of up to 40 storage memories for each band, the Tuner M1 is designed to deliver superior performance in various professional applications.
The electronic circuit of the Tuner M1 is meticulously engineered to ensure optimal linearity in audio demodulation and fidelity in frequency response, making it the go-to choice for demanding audio monitoring tasks. Equipped with balanced audio outputs featuring XLR connectors and AM/FM antenna inputs with BNC connectors, this tuner offers seamless integration into professional setups.
At the forefront of the Tuner M1 is a high-powered front amplifier that delivers exceptional sound fidelity, complemented by an intuitive LCD display and user-friendly buttons for effortless parameter adjustment. With the ability to store up to 40 different stations on both AM and FM bands, users can easily access their preferred channels with convenience.
Additionally, the Tuner M1 comes equipped with automatic frequency search capabilities and a convenient sleep function, further enhancing its versatility and usability. Whether used in radio stations for monitoring high-fidelity audio or in general sound applications, the Tuner M1 excels in delivering professional-grade performance.
Provided in a rack standard format with a sleek brushed stainless steel panel, the Tuner M1 not only offers top-notch functionality but also adds a touch of sophistication to any setup. Elevate your audio monitoring experience with the Biquad Tuner M1 Radio Receiver – the ultimate choice for professionals seeking precision, reliability, and exceptional sound quality.
- Specifications
-
RADIO TUNER
- Automatic or manual tuning;
- FM antenna: 75 Ohms, unbalanced;
- AM antenna: 75 Ohms, unbalanced;
- 10 memories for AM / 10 memories for FM;
- Sleep function adjustable from 10 to 90 min.
FM SESSION
- Frequency range: 87.5MHz to 109.0MHz;
- IF frequency: 10.7MHz;
- Sensitivity 30dB: <=10uV;
- S/N for 1mV: >= 60dB;
- FI Rejection: >=80dB;
- THD for 1mV@40KHz deviation: <=1%;
- Stereo separation@1kHz: >=45dB;
- Auto Scan Sensitivity: <=50uV;
- AM suppression / 1mV input level /30%modulation: >=50dB.
PHONE AMPLIFIER
- Type: Stereo with volume control on the front panel;
- Minimum impedance: 8 Ohms;
- Maximum power 8 Ohms: 4W per channel;
- Frequency response: 10Hz to 30kHz (0.1dB).
AUDIO OUTPUTS
- Type: Balanced stereo +4dBu @ 100% modulation;
- Impedance: < 150 Ohms;
- Minimum load impedance: >=600 Ohms;
- Connectors: XLR Male;
- Selectable de-emphasis: 50/75us on audio and headphone output via an internally configurable jumper.
