Description

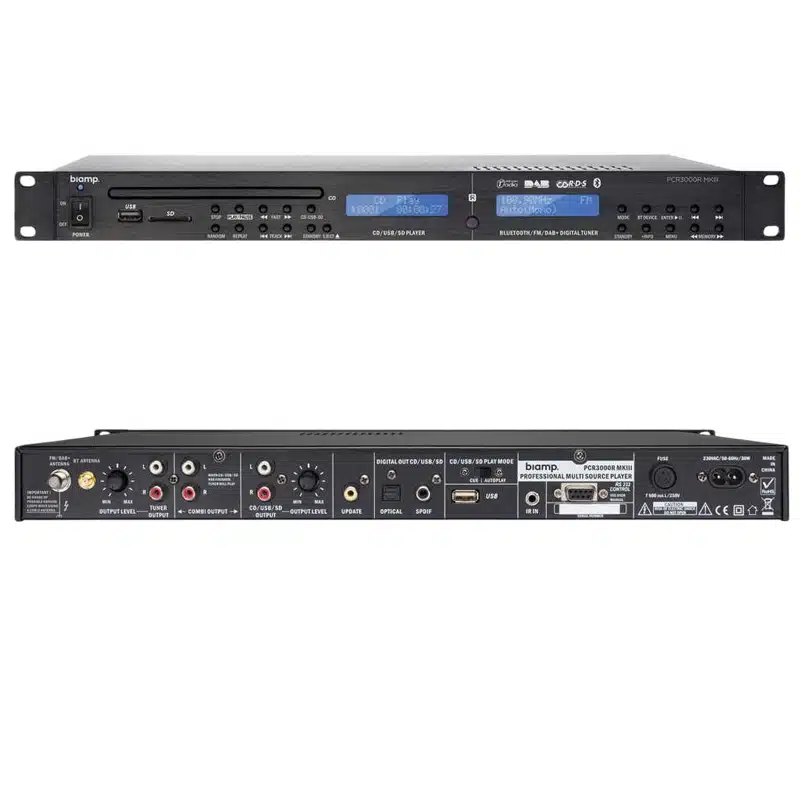

Biamp PCR3000RMKIII Media Player
The PCR3000RMKIII is a professional multisource CD/USB/SD-card music player with integrated FM RDS and DAB+ tuner. In addition, the unit also includes an internal Bluetooth receiver which can be connected to any music source, smartphone or computer equipped with a Bluetooth connection. Furthermore PCR3000RMKIII is equipped with multiple independent analog outputs, coaxial and optical digital output for the CD/USB/SD player and a RS232-port for use with integrated control systems.
There is a USB and SD-card slot on the front and another USB-input on the back of the unit (to prevent removal of the memory stick). The unit has an operation mode switch at the back to choose between Auto Play and Cue. When the PCR3000RMKIII is in Auto Play mode, the unit will always start playing automatically when it’s powered on. In Cue mode the unit will always wait for a play command after power is restored or another track is selected.
The analog output gain level can be adjusted at the back in order to match the output level of other audio sources. Additionally there is a combined output available. This output will play the music from the CD/USB/SD player by default. When there is no media playing from the CD/USB/SD player, the output will automatically switch to the tuner (FM or DAB+) output after a few seconds, provided that the tuner is not in standby mode.
The PCR3000RMKIII can be controlled by the front panel controls, the included infrared remote or RS232-commands.
Key Features
- Balanced and unbalanced analog outputs
- Coaxial and optical digital outputs
- RS232 port
- Includes internal Bluetooth receiver
- 5-year warranty
- Not available in U.S. and Canada
| GENERAL | |
| Height | Rack units: (1U=44 mm) |
| Width | Rack Mounting: 19 inches (483 mm) |
| Depth | Depth (build in): 12 inches (305 mm) Depth (incl front): 12.40 inches (315 mm) |
| Weight | 10.14 lbs (4.60 kg) |
| POWER | |
| Power | Power Supply: 230 VAC |
| CONFERENCING | |
| USB | 32 GB up to 9999 songs |
| Impedance | Applicable low impedance |
| NOTES | |
| Specification Notes | DAB Tuner / DAB + supported file format MP3, WMA Supported bluetooth profiles A2DP, AVRCP and SPP Other/digital outputs 1 x optical + 1 x coaxial RS232 control FM Tuner CD SD card 32 GB up to 9999 songs Bluetooth Unbalanced outputs 2 x RCA + COMBI RCA IR remote included Applicable in 100V |
- Description
-
Biamp PCR3000RMKIII Media Player
The PCR3000RMKIII is a professional multisource CD/USB/SD-card music player with integrated FM RDS and DAB+ tuner. In addition, the unit also includes an internal Bluetooth receiver which can be connected to any music source, smartphone or computer equipped with a Bluetooth connection. Furthermore PCR3000RMKIII is equipped with multiple independent analog outputs, coaxial and optical digital output for the CD/USB/SD player and a RS232-port for use with integrated control systems.
There is a USB and SD-card slot on the front and another USB-input on the back of the unit (to prevent removal of the memory stick). The unit has an operation mode switch at the back to choose between Auto Play and Cue. When the PCR3000RMKIII is in Auto Play mode, the unit will always start playing automatically when it’s powered on. In Cue mode the unit will always wait for a play command after power is restored or another track is selected.
The analog output gain level can be adjusted at the back in order to match the output level of other audio sources. Additionally there is a combined output available. This output will play the music from the CD/USB/SD player by default. When there is no media playing from the CD/USB/SD player, the output will automatically switch to the tuner (FM or DAB+) output after a few seconds, provided that the tuner is not in standby mode.
The PCR3000RMKIII can be controlled by the front panel controls, the included infrared remote or RS232-commands.
Key Features
- Balanced and unbalanced analog outputs
- Coaxial and optical digital outputs
- RS232 port
- Includes internal Bluetooth receiver
- 5-year warranty
- Not available in U.S. and Canada
- Specifications
-
GENERAL Height Rack units: (1U=44 mm) Width Rack Mounting: 19 inches (483 mm) Depth Depth (build in): 12 inches (305 mm)
Depth (incl front): 12.40 inches (315 mm)Weight 10.14 lbs (4.60 kg) POWER Power Power Supply: 230 VAC CONFERENCING USB 32 GB up to 9999 songs Impedance Applicable low impedance NOTES Specification Notes DAB Tuner / DAB +
supported file format MP3, WMA
Supported bluetooth profiles A2DP, AVRCP and SPP
Other/digital outputs 1 x optical + 1 x coaxial
RS232 control
FM Tuner
CD
SD card 32 GB up to 9999 songs
Bluetooth
Unbalanced outputs 2 x RCA + COMBI RCA
IR remote included
Applicable in 100V
