Description

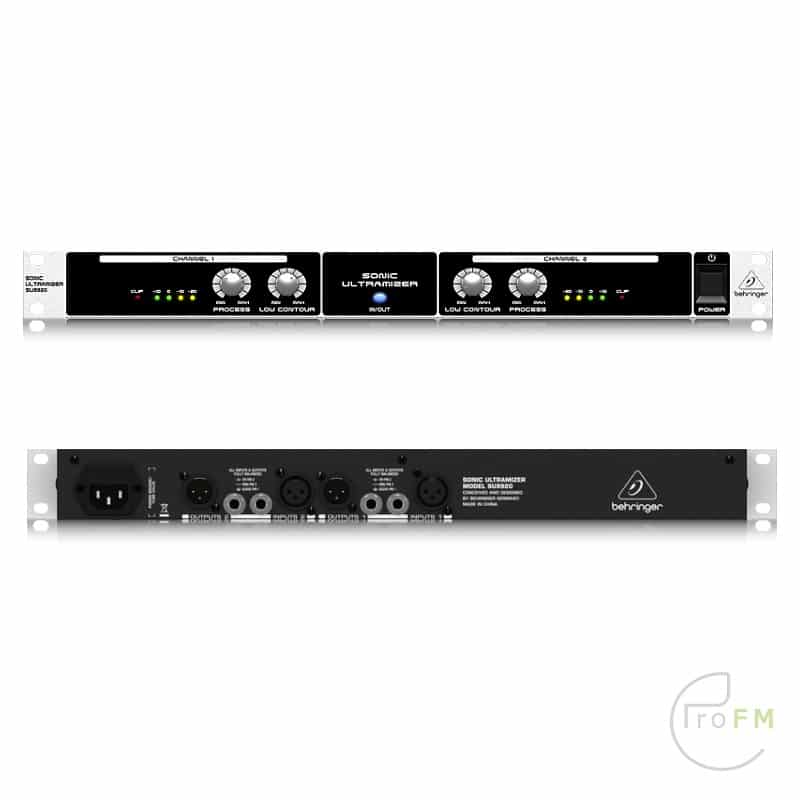

Behringer Sonic Ultramizer SU9920 Stereo Enhancement Processor
The SU9920 is a professional signal processor that can improve the presence and liveliness of audio signals of all types, giving your music the added dimension that will make your performances and recordings come alive! The SU9920 does this through the use of a special dynamic filter and a 3-band phase delay algorithm to add clarity, depth and punch – without any unnatural side effects.
Since the SU9920 has 2 independent channels, you can process a stereo signal or 2 mono signals, such as a bass guitar in one channel – and a keyboard, vocal or guitar in the other. The ultimate sound enhancement tool for home and professional recording studios, DJ systems, PA systems and web-casting, the SONIC ULTRAMIZER SU9920 is also an amazing addition to your 5.1 surround and hi-fi setups.
Why You Need the SU9920
Music is made up of very complex sound waves that cover a wide range of frequencies and harmonics. And no matter how good your sound system is reproducing music, in all its intricate detail, is an art that often requires a little something extra – something we call “magic”.
The SU9920 provides a healthy dose of sonic magic using 2 simple controls (Process and Low Contour) to compensate for the phase and amplitude differences that occur between these frequencies during amplification – anomalies that can take the luster off an otherwise perfect performance. The SU9920 lets you always dial in the perfect sound, both in the studio – and in front of a live audience.
Surprisingly affordable and easy to use, the SU9920 brings your music alive with articulate mids, sparkling highs and ultra-tight low end!
Specifications
Dimensions: 44.5mm x 483mm x 217mm / 1.8” x 19” x 8.5” (H x W x D)
Weight: 2.2kg / 4.84lbs
Inputs:
Connections: XLR Sockets and 1/4″ Stereo Jacks
Type: Balanced
Input impedance: 20kΩ balanced, 10kΩ unbalanced
Input Levels: +4 dBu (nominal), +22 dBu (maximum)
Outputs:
Connections: XLR Socets and 1/4″ Stereo Jacks
Type: Servo Balanced
Output impedance: 60Ω balanced, 60Ω unbalanced
Max. Output level: +22dBu
Enhancer Section:
Type: 3-Band phase delay and dynamic filter
Process control: Max. 12 dBu @ 5 kHz
Low Contour Control: Max. 12 dBu @ 50kHz
System data:
Frequency range: 25 Hz to 50kHz, +/-3 dB
Signal to noise ratio: >95 dB, unweighted, 20Hz to 20kHz
Distortion (THD + N): 0.05 typ. @ +4 dBu, 1 kHz (In/Out)
Crosstalk: >75 dB
Power supply:
Mains voltage: 230 VAC, 50 Hz
Power consumption: Approx. 12 W
Fuse:
100-120 VAC: T 250 mA, H 250 V
220-240 VAC: T 125 mA, H 250 V
