Description

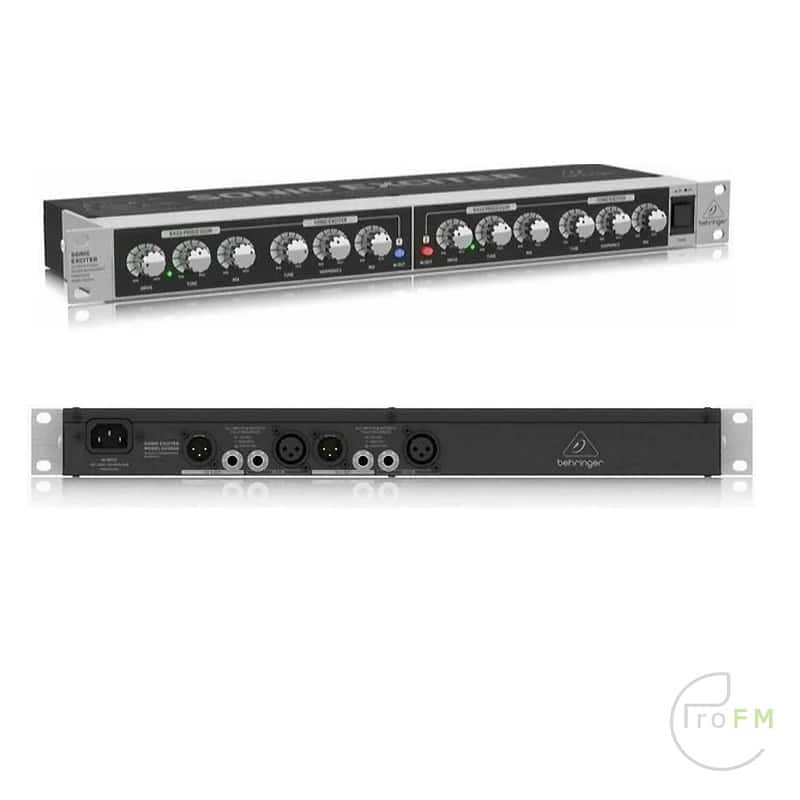

Behringer SONIC EXCITER SX3040 V2 Stereo Sound Enhancement Processor/Signal processor.
The SONIC EXCITER SX3040 stereo sound enhancement processor gives your music the additional dimension you’ve been looking for. This processor is the ultimate sound improvement tool for home recording studios, DJ systems, keyboard racks, web-casting plus 5.1 and hi-fi setups.The SX3040 provides increased clarity and punchy bottom end to your sound system. It improves the natural brightness through harmonic enhancement and adds density to the low frequencies through phase compensation. Dedicated Drive, Tune and Mix controls for each channel enable fast and easy setup as well as ultimate sound improvement. Fasten your seat belt and take off with a new sound dimension!
Features
Dramatically improves your sound by adding clarity, dimension and depth
Produces natural brightness through harmonic enhancement and tighter bass with increased punch through phase compensation
Professional and home recording studios: brings out the full sound spectrum of your tracks, mixdown and mastering
PA, nightclub and DJ systems: improves the performance of any sound system by adding sparkling high end and super-tight bass without the need for additional speakers or amps
Churches and houses of worship: dramatically increases voice intelligibility and your music gains presence
Guitar, bass and keyboard rack: improves articulation and restores cutting power often lost in miking and amplification
Broadcasting and webcasting: adds loudness and “”live presence”” even on small car or computer speakers
5.1 and hi-fi setups: DVDs become stunningly lifelike and the spatial dimension of your sound system increases dramatically
Dedicated Tune, Harmonics and Mix controls per channel on the Sonic Exciter section
Dedicated Drive, Tune and Mix controls per channel on the Bass Processor section
Servo-balanced inputs and outputs with ¼”” TRS and gold-plated XLR connectors
High-quality components and exceptionally rugged construction ensure long life
Conceived and designed by BEHRINGER Germany
Specifications
Input connections: 2 x XLR, balanced 2 x 1/4” TRS, balanced
Input Impedance: Balanced: 22k Ohms Unbalanced: 11k Ohms
Nominal input level: +4dBu
Maximum input level: +22dBu
CMRR: Typically >55dB at 1kHz
Output connections: 2 x XLR, balanced 2 x 1/4” TRS, balanced
Output impedance: 100 Ohm (balanced and unbalanced)
Maximum output level: +21dBu
Frequency response: 10Hz to 50kHz, +/-1dB
Signal to noise ratio: >-93dBu, 22Hz to 22kHz, unweighted
THD:
Channel-to-Channel Cross Stitch: Bass Processor:
Type: Frequency-selective processor with phase shift
Filter cutoff frequency: 50Hz – 145Hz, adjustable
Sonic Exciter:
Type: Harmonic processor
Filter Cut-Off Frequency: 1.2kHz – 11kHz, adjustable
Power supply: Auto-ranging, 100-240V, 50/60Hz
Power consumption: 15W
Connection to the mains: Standard IEC connection
Dimensions: 1.7” x 19” x 5.9” / 44mm x 483mm x 150mm (H x W x D)
Weight: 3.3lbs / 1.5kg
Product code: SX3040 V2
