Description

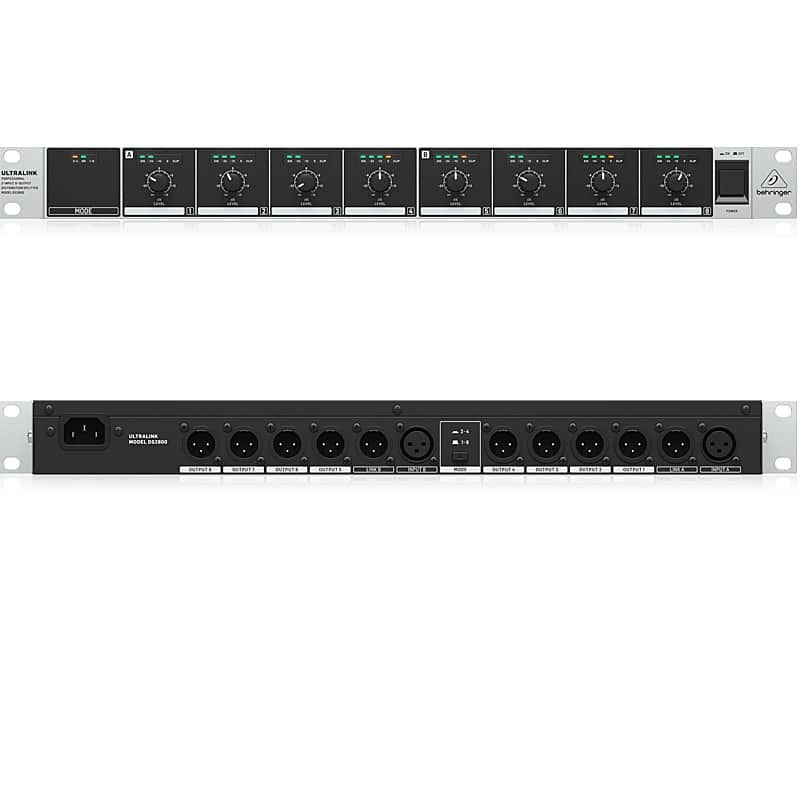

Behringer DS2800 Professional 2-Input 8-Output Distribution Splitter
The Behringer DS2800 is a Professional 2-Input, 8-Output Distribution Splitter designed for commercial sound applications. The DS2800 features dual mode operation, with 2-In/4-Out and 1-In/8-Out modes, for versatile distribution and splitting options. 2 ultra-low noise line inputs distribute signal to 8 output channels.
Each output channel features its own independent level control, whilst each XLR connection is gold-plated. As well as independent level controls, each output also features a 5-segment LED meter providing visual feedback regarding signal activity for each channel. An internal switch-mode power supply allows for voltages from 100V up to 240V, providing noise-free audio and low power consumption.
Features
- Ultra-flexible and easy-to-use distribution splitter for commercial sound applications
- Dual mode 2-In / 4 out or 1-in / 8-out operation
- 2 ultra-low noise line inputs with separate link output connectors
- 8 output channels each featuring independent level controls
- 5-segment LED meters for each output to indicate signal activity
- Servo-balanced inputs and outputs with gold-plated XLR connectors
- Internal switch-mode power supply (100 – 240 V~) for noise-free audio and low power consumption
Specifications
| Input A / B | XLR, balanced |
| Input impedance | 10 kΩ balanced, 6.6 kΩ unbalanced |
| Max. input level | +21 dBu |
| CMRR | 64 dB typ. @ 1 kHz |
| Link A / B | XLR, balanced |
| Output 1 – 8 | XLR, balanced |
| Max. output level | +28 dBu |
System
| Frequency response | 10 Hz to 75 kHz (±3 dB) |
| Dynamic range | 117 dB |
| Distortion (THD) | 0.001% typ. @ +4 dBu, 1 kHz, Gain 1 |
| Crosstalk | < -77 dB @ 1 kHz |
| Signal-to-noise ratio | 20 Hz to 20 kHz, > 97 dB @ 0 dBu |
Function Controls / Switches
| Output level | -∞ … + 15 dB, variable |
| Mode | 1 – 8 / 2 – 4, switchable |
Displays
| Power ON | LED indicator |
| Output level | 5-digit LED display: sig / -24 / -12 / 0 / clip |
| Mode | Status LED Indicator |
Power Supply
| Type | Switch-mode autorange power supply |
| Mains voltage | 100-240 V, 50/60 Hz |
| Power consumption | 15 W |
| Mains connection | Standard IEC receptacle |
Dimension / Weight
| Dimensions (H x W x D) | 44 x 483 x 148 mm (1.7 x 19.0 x 5.8″) |
| Weight | 1.6 kg (3.5 lbs) |
