Description

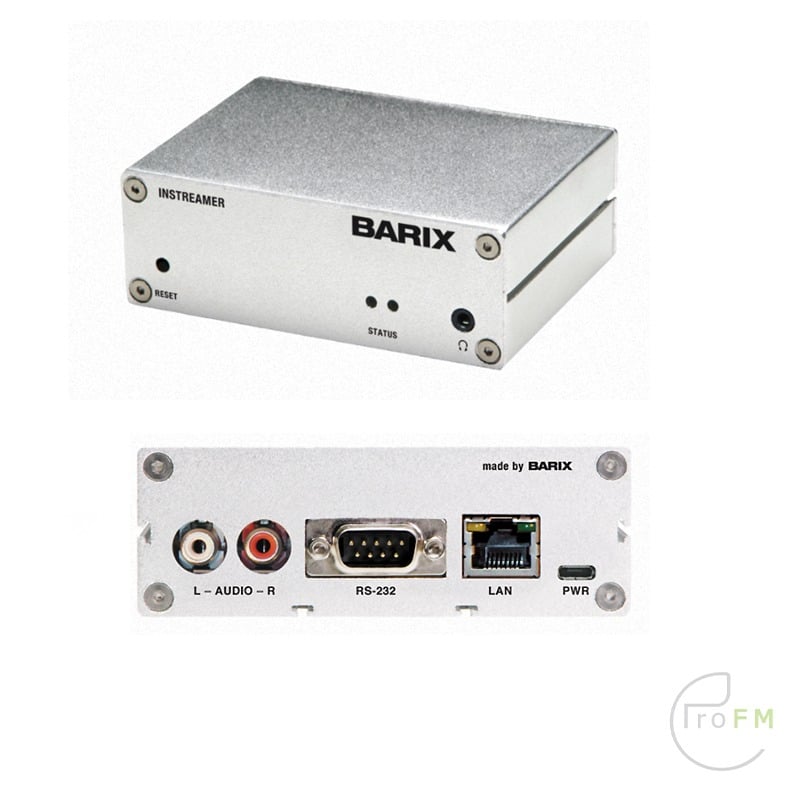

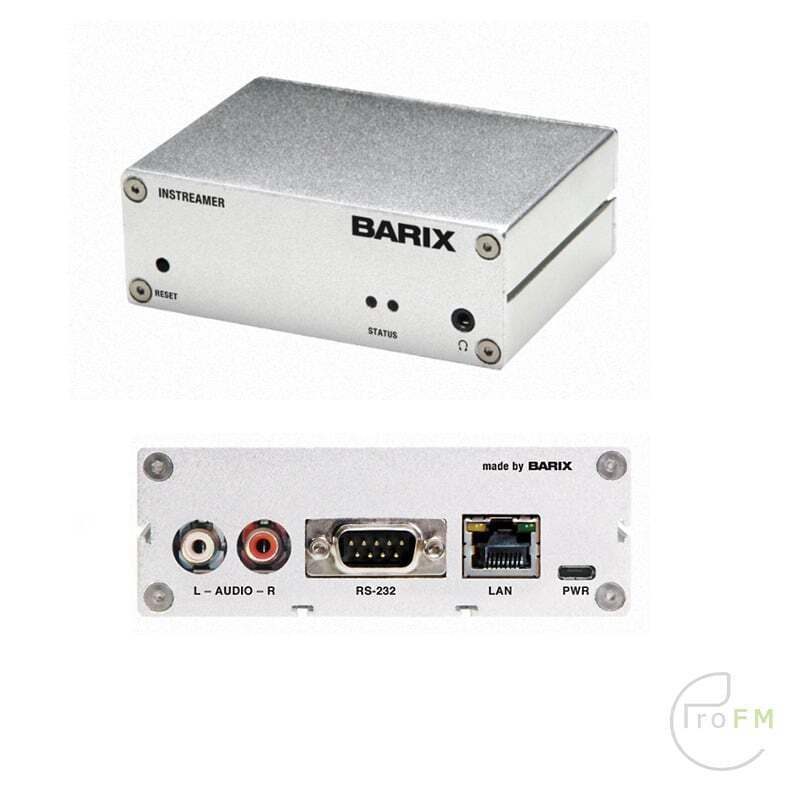

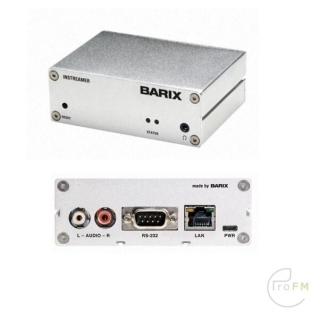

Barix 100 Instreamer Classic EU Audio over IP codec
Network audio encoder for commercial, industrial hand security applications With Barix you can bring your audio into the network. The Barix Instreamer or MP3 audio encoder is an intelligent streaming component that converts analog and digital audio into MP3 which it then transmits into the network. This is a great way to bring your analog audio into your network audio distribution setup.
Think of the Instreamer IP audio encoder as a counterpart to the Exstreamer since it brings the sound into the network, rather than bringing the sound out! Has inputs for all sound sources for IP audio encoding from tuners to record, tape, MD and CD players Monitors and controls the directly attached equipment Is easily controlled using your standard web browser (PC, palm, etc.) or IR remote control (Barix accessory) Applications IP Audio Encoding Residential, commercial and professional audio encoding / decoding (Exstreamer)
Barix streaming technology is also utilized by leading system integrators for custom client solutions and radio stations.
Applications
- Live IP Audio Encoder for Streaming Applications
- Source Encoder for IP Audio Distribution Applications
- Background Music and Music-on-Hold encoder for VoIP Applications
- Shoutcast/Icecast Source Encoder
- Low latency IP Audio Encoder for multichannel applications
- Confidence Monitoring and Vox Switch for Broadcast Applications
- Budget STL (with the Extreamer) studio to transmitter link
Features
- G711, uLaw, aLaw, PCM Encoding
- MP3 Encoding (low Latency)
- Shoutcast/Icecast Source capability
- Audio Level Supervision with SNMP Trap generation
- IP Streaming via TCP, UDP, RTP, Multicast
- Line Level Input (Stereo)
- RS-232 Serial Port
- Power Supply (micro USB)
Electrical
• 5V, max. 1A through Mini-USB connector
• External power adaptor, 100-240VAC, 5W, included
Ethernet
• RJ45, 10/100Mbps auto, Link & Activity LEDs
• Protocols: TCP/IP, UDP, RTP, DHCP, SNMP, SIP
• AutoIP, SonicIP, IPZator to ease address assignment
RS-232
• 300..230‘400 Baud asynchronous, 7/8 bit
• DSub 9 pin male
• serial tunnel, control and metadata input support
Audio Input
• RCA connectors, unbalanced, 2 kOhm impedance
• Clipping level 5.3 dBu, 4 Vpp
• Frequency response (-3dB) 20..20‘000 Hz *
• Signal to Noise Ratio 89dB, THD <0.03%
• Stereo crosstalk -89dB
• Input signal attenuable by software setting (-3.. 19.5dB)
Audio formats
• MP3, encoding/decoding up to 192/320kbps
• VBR and CBR support
• PCM 16bit @8, 16, 22.05, 24, 32, 44.1, 48 kHz
- Discription
-
Barix 100 Instreamer Classic EU Audio over IP codec
Network audio encoder for commercial, industrial hand security applications With Barix you can bring your audio into the network. The Barix Instreamer or MP3 audio encoder is an intelligent streaming component that converts analog and digital audio into MP3 which it then transmits into the network. This is a great way to bring your analog audio into your network audio distribution setup.
Think of the Instreamer IP audio encoder as a counterpart to the Exstreamer since it brings the sound into the network, rather than bringing the sound out! Has inputs for all sound sources for IP audio encoding from tuners to record, tape, MD and CD players Monitors and controls the directly attached equipment Is easily controlled using your standard web browser (PC, palm, etc.) or IR remote control (Barix accessory) Applications IP Audio Encoding Residential, commercial and professional audio encoding / decoding (Exstreamer)
Barix streaming technology is also utilized by leading system integrators for custom client solutions and radio stations.
Applications
- Live IP Audio Encoder for Streaming Applications
- Source Encoder for IP Audio Distribution Applications
- Background Music and Music-on-Hold encoder for VoIP Applications
- Shoutcast/Icecast Source Encoder
- Low latency IP Audio Encoder for multichannel applications
- Confidence Monitoring and Vox Switch for Broadcast Applications
- Budget STL (with the Extreamer) studio to transmitter link
Features
- G711, uLaw, aLaw, PCM Encoding
- MP3 Encoding (low Latency)
- Shoutcast/Icecast Source capability
- Audio Level Supervision with SNMP Trap generation
- IP Streaming via TCP, UDP, RTP, Multicast
- Line Level Input (Stereo)
- RS-232 Serial Port
- Power Supply (micro USB)
- Specifications
-
Electrical
• 5V, max. 1A through Mini-USB connector
• External power adaptor, 100-240VAC, 5W, includedEthernet
• RJ45, 10/100Mbps auto, Link & Activity LEDs
• Protocols: TCP/IP, UDP, RTP, DHCP, SNMP, SIP
• AutoIP, SonicIP, IPZator to ease address assignmentRS-232
• 300..230‘400 Baud asynchronous, 7/8 bit
• DSub 9 pin male
• serial tunnel, control and metadata input supportAudio Input
• RCA connectors, unbalanced, 2 kOhm impedance
• Clipping level 5.3 dBu, 4 Vpp
• Frequency response (-3dB) 20..20‘000 Hz *
• Signal to Noise Ratio 89dB, THD <0.03%
• Stereo crosstalk -89dB
• Input signal attenuable by software setting (-3.. 19.5dB)Audio formats
• MP3, encoding/decoding up to 192/320kbps
• VBR and CBR support
• PCM 16bit @8, 16, 22.05, 24, 32, 44.1, 48 kHz
