Axia IQ Telco Digital Expansion Frame
Axia IQ Telco Digital Expansion Frame
Axia logo - Pro FM broadcast

Axia IQ Telco Expansion Frame

€ 2.870,00

Axia IQ Telco Digital Expansion Frame

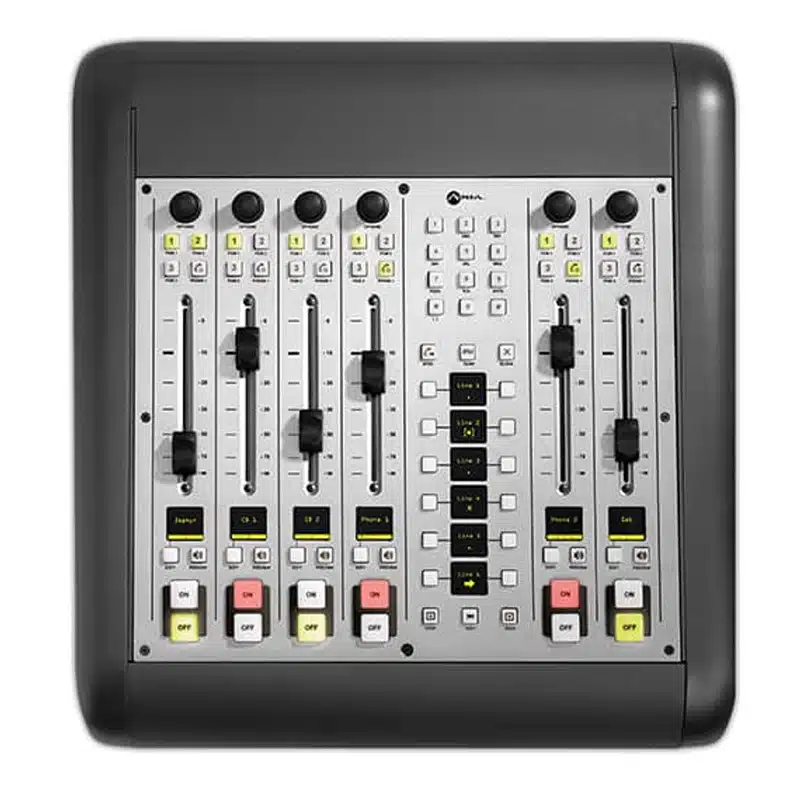

Axia iQ 6-Fader Telco Expansion Frame plugs in to the iQ Core using an available CANBus connectoradds six faders to your iQ Main Frame. Built-in Telco section provides easy to use, on-the-board control of Telos iQ6 telephone hybrid.



Add to wishlist
Category: SKU: 514 Tag:

Description

Axia IQ Telco Expansion Frame.

The Axia iQ , a cutting-edge addition crafted to enhance the capabilities of your broadcasting setup. Seamlessly integrating into your existing infrastructure via a CANBus connector, this expansion frame introduces six faders, revolutionizing your control options. Whether you’re managing Telos iQ6 telephone hybrids or orchestrating complex broadcasting operations, this expansion frame ensures unmatched efficiency and precision.

Simplify your workflow with the built-in Telco section, facilitating seamless management of Telos iQ6 telephone hybrids. Equipped with an intuitive OLED Status Symbols display, call management becomes effortless and intuitive. With direct control over six phone lines and two hybrids, along with a convenient DTMF dial pad, operational efficiency is guaranteed.

Crafted with precision and durability in mind, the Axia features premium components including 100mm conductive-plastic faders, aircraft-quality switches, and LED key backlighting for enhanced visibility. Experience optimal performance even in demanding broadcasting environments.

Versatile by design, the expansion frame can be effortlessly integrated into any setup. Whether placed on a desk surface, mounted drop-in style, or converted to rack-mounting with the included hardware, the Expansion Frame adapts seamlessly to your broadcasting needs.

Experience unparalleled broadcasting control and efficiency with the Axia Expansion Frame. Elevate your broadcasting setup today and unlock new possibilities for your operations.

SPECIFICATIONS QOR.32

Connections
• Microphone Inputs: 4x balanced XLR-F, with selectable Phantom power
• Analog Inputs: 16x RJ-45, StudioHub+ standard. • Analog Outputs: 8x RJ-45, StudioHub+ standard.
• AES/EBU Inputs: 2x RJ-45, StudioHub+ standard. • AES/EBU Outputs: 2x RJ-45, StudioHub+ standard.
• GPIO: 8x DB-15 • Livewire:
• 4x 100BASE-T with PoE, RJ-45
• 2x 100BASE-T, RJ-45 • 2x 1000BASE-T, RJ-45
• 2x Gigabit, SFP (Small Form Pluggable) • Console Frame Connections: 3x, 6-pin “latch and lock” style
• Accessory Connections: 1x, 6-pin “latch and lock” style

Microphone Preamplifiers
• Source Impedance: 150 Ohms • Input Impedance: 4 k Ohms minimum, balanced
• Nominal Level Range: Adjustable, -75 dBu to -20 dBu
• Input Headroom: >20 dB above nominal input
• Output Level: +4 dBu, nominal Analog Line Inputs
• Input Impedance: 20 k Ohms
• Nominal Level Range: Selectable, +4 dBu or -10dBv
• Input Headroom: 20 dB above nominal input

Analog Line Outputs
• Output Source Impedance: <50 Ohms balanced
• Output Load Impedance: 600 Ohms, minimum • Nominal Output Level: +4 dBu
• Maximum Output Level: +24 dBuAxia iQ | The Smarter IP Console TelosAlliance.com/Axia/iQ

Digital Audio Inputs And Outputs
• Reference Level: +4 dBu (-20 dB FSD)
• Impedance: 110 Ohm, balanced (XLR)
• Signal Format: AES-3 (AES/EBU)
• AES-3 Input Compliance: 24-bit with selectable sample rate conversion, 20 kHz to 216kHz input sample rate capable.
• AES-3 Output Compliance: 24-bit
• Digital Reference: Internal (network timebase) or external reference 48 kHz, +/- 2 ppm
• Internal Sampling Rate: 48 kHz
• Output Sample Rate: 48 kHz
• A/D Conversions: 24-bit, Delta-Sigma, 256x oversampling
• D/A Conversions: 24-bit, Delta-Sigma, 256x oversampling
• Latency <3 ms, mic in to monitor out, including network and processor loop

Frequency Response
• Any input to any output: +0.5 / -0.5 dB, 20 Hz to 20 kHz

Dynamic Range
• Analog Input to Analog Output: 102 dB referenced to 0 dBFS, 105 dB “A” weighted to 0 dBFS
• Analog Input to Digital Output: 105 dB referenced to 0 dBFS
• Digital Input to Analog Output: 103 dB referenced to 0 dBFS, 106 dB “A” weighted
• Digital Input to Digital Output: 125 dB Equivalent Input Noise
• Microphone Preamp: -128 dBu, 150 Ohm source, reference -50 dBu input level Total

Harmonic Distortion + Noise
• Mic Pre Input to Analog Line Output: <0.005%, 1 kHz, -38 dBu input, +18 dBu output
• Analog Input to Analog Output: <0.008%, 1 kHz, +18 dBu input, +18 dBu output
• Digital Input to Digital Output: <0.0003%, 1 kHz, -20 dBFS
• Digital Input to Analog Output: <0.005%, 1 kHz, -6 dBFS input, +18 dBu outputAxia iQ | The Smarter IP Console TelosAlliance.com/Axia/iQ

Crosstalk Isolation, Stereo Separation And CMRR
• Analog Line channel to channel isolation: 90 dB isolation minimum, 20 Hz to 20 kH
• Microphone channel to channel isolation: 80 dB isolation minimum, 20 Hz to 20 kHz
• Analog Line Stereo separation: 85 dB isolation minimum, 20Hz to 20 kHz
• Analog Line Input CMRR: >50 dB, 20 Hz to 20 kHz Microphone Input CMRR: >50 dB, 20 Hz to 20 kHz

Audio Processing
• Mic Equalizer (applicable to up to 6 faders)
• Frequency Bands: 20Hz to 320Hz, 125Hz to 2KHz, 1.25KHz to 20KHz.
• Cut/Boost range on each band: -25dB to +15dB.
• Q-factor: Automatic – bandwidth varies based on amount of cut or boost.

Power Supply AC Input, QOR.32 with iQ Console
• Auto-sensing supply, 90VAC to 240VAC, 50 Hz to 60 Hz, IEC receptacle, internal fuse
• Power consumption: 100 Watts Operating

Temperatures
• -10 degrees C to +40 degrees C, <90% humidity, no condensation

Dimensions
• iQ Main Frame 20.5” x 19” x 4.5” (52,07 cm x 48,26 cm x 11,43 cm) (desktop to meter bridge)
• iQ Expansion Frames 17.5” x 18.25” x 3”(44,45 cm x 46,36 cm x 7,62 cm) (desktop to tallest control)

Description

Axia IQ Telco Expansion Frame.

The Axia iQ , a cutting-edge addition crafted to enhance the capabilities of your broadcasting setup. Seamlessly integrating into your existing infrastructure via a CANBus connector, this expansion frame introduces six faders, revolutionizing your control options. Whether you’re managing Telos iQ6 telephone hybrids or orchestrating complex broadcasting operations, this expansion frame ensures unmatched efficiency and precision.

Simplify your workflow with the built-in Telco section, facilitating seamless management of Telos iQ6 telephone hybrids. Equipped with an intuitive OLED Status Symbols display, call management becomes effortless and intuitive. With direct control over six phone lines and two hybrids, along with a convenient DTMF dial pad, operational efficiency is guaranteed.

Crafted with precision and durability in mind, the Axia features premium components including 100mm conductive-plastic faders, aircraft-quality switches, and LED key backlighting for enhanced visibility. Experience optimal performance even in demanding broadcasting environments.

Versatile by design, the expansion frame can be effortlessly integrated into any setup. Whether placed on a desk surface, mounted drop-in style, or converted to rack-mounting with the included hardware, the Expansion Frame adapts seamlessly to your broadcasting needs.

Experience unparalleled broadcasting control and efficiency with the Axia Expansion Frame. Elevate your broadcasting setup today and unlock new possibilities for your operations.

Specifications

SPECIFICATIONS QOR.32

Connections
• Microphone Inputs: 4x balanced XLR-F, with selectable Phantom power
• Analog Inputs: 16x RJ-45, StudioHub+ standard. • Analog Outputs: 8x RJ-45, StudioHub+ standard.
• AES/EBU Inputs: 2x RJ-45, StudioHub+ standard. • AES/EBU Outputs: 2x RJ-45, StudioHub+ standard.
• GPIO: 8x DB-15 • Livewire:
• 4x 100BASE-T with PoE, RJ-45
• 2x 100BASE-T, RJ-45 • 2x 1000BASE-T, RJ-45
• 2x Gigabit, SFP (Small Form Pluggable) • Console Frame Connections: 3x, 6-pin “latch and lock” style
• Accessory Connections: 1x, 6-pin “latch and lock” style

Microphone Preamplifiers
• Source Impedance: 150 Ohms • Input Impedance: 4 k Ohms minimum, balanced
• Nominal Level Range: Adjustable, -75 dBu to -20 dBu
• Input Headroom: >20 dB above nominal input
• Output Level: +4 dBu, nominal Analog Line Inputs
• Input Impedance: 20 k Ohms
• Nominal Level Range: Selectable, +4 dBu or -10dBv
• Input Headroom: 20 dB above nominal input

Analog Line Outputs
• Output Source Impedance: <50 Ohms balanced
• Output Load Impedance: 600 Ohms, minimum • Nominal Output Level: +4 dBu
• Maximum Output Level: +24 dBuAxia iQ | The Smarter IP Console TelosAlliance.com/Axia/iQ

Digital Audio Inputs And Outputs
• Reference Level: +4 dBu (-20 dB FSD)
• Impedance: 110 Ohm, balanced (XLR)
• Signal Format: AES-3 (AES/EBU)
• AES-3 Input Compliance: 24-bit with selectable sample rate conversion, 20 kHz to 216kHz input sample rate capable.
• AES-3 Output Compliance: 24-bit
• Digital Reference: Internal (network timebase) or external reference 48 kHz, +/- 2 ppm
• Internal Sampling Rate: 48 kHz
• Output Sample Rate: 48 kHz
• A/D Conversions: 24-bit, Delta-Sigma, 256x oversampling
• D/A Conversions: 24-bit, Delta-Sigma, 256x oversampling
• Latency <3 ms, mic in to monitor out, including network and processor loop

Frequency Response
• Any input to any output: +0.5 / -0.5 dB, 20 Hz to 20 kHz

Dynamic Range
• Analog Input to Analog Output: 102 dB referenced to 0 dBFS, 105 dB “A” weighted to 0 dBFS
• Analog Input to Digital Output: 105 dB referenced to 0 dBFS
• Digital Input to Analog Output: 103 dB referenced to 0 dBFS, 106 dB “A” weighted
• Digital Input to Digital Output: 125 dB Equivalent Input Noise
• Microphone Preamp: -128 dBu, 150 Ohm source, reference -50 dBu input level Total

Harmonic Distortion + Noise
• Mic Pre Input to Analog Line Output: <0.005%, 1 kHz, -38 dBu input, +18 dBu output
• Analog Input to Analog Output: <0.008%, 1 kHz, +18 dBu input, +18 dBu output
• Digital Input to Digital Output: <0.0003%, 1 kHz, -20 dBFS
• Digital Input to Analog Output: <0.005%, 1 kHz, -6 dBFS input, +18 dBu outputAxia iQ | The Smarter IP Console TelosAlliance.com/Axia/iQ

Crosstalk Isolation, Stereo Separation And CMRR
• Analog Line channel to channel isolation: 90 dB isolation minimum, 20 Hz to 20 kH
• Microphone channel to channel isolation: 80 dB isolation minimum, 20 Hz to 20 kHz
• Analog Line Stereo separation: 85 dB isolation minimum, 20Hz to 20 kHz
• Analog Line Input CMRR: >50 dB, 20 Hz to 20 kHz Microphone Input CMRR: >50 dB, 20 Hz to 20 kHz

Audio Processing
• Mic Equalizer (applicable to up to 6 faders)
• Frequency Bands: 20Hz to 320Hz, 125Hz to 2KHz, 1.25KHz to 20KHz.
• Cut/Boost range on each band: -25dB to +15dB.
• Q-factor: Automatic – bandwidth varies based on amount of cut or boost.

Power Supply AC Input, QOR.32 with iQ Console
• Auto-sensing supply, 90VAC to 240VAC, 50 Hz to 60 Hz, IEC receptacle, internal fuse
• Power consumption: 100 Watts Operating

Temperatures
• -10 degrees C to +40 degrees C, <90% humidity, no condensation

Dimensions
• iQ Main Frame 20.5” x 19” x 4.5” (52,07 cm x 48,26 cm x 11,43 cm) (desktop to meter bridge)
• iQ Expansion Frames 17.5” x 18.25” x 3”(44,45 cm x 46,36 cm x 7,62 cm) (desktop to tallest control)

Additional information

Weight 7,5 kg
Dimensions 44,45 × 46,36 × 7,62 cm
