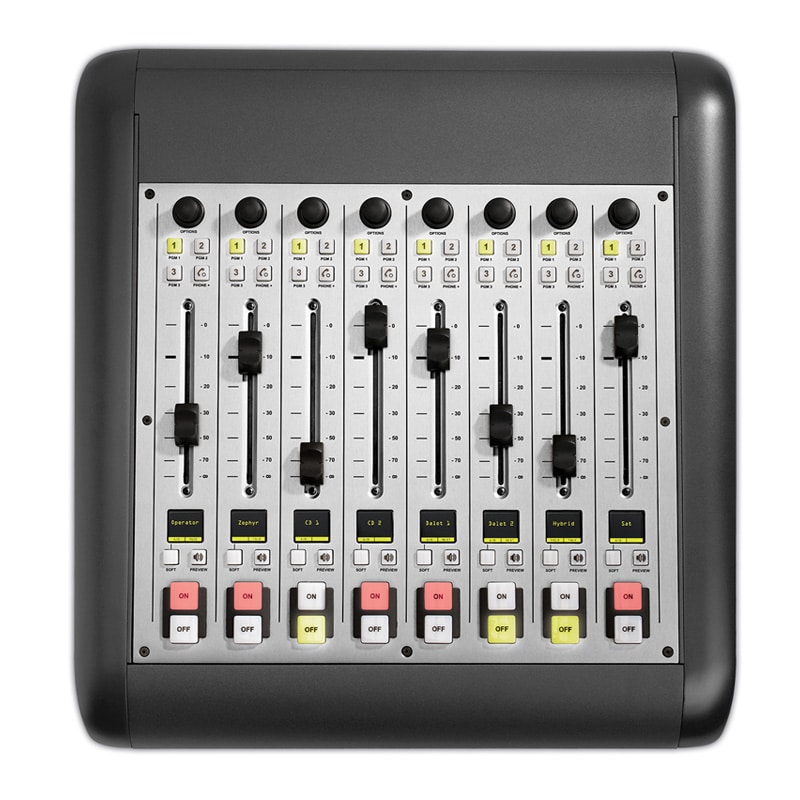

Axia IQ 8 Faders Digital Expansion Frame

In the realm of audio production, precision and control are paramount. Enter the Axia IQ 8-Fader Expansion Frame with User Buttons, a powerhouse addition to your setup that promises enhanced functionality and seamless integration. Designed to effortlessly complement your existing IQ Core system, this expansion frame opens up a world of possibilities for audio enthusiasts and professionals alike.

The IQ 8-Fader Expansion Frame seamlessly connects to your IQ Core using the available CANbus connector, ensuring a hassle-free setup process. With six additional faders at your disposal, you’ll have precise control over your audio levels, allowing you to fine-tune your sound with unparalleled accuracy. But that’s not all – ten user buttons provide convenient access to GPIO closures, streamlining the management of peripheral audio devices with effortless ease.

Crafted with precision engineering, the IQ 8-Fader Expansion Frame boasts 100mm conductive plastic faders that deliver smooth, responsive performance with every touch. Paired with aircraft-quality switches and LED key backlighting, you can trust in the durability and reliability of this exceptional device, even in the most demanding of environments.

Versatility is key, and the IQ 8-Fader Expansion Frame offers just that. Whether you prefer a clutter-free desktop setup or a sleek, drop-in installation, this expansion frame caters to your needs. With the flexibility to be placed on top of a desk surface or mounted drop-in style, you can customize your workspace to suit your preferences without compromise.

Furthermore, the IQ frames can be physically joined using the included hardware, allowing for seamless expansion and scalability as your audio setup evolves. This modular approach ensures that your investment remains future-proof, adapting effortlessly to your changing requirements with ease.

In conclusion, the Axia IQ 8-Fader Expansion Frame with User Buttons is more than just an accessory – it’s a game-changer for audio enthusiasts and professionals seeking unparalleled control and versatility. With seamless integration, precision engineering, and unmatched reliability, this expansion frame sets the standard for excellence in audio production. Elevate your audio experience today with the IQ 8-Fader Expansion Frame and unlock a world of possibilities.

SPECIFICATIONS QOR.32

Connections
• Microphone Inputs: 4x balanced XLR-F, with selectable Phantom power
• Analog Inputs: 16x RJ-45, StudioHub+ standard. • Analog Outputs: 8x RJ-45, StudioHub+ standard.
• AES/EBU Inputs: 2x RJ-45, StudioHub+ standard. • AES/EBU Outputs: 2x RJ-45, StudioHub+ standard.
• GPIO: 8x DB-15 • Livewire:
• 4x 100BASE-T with PoE, RJ-45
• 2x 100BASE-T, RJ-45 • 2x 1000BASE-T, RJ-45
• 2x Gigabit, SFP (Small Form Pluggable) • Console Frame Connections: 3x, 6-pin “latch and lock” style
• Accessory Connections: 1x, 6-pin “latch and lock” style

Microphone Preamplifiers
• Source Impedance: 150 Ohms • Input Impedance: 4 k Ohms minimum, balanced
• Nominal Level Range: Adjustable, -75 dBu to -20 dBu
• Input Headroom: >20 dB above nominal input
• Output Level: +4 dBu, nominal Analog Line Inputs
• Input Impedance: 20 k Ohms
• Nominal Level Range: Selectable, +4 dBu or -10dBv
• Input Headroom: 20 dB above nominal input

Analog Line Outputs
• Output Source Impedance: <50 Ohms balanced
• Output Load Impedance: 600 Ohms, minimum • Nominal Output Level: +4 dBu
• Maximum Output Level: +24 dBuAxia iQ | The Smarter IP Console TelosAlliance.com/Axia/iQ

Digital Audio Inputs And Outputs
• Reference Level: +4 dBu (-20 dB FSD)
• Impedance: 110 Ohm, balanced (XLR)
• Signal Format: AES-3 (AES/EBU)
• AES-3 Input Compliance: 24-bit with selectable sample rate conversion, 20 kHz to 216kHz input sample rate capable.
• AES-3 Output Compliance: 24-bit
• Digital Reference: Internal (network timebase) or external reference 48 kHz, +/- 2 ppm
• Internal Sampling Rate: 48 kHz
• Output Sample Rate: 48 kHz
• A/D Conversions: 24-bit, Delta-Sigma, 256x oversampling
• D/A Conversions: 24-bit, Delta-Sigma, 256x oversampling
• Latency <3 ms, mic in to monitor out, including network and processor loop

Frequency Response
• Any input to any output: +0.5 / -0.5 dB, 20 Hz to 20 kHz

Dynamic Range
• Analog Input to Analog Output: 102 dB referenced to 0 dBFS, 105 dB “A” weighted to 0 dBFS
• Analog Input to Digital Output: 105 dB referenced to 0 dBFS
• Digital Input to Analog Output: 103 dB referenced to 0 dBFS, 106 dB “A” weighted
• Digital Input to Digital Output: 125 dB Equivalent Input Noise
• Microphone Preamp: -128 dBu, 150 Ohm source, reference -50 dBu input level Total

Harmonic Distortion + Noise
• Mic Pre Input to Analog Line Output: <0.005%, 1 kHz, -38 dBu input, +18 dBu output
• Analog Input to Analog Output: <0.008%, 1 kHz, +18 dBu input, +18 dBu output
• Digital Input to Digital Output: <0.0003%, 1 kHz, -20 dBFS
• Digital Input to Analog Output: <0.005%, 1 kHz, -6 dBFS input, +18 dBu outputAxia iQ | The Smarter IP Console TelosAlliance.com/Axia/iQ

Crosstalk Isolation, Stereo Separation And CMRR
• Analog Line channel to channel isolation: 90 dB isolation minimum, 20 Hz to 20 kH
• Microphone channel to channel isolation: 80 dB isolation minimum, 20 Hz to 20 kHz
• Analog Line Stereo separation: 85 dB isolation minimum, 20Hz to 20 kHz
• Analog Line Input CMRR: >50 dB, 20 Hz to 20 kHz Microphone Input CMRR: >50 dB, 20 Hz to 20 kHz

Audio Processing
• Mic Equalizer (applicable to up to 6 faders)
• Frequency Bands: 20Hz to 320Hz, 125Hz to 2KHz, 1.25KHz to 20KHz.
• Cut/Boost range on each band: -25dB to +15dB.
• Q-factor: Automatic – bandwidth varies based on amount of cut or boost.

Power Supply AC Input, QOR.32 with iQ Console
• Auto-sensing supply, 90VAC to 240VAC, 50 Hz to 60 Hz, IEC receptacle, internal fuse
• Power consumption: 100 Watts Operating

Temperatures
• -10 degrees C to +40 degrees C, <90% humidity, no condensation

Dimensions
• iQ Main Frame 20.5” x 19” x 4.5” (52,07 cm x 48,26 cm x 11,43 cm) (desktop to meter bridge)
• iQ Expansion Frames 17.5” x 18.25” x 3”(44,45 cm x 46,36 cm x 7,62 cm) (desktop to tallest control)

Description: Axia IQ 8 Faders Digital Expansion Frame

In the realm of audio production, precision and control are paramount. Enter the Axia IQ 8-Fader Expansion Frame with User Buttons, a powerhouse addition to your setup that promises enhanced functionality and seamless integration. Designed to effortlessly complement your existing IQ Core system, this expansion frame opens up a world of possibilities for audio enthusiasts and professionals alike.

The IQ 8-Fader Expansion Frame seamlessly connects to your IQ Core using the available CANbus connector, ensuring a hassle-free setup process. With six additional faders at your disposal, you’ll have precise control over your audio levels, allowing you to fine-tune your sound with unparalleled accuracy. But that’s not all – ten user buttons provide convenient access to GPIO closures, streamlining the management of peripheral audio devices with effortless ease.

Crafted with precision engineering, the IQ 8-Fader Expansion Frame boasts 100mm conductive plastic faders that deliver smooth, responsive performance with every touch. Paired with aircraft-quality switches and LED key backlighting, you can trust in the durability and reliability of this exceptional device, even in the most demanding of environments.

Versatility is key, and the IQ 8-Fader Expansion Frame offers just that. Whether you prefer a clutter-free desktop setup or a sleek, drop-in installation, this expansion frame caters to your needs. With the flexibility to be placed on top of a desk surface or mounted drop-in style, you can customize your workspace to suit your preferences without compromise.

Furthermore, the IQ frames can be physically joined using the included hardware, allowing for seamless expansion and scalability as your audio setup evolves. This modular approach ensures that your investment remains future-proof, adapting effortlessly to your changing requirements with ease.

In conclusion, the Axia IQ 8-Fader Expansion Frame with User Buttons is more than just an accessory – it’s a game-changer for audio enthusiasts and professionals seeking unparalleled control and versatility. With seamless integration, precision engineering, and unmatched reliability, this expansion frame sets the standard for excellence in audio production. Elevate your audio experience today with the IQ 8-Fader Expansion Frame and unlock a world of possibilities.
Specifications: SPECIFICATIONS QOR.32

Connections
• Microphone Inputs: 4x balanced XLR-F, with selectable Phantom power
• Analog Inputs: 16x RJ-45, StudioHub+ standard. • Analog Outputs: 8x RJ-45, StudioHub+ standard.
• AES/EBU Inputs: 2x RJ-45, StudioHub+ standard. • AES/EBU Outputs: 2x RJ-45, StudioHub+ standard.
• GPIO: 8x DB-15 • Livewire:
• 4x 100BASE-T with PoE, RJ-45
• 2x 100BASE-T, RJ-45 • 2x 1000BASE-T, RJ-45
• 2x Gigabit, SFP (Small Form Pluggable) • Console Frame Connections: 3x, 6-pin “latch and lock” style
• Accessory Connections: 1x, 6-pin “latch and lock” style

Microphone Preamplifiers
• Source Impedance: 150 Ohms • Input Impedance: 4 k Ohms minimum, balanced
• Nominal Level Range: Adjustable, -75 dBu to -20 dBu
• Input Headroom: >20 dB above nominal input
• Output Level: +4 dBu, nominal Analog Line Inputs
• Input Impedance: 20 k Ohms
• Nominal Level Range: Selectable, +4 dBu or -10dBv
• Input Headroom: 20 dB above nominal input

Analog Line Outputs
• Output Source Impedance: <50 Ohms balanced
• Output Load Impedance: 600 Ohms, minimum • Nominal Output Level: +4 dBu
• Maximum Output Level: +24 dBuAxia iQ | The Smarter IP Console TelosAlliance.com/Axia/iQ

Digital Audio Inputs And Outputs
• Reference Level: +4 dBu (-20 dB FSD)
• Impedance: 110 Ohm, balanced (XLR)
• Signal Format: AES-3 (AES/EBU)
• AES-3 Input Compliance: 24-bit with selectable sample rate conversion, 20 kHz to 216kHz input sample rate capable.
• AES-3 Output Compliance: 24-bit
• Digital Reference: Internal (network timebase) or external reference 48 kHz, +/- 2 ppm
• Internal Sampling Rate: 48 kHz
• Output Sample Rate: 48 kHz
• A/D Conversions: 24-bit, Delta-Sigma, 256x oversampling
• D/A Conversions: 24-bit, Delta-Sigma, 256x oversampling
• Latency <3 ms, mic in to monitor out, including network and processor loop

Frequency Response
• Any input to any output: +0.5 / -0.5 dB, 20 Hz to 20 kHz

Dynamic Range
• Analog Input to Analog Output: 102 dB referenced to 0 dBFS, 105 dB “A” weighted to 0 dBFS
• Analog Input to Digital Output: 105 dB referenced to 0 dBFS
• Digital Input to Analog Output: 103 dB referenced to 0 dBFS, 106 dB “A” weighted
• Digital Input to Digital Output: 125 dB Equivalent Input Noise
• Microphone Preamp: -128 dBu, 150 Ohm source, reference -50 dBu input level Total

Harmonic Distortion + Noise
• Mic Pre Input to Analog Line Output: <0.005%, 1 kHz, -38 dBu input, +18 dBu output
• Analog Input to Analog Output: <0.008%, 1 kHz, +18 dBu input, +18 dBu output
• Digital Input to Digital Output: <0.0003%, 1 kHz, -20 dBFS
• Digital Input to Analog Output: <0.005%, 1 kHz, -6 dBFS input, +18 dBu outputAxia iQ | The Smarter IP Console TelosAlliance.com/Axia/iQ

Crosstalk Isolation, Stereo Separation And CMRR
• Analog Line channel to channel isolation: 90 dB isolation minimum, 20 Hz to 20 kH
• Microphone channel to channel isolation: 80 dB isolation minimum, 20 Hz to 20 kHz
• Analog Line Stereo separation: 85 dB isolation minimum, 20Hz to 20 kHz
• Analog Line Input CMRR: >50 dB, 20 Hz to 20 kHz Microphone Input CMRR: >50 dB, 20 Hz to 20 kHz

Audio Processing
• Mic Equalizer (applicable to up to 6 faders)
• Frequency Bands: 20Hz to 320Hz, 125Hz to 2KHz, 1.25KHz to 20KHz.
• Cut/Boost range on each band: -25dB to +15dB.
• Q-factor: Automatic – bandwidth varies based on amount of cut or boost.

Power Supply AC Input, QOR.32 with iQ Console
• Auto-sensing supply, 90VAC to 240VAC, 50 Hz to 60 Hz, IEC receptacle, internal fuse
• Power consumption: 100 Watts Operating

Temperatures
• -10 degrees C to +40 degrees C, <90% humidity, no condensation

Dimensions
• iQ Main Frame 20.5” x 19” x 4.5” (52,07 cm x 48,26 cm x 11,43 cm) (desktop to meter bridge)
• iQ Expansion Frames 17.5” x 18.25” x 3”(44,45 cm x 46,36 cm x 7,62 cm) (desktop to tallest control)

Additional information

Weight	6.5 kg
Dimensions	45 × 47 × 8 cm
