Description

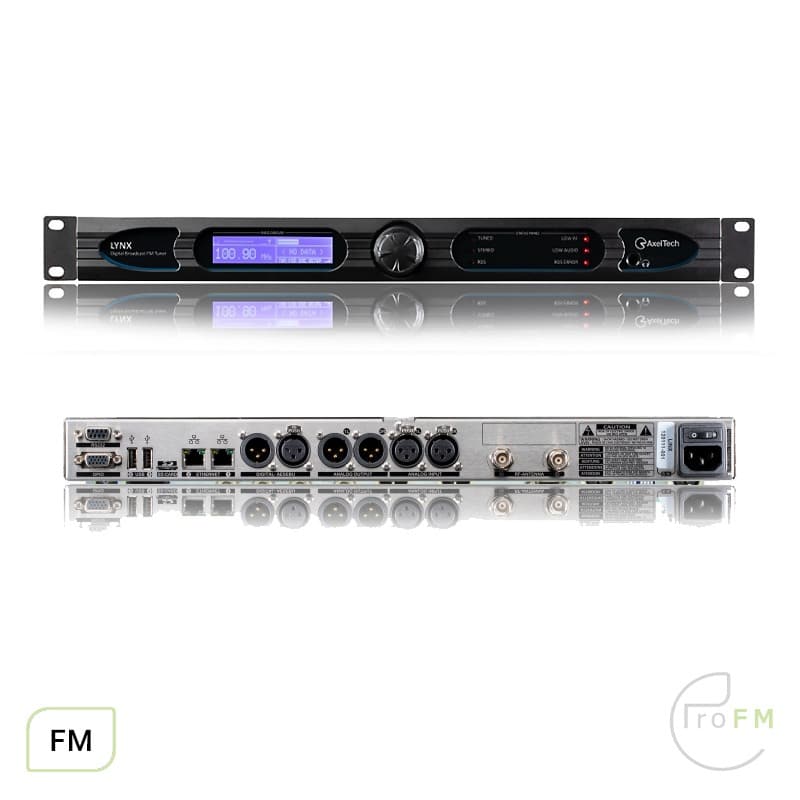

Axel Technology LYNX Digital Broadcast FM Tuner/monitoring.
Lynx is an evolved Broadcast Digital FM Tuner, designed for receiving, monitoring, visualize and listen the FM radio signals. The built in web interface allow to multiple users to visualize all the parameters and details of the incoming signal. The tuned frequency’s audio is available on the analog balanced output (XLR), on the digital output AES/EBU (XLR), on the headphone output and via streaming. At the same time. The quality and accuracy of the built-in tuner allow a very strict analysis of the tuned frequency, the modulation and the RDS data decoding. The Lynx’s display always show the tuned frequency and, cyclically, all the following parameters:
Receiving:
– RF Level incoming
– Multipath
– Carrier Offset
Deviation:
– MPX
– Audio
– Pilot and RDS
Decoding RDS:
– PS
– PI
– BLER
– TA
– TP
– MS
– DI
– PTY / PTYN
– AF Presence
– RT / RT
– TMC
The display allow you also to finetune and adjust all the setting of Lynx as:
– IP Ethernet port
– Digital and Analog level output
– Time and treshold alarm
– Headphone level
On the frontal panel the headphone output allow you to listen the tuned frequency. The led panel (STATU LED PANEL) show you in a clear way the receiving status:
– Tuned
– Stereo
– RDS
– 3 different alarms: Low RD, Low Audio and RDS Errors.
The built in web server allow to preview the following details:
Receiving:
– RF Level incoming
– Carrier Offset
– Multipath
– Adjacent Channel
– Alternative Channel Deviation:
– MPX
– Audio
– Pilot
– RDS
Audio parameter decodified:
– L/R RMS
– L/R peak
– Imnbalance
– Mono
– MPX Power
Audio spectrum streaming received.
RDS Decoding:
PS, RT, PI, EON, BLER, CT, TP, TA, MS, DI, PTY, PTYN, PIN, transmitted groups.
Presence of services of CT, AF, RT, RT , TMX, EON, IH, LA, EG, ILS, LSN.
List of all the alternative frequency, up to a 64 lists, A/B list analyzes and REG check. Preview of EON data.
Page welcome to RDS statistic analysis and decoding of the RDS flux with the possibility of download for a better analysis.
Features:
- Real time measurement
- – High quality tuner
- Signal analysis of: RF, MPX, AUDIO and RDS
- Built in web server for remote access
- Audio over IP streaming for monitoring
- Decoder RDS with complete data decoding
- Double ports for Net connection
- Analog balanced output and AES/EBU on XLR
- High shielded against strong RF fields
| Main Power | 100 Vac – 240 Vac 50/60 Hz internal, universal power supply |
| Power consumption | 25 W |
| Power connector | IEC plug filter with internal fuse 2.0 AT |
| Headphones | Stereo Jack 6.3 mm |
| Safety and EMC | Compliant to CE laws |
| Working temperature | 0° to 50° C (storage -5 to + 50 °C) |
| Housing dimensions | 19 inch x 1u x 240 mm (depth) |
| Weight | 3.5 kg |
| RF TUNERS | |
| Tuner frequency | 87.5 MHz ‐ 108.0 MHz |
| Tuner step | 10 kHz |
| RF tuning stability | +/- 500 Hz |
| RF input sensitivity | 20 to 120 dBµV |
| RF input nominal level | 80 to 100 dBµV |
| RF inputs main | 1x BNC, with 50 Ohm unbalanced |
| Max frequency deviation | 125 kHz |
| IF filter bandwidth | 34 kHz to 138 kHz – Manual or automatic |
| Input RF level | 30 dBµV – 120 dBµV with internal attenuator |
| Selectivity at ± 120 kHz | > -3 dB |
| Selectivity at ± 200 kHz | > -40 dB |
| Selectivity at ± 300 kHz | >- 50 dB |
| Selectivity at ± 400 kHz | >-65 dB |
| Image rejection @ 22.5 kHz | 70 dB |
| Adjacent channel rejection | 63 – 65 dB |
| Alternate channel rejection | 65 – 72 dB |
| THD @ dev=75 kHz | 0.05 – 0.1 % |
| Mono (S+N)/N | 75 dB typ – 68 dB min (No A-Weighting 30 Hz – 15 kHz) |
STEREO DECODERS
| Stereo (S+N)/N | 61 dB Stereo/61 dB mono @ 40 dBµV 65 dB Stereo @ 50 dBµV 80 dB Stereo @ 70 dBµV |
| Pilot 19kHz suppression | 55 dB (Stereo modulation L = 1, R = 0,Deviation=67.5 kHz, Pilot deviation=6.75 kHz) |
| Stereo THD + N | Measures @ 70 dBuV with 75 kHz deviation 100 Hz – 0.055 % 1 kHz – 0.061 % 5 kHz – 0.19 % 10 kHz – 0.46 % |
| Stereo separation | 45 dB (Stereo modulation L = 1, R = 0,Deviation=67.5 kHz, Pilot deviation=6.75 kHz)
48 dB @ 400 Hz |
RDS DECODER
| RDS sensitivity | 20 dBµV (dev f = 2 kHz, RDS BLER < 5%) |
| RDS synchronization time | 80 ms (dev f = 2 kHz RF input = 60 dBµV) |
| RDS PI lock time | 100 ms (dev f = 2 kHz RF input = 60 dBµV) |
| RDS data decoding and streaming | RDS level indication and deviation (voltage, kHz and dBr) |
| RDS data decoding services | PS, PI, M/S, DI, TP, TA, AF, AF List Presence A/B Method, Scrolling PS, AF EON, Radio Text, Radio Text Plus, CT, PTY, PIN, IH, TMC, EWS, TDC. ODA generic services. RDS error detection with three shold adjustable |
| RF MEASUREMENT MODULE | Ranges – Resolution – Precision |
| RF Level | 0 – 80 dBµV (resolution 1 dBµV, precision 2 dBµV) 82 – 120 dBµV (resolution 2 dBµV, precision 5 dBµV) |
| Deviation | 0-125 kHz (resolution 1 kHz, precision 2 kHz) |
| Tuned carrier frequency offset | 0-250 ppm (resolution 2 ppm, precision 5 ppm) |
| Multipath | 0-100 % |
| Adjacent channel RF level | 0 – 80 dBµV (resolution 1 dBµV, precision 2 dBµV) (+-200kHz) |
| MPX MEASUREMENT MODULE | Ranges – Resolution – Precision |
| Pilot level | 0-20 kHz (resolution 0.1 kHz, precision 0.2 kHz) |
| Rds level | 0-20 kHz (resolution 0.1 kHz, precision 0.2 kHz) |
| Mpx power ITU-R-BS412 (Estimated) | -20 dBr to + 12 dBr (resolution 0.1 dBr, precision 0.5 dBr) |
| Stereo | Valid Stereo signal detector |
| AUDIO MEASUREMENT MODULE | Ranges – Resolution – Precision |
| Left Quasi Peak | Programmable attack time from 0 mS to 2 mS (Resolution 0.1 dB) |
| Right quasi peak | Programmable attack time from 0 mS to 2 mS (resolution 0.1 dB) |
| Audio silence | Threshold – 80 dB to 0 dB, Time: 1-120 Sec |
| Unbalanced stereo signal | Threshold – 80 dB to 0 dB, Time: 1-120 Sec |
AUDIO OUTPUT
| Available output on XLR | Tuner – 1 or Tuner – 2, definable via web page. Same audio on analog and AES/EBU |
| Audio frequency response | 30 Hz – 15 kHz, ± 0,3 dB |
| Phones (Front panel) | Stereo jack 6.3 mm, 150 Ohm, 0.8 W |
| ANALOG OUTPUT MODULE | |
| D/A Conversion | 24bit Sigma – Delta conversion – 32 kHz Sample rate |
| Connectors | 2x XLR, male – Electronically balanced |
| Output level | -12.0 dBu to +14.0 dBu (0.1 dBu Step) – Max (+20 dBu) |
| Impedance Source | 47 Ω |
| Load impedance | 600 Ω or greater |
| Distortion | Less than 0.02% TDH + Noise (0.0dBu @ 1Khz) |
| Dynamic range | 108 dB (110 dB A-weighted, 20Hz – 15kHz) |
| Sources | Streamer1_Source , Streamer2_Source |
| DIGITAL OUTPUT MODULE | |
| Connectors: | XLR, Male – Electronically balanced |
| Format | AES3/EBU |
| Sample rates | 32 kHz |
| Resolution | 24 bits |
| Operative nominal level: | From 0.0 dBFs to – 24dBFs (0.1 dBu step) |
| Dynamic range: | 125 dB (Typ), 122 dB (Min) |
| Distortion | less than 0.01% TDH+NOISE (-20dBFs @ 1Khz) |
| Freq. response | 20Hz -15kHz |
| Dynamic range | 108 dB |
| Sources | Streamer1_Source , Streamer2_Source |
AUDIO STREAMING MODULE
| Protocols | TCP/IP, IceCast2 |
| Encoders | OGG – VORBIS |
| Interface | Ethernet port 10/100 Mb/s |
| Bitrate | User select 24 kbps to 192 kbps |
| Sample rates | 32Ksamples/sec |
