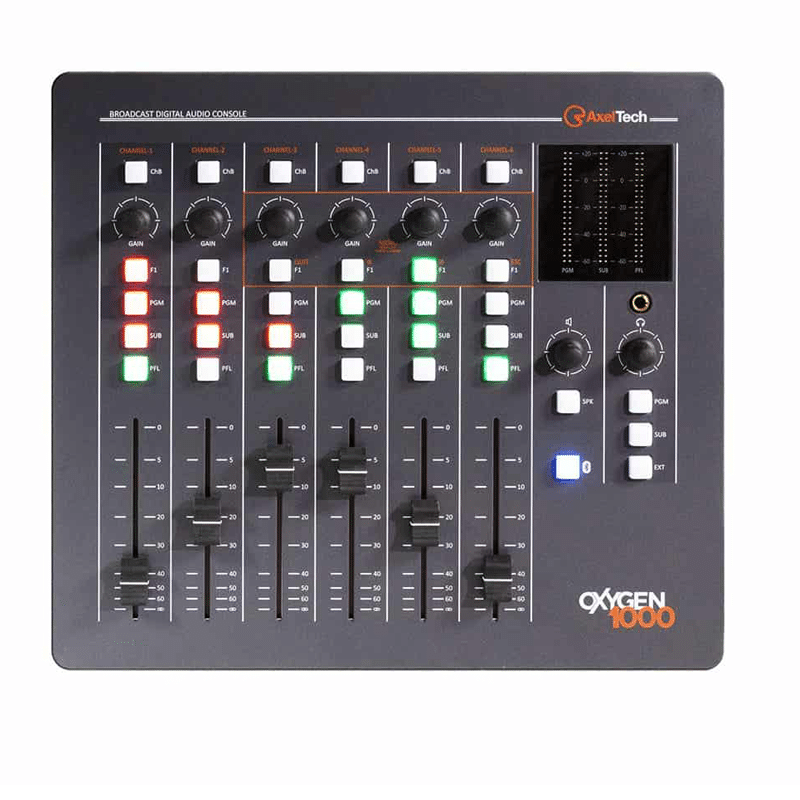

Axel Tech Oxygen 1000 Digital Broadcast Console

Oxygen 1000 is a fully Digital Broadcast Console designed for On Air and Production in any Radio Station: a compact 6 faders unit, with a powerful internal audio routing and a wide range of controls and I/O in a rugged and classy steel chassis. Oxygen 1000 DSP based audio processing delivers high-end quality and guarantees latest features and flexibility.

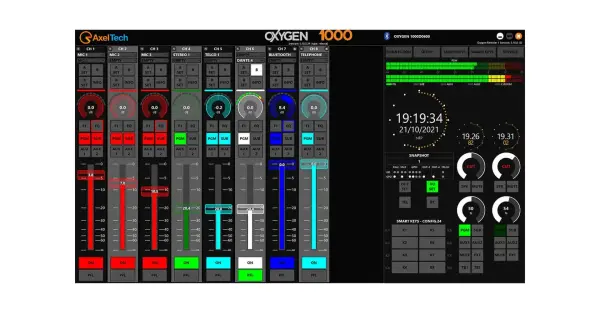

Reliable and easy to use as an analogue mixing console Oxygen 1000 offers top class features: Low Latency, Users Preset, Smart Keys, EQ, Compressors, Telephone Hybrid, HDMI Output, Analogue and Digital I/O, USB, Bluetooth, Dante AoIP, Telco, Presenter Talk Box. Oxygen 1000 can be remotely controlled through a dedicated application.

Bluetooth
Oxygen 1000 can be equipped with a Bluetooth module. This makes it possible to send the calls via GSM, Skype, Viber and WhatsApp with a smartphone, a tablet or a PC. Oxygen 1000 has two Bluetooth connection modes: bi-directional to support phone calls; mono-directional to broadcast high-quality stereo sound (A2DP) streamed from Bluetooth sources. With Bluetooth calls, PFL turns on PRIVATE talk mode. The Bluetooth interface is factory installed and must be requested when ordering.

Talk box
It is a device especially for the presenter and guests. Talk Box is very easy to connect to the On Air Console: it requires 2 RJ45 cables of the length needed to connect it to the mixer. It is possible to connect a maximum of 2 Talk Boxes to the Oxygen 1000. The Talk Box offers a direct connection of the microphone and the associated On-Air light, it is also possible to directly connect the On-Air Light of the studio. Close. The Talk Box has a headphone amplifier with two 6.3 mm outputs. Via the two large illuminated buttons it is possible to activate and deactivate your own microphone (On/Off/Cough) or to switch on Talk back to the console.

Dante AoIP interface
Oxygen 1000 can be equipped with a Dante interface (compatible with AES67) that provides 8 stereo inputs and 8 stereo outputs on a dedicated Ethernet port, with independent level control and sample rate conversion. On Oxygen 1000 Dante versions, the USB I/O ports are disabled. The Dante AoIP interface is factory installed and must be requested during the order phase.

Cable Adapters
RJ45 adapters are available for:
o Microphone with GPIO
o Line in
o Line out with GPIO
o Telco with GPIO

Microphone Inputs
3 microphone inputs
Mic 1 on XLR, Mic 2 & 3 on RJ45: 2-3, all balanced with +48V Phantom and GPIO. Independent ON AIR lighting and cut-off control, when opening the control room and studio microphones PFL button switches to private conversation in Hybrid/Telco/Bluetooth mode. Enable the TalkBack feature on any studio or control room microphone. Parametric compressors/expander (drive, threshold, attack time, release time) for MIC and MONO inputs. Store and recall microphone presets, including Compressor/Expander settings. Phase inversion on microphone inputs. MONO inputs assignable as EXT source. Ducking / AutoFader assignable to all sources (automatic mute of music on speech).

Analog inputs
Line stereo inputs: 4’Balanced on XLR for Line 1, Balanced on RJ45 for Line 2-4. Channel mode selection: STEREO, MONO, L, R, INV-L, INV-R, INV. Stereo-1 & DANTE-1 inputs can be configured as 4 Telco inputs

USB audio I/O
2 built-in stereo USB (Type-B) I/O audio interfaces allow you to connect the PC directly to the Oxygen 1000 console, without the need for sound cards. In fact, the PC detects each of the console USB as a digital sound card with 1 stereo inputs and 1 stereo outputs for simultaneous playback and recording. Telephone hybrid and Telco Telephone Hybrid: 1 POTS/PSTN telephone line with Line.In and Tel.Set connection. Telco: 1 in/out N-1 to connect external telephone hybrid with control via TLC/GPIO. 4 additional mono Telco can be obtained by configuring analog inputs (Stereo-1 & DANTE-1) and (OUT-2 & DANTE-1) stereo outputs. GPI and GPO management on all 5 Telco channels. RING and HOOK on F1 key for each TELCO channel. N-1 on Telco outputs for all BUS (PGM, SUB, AUX-1 and AUX-2).

Analog outputs
4 Balanced Outputs:
OUT-1 – XLR – Fixed as PGM
OUT-2 – XLR – Default assigned as SUB
OUT-3 – RJ45 – Assigned by default as AUX-1
OUT-4 – RJ45 – Assigned by default as AUX-2
OUT-2 stereo output can be configured as N-1 for up to 2 additional mono Telco. reach
OUT-1 & OUT-2 outputs are both equipped with a GPO

Digital output
1 AES/EBU output on XLR
Headphones and local monitor outputs
OUT-2-4 outputs: can be configured as Studio Presenter and Studio Guest

Headphones
Unbalanced Outputs: 2 Line out on Jack 6.3 for Control Room Headphones
Adjustable maximum volume Control Room and Studio speakers (Studio Speaker via SW only)
Adjustable maximum volume for control room and studio headphones (studio headphones only via SW)
Adjustable CUT or Mute mode (-40, -30, -20, -10 dB) on control room and

Studio speakers
Independent source selection (PGM, SUB, AUX1, AUX2, EXT) for control room and studio speakers, control room and studio headphones with or without PFL
Independent Talk Back management on Control Room and Studio speakers
Independent Talk Back management on control room, studio headphones
Same source selection for control room and studio headphones, with independent level.

GPI/GPO
GPI: 9 in total, for callback, hybrid phone or other functions
GPO: 9 in total, to control OnAir lights or issue HOOK and RING commands for external phone Hybrid
User-customized GPIs (e.g. Ring, Talkback, Channel ON/OFF, etc.)
User-customized GPOs (e.g. Hook/ONAIR, Studio-Light, Control Room-Light)

Surface & Management
Automatic firmware update via internet
WEB UI for console configuration and service functions (save, restore, update, logs, etc.)
Store and recall EQ presets (up to 10)
New real-time EQ algorithm with graphics
Fast and accurate display of LED meters
Save and recall control panel configuration with 10 snapshots
Save and recall the entire console configuration. The configuration can be saved in internal memory (microSD), USB and PC (via WEB interface)
Gain adjustment knobs with adaptive speed
Dimmable Buttons Light
Adjustable fader ON/OFF threshold (from -50 dB to 0 dB)

Telephone Hybrid and Telco
The built-in telephone hybrid allows direct connection of a POTS/PSTN telephone line to RJ-11C. The audio is processed via DSP which provides state-of-the-art audio processing. It is also available with a Telco N-1 in/out to connect Oxygen 2000 to an external hybrid phone. The Telco N-1 is always available on RJ45. TLC commands are available on the same RJ45 with Hook and Ring interface.
TLC commands for Telco-2-5 are available and configurable on GPIO-DB9 connector with Hook and Ring.

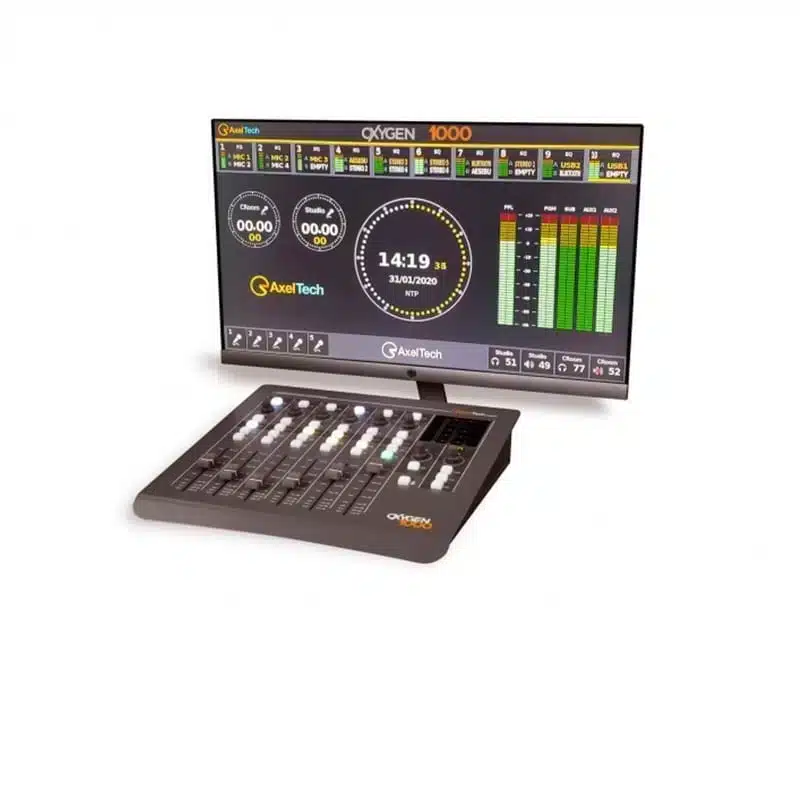

HDMI output
The HDMI output makes it possible to connect an HD display to the console, suitable for use in two flavors:
Monitor, which displays the following information:
Audio Input Source Levels
4+1 BUS output levels
A/B source names assigned to 10 channels
View On-Air Resources
Microphone on timer (control room & studio)
big clock
Audio output level (speakers and headphones)
On-Air Microphone
Phone active
Configure, to configure all device functions.
HDMI output combined with 4 rotary knobs allows fast and intuitive programming of all mixer parameters.
The programming GUI is designed to be very simple and intuitive.
Selectable home page layouts are available, with many themed icons.
HDMI output can be personalized with customer logo. Selectable display formats are available.

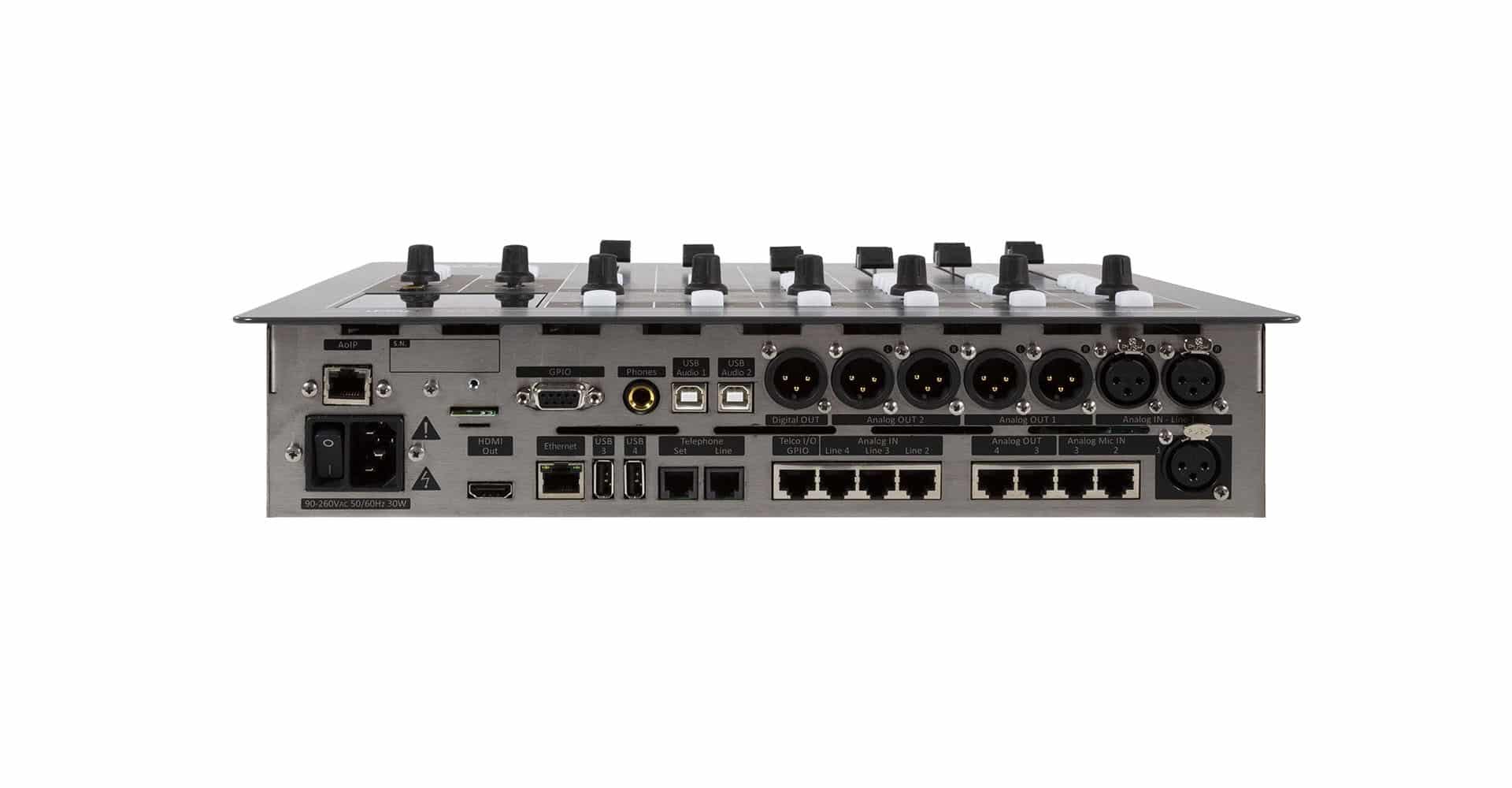

Analog Balanced Microphone Inputs
Connector RJ45 & XLR Balanced – EMI Suppressed
Input Impedance 2,4 KΩ
Nominal Input Level (sensitivity) -9/-66 dBu
Max Input Level (clipping point) +9 dBu
A/D conversion 24 bit / 48 Khz
Signal To Noise Ratio (referred to peak level) >90 dB
THD+N <0,01%
Analog Gain Adjustable +0 ÷ +57 dB (3dB step)
Phantom Power +48V
Analog Balanced Stereo Inputs
Connector XLR & RJ45 Balanced – EMI Suppressed
Input Impedance 10 KΩ
Nominal Input Level (sensitivity) 0 dBu
Max Input Level (clipping point) +18 dBu
A/D conversion 24 bit / 48 Khz
Frequency response +/-0,5 dB from 20 Hz to 20 kHz
Signal To Noise Ratio (referred to peak level) >100 dB
Stereo Separation (referred to peak level) >90 dB
THD+N <0,002 %
Analog Balanced Telco Input
Connector RJ45 Balanced – EMI Suppressed
Input Impedance 10 KΩ
Nominal Input Level (sensitivity) 0 dBu
Max Input Level (clipping point) +18 dBu
A/D conversion 24 bit / 48 Khz
Signal To Noise Ratio (referred to peak level) >100 dB
THD+N <0,002%
PSTN Interface
Connector RJ11
Transhybrid loss >20 dB
Analog Balanced Stereo Outputs
Connector RJ45 Balanced – EMI Suppressed
Output Impedance 23 Ω, nominal 600 Ω
Nominal Output Level 0 dBu
Max Output Level (clipping point) +18 dBu
D/A conversion 24 bit / 48 Khz
Signal To Noise Ratio (referred to peak level) >100 dB
Stereo Separation (referred to peak level) >90 dB
THD+N <0,002 %
USB Audio Digital I/O
Connector USB Type B – EMI Suppressed
Playback And Recording Sample Rate SRC 44.1-48 KHz
Resolution 16 bit
Available Stereo Channels 1 Play & 1 Rec for each USB interface
Digital Output
Connector Balanced on 1 XLR – EMI Suppressed
Input Impedance 110 Ω
Standard AES3
Audio Sample Rate 48 KHz
Resolution 24 bit
Dynamic Range (Converter Values) 124 dB
Analog Balanced Telco Output
Connector RJ45 Balanced – EMI Suppressed
Output Impedance 23 Ω, nominal 600 Ω
Nominal Output Level 0 dBu
Max Output Level (clipping point) +18 dBu
D/A conversion 24 bit / 48 Khz
Signal To Noise Ratio (referred to peak level) >100 dB
THD+N <0,002 %
System
Audio Core Analog Devices ADAU1452 32bit 294 MHz fixed point DSP
Audio CODECs Cirrus CS42448 24 bit/192 kHz
System Core Allwinner A20 dual core cortex-A7 at 800MHz, 1GB RAM
LAN Connection RJ45 – 100Mbit
Nominal Delay (analog input to analog output) 0,7 ms
GPIO Inputs/Outputs 4 GPI/4 GPO on DB9; 4 GPI/2 GPO on Mic2 & Mic3 RJ45; 2 GPO on Out3 & Out4 RJ45; 1 GPI/1 GPO on Telco RJ45
Communication Port 2xUSB type-A, 2xUSB type-B , 1xLAN, 1xHDMI
Operating Temperature 0°C ÷ 40°C
PSU
Power Supply 90-260 VAC / 47-63 Hz / 30 W
Dimensions
Dimensions (W; H; D) 344mm; 80mm; 343mm
Weight < 5Kg
