Description
Axel Tech Macrotel X1 Multimode Phone Hybrid
The new generation of Macrotel X introduces the AxelTech Multimode Technology. The internal framework based on DSP (Digital Signal Processor) allows to work in real time achieving the highest audio performance. This Technology sets Macrotel X1 Multimode and Macrotel X2 Multimode as cutting-edge equipment in the telephone interface technology and allows managing one or two telephone connections: POTS (Plain Old Telephone Service) landline, VoIP, Bluetooth or GSM (with optional interface). With Macrotel X2 Multimode any technology combination is possible.
Audio enhancement features are custom designed to guarantee the best quality in phone calls. Thanks to AxelTech’s ten-year experience in the field of audio processing we should consider this product not a common telephone hybrid but a Telephone Audio Processor able to shape the sound to optimize the yield of every single phone call. In fact the new Macrotel X Multimode series integrate a powerful DSP system that takes care of the telephone signal process:
- Automatic Gain control (AGC)
- Echo canceller
- Hold caller/Attenuator
- Expander and Compressor
- Audio Limiter
- 3 Bands Fully parametric Equalizer
The new Macrotel X Multimode range does not require the installation of any software: the unit has an integrated Web server supporting the most popular browsers (Chrome, Firefox, Explorer, Opera, etc.). A simple and intuitive GUI can be accessed through any device: PC, notebook, tablet, smartphone, etc. For services synchronization and logs the Macrotel connects to a NTP server.The main XLR input and output connectors can manage analogue or AES/EBU signals according to the device settings (AES/EBU input/output is optional). A second XLR analogue output is anyway available. In Bluetooth mode the two outputs act like a stereo balanced output. Macrotel X Multimode is able to record the telephone calls audio on a USB flash memory plugged in the USB front panel slot.
Audio will be recorded in PCM format with a self-explaining filename based on date/time and can include only the RX audio or both RX and TX signals. Moreover it’s possible to send an RTP-PCM audio stream to an external PC to record the call. This recording can include only the RX audio or both RX and TX signals. A multiple GPIO port allows to manage the device from external equipment, like audio console or PC. System sends “Ring”, “Hold”, “Hook” and “REC” status and manages “Hook”, “Rec”, “Mode” and “Hold” functions.

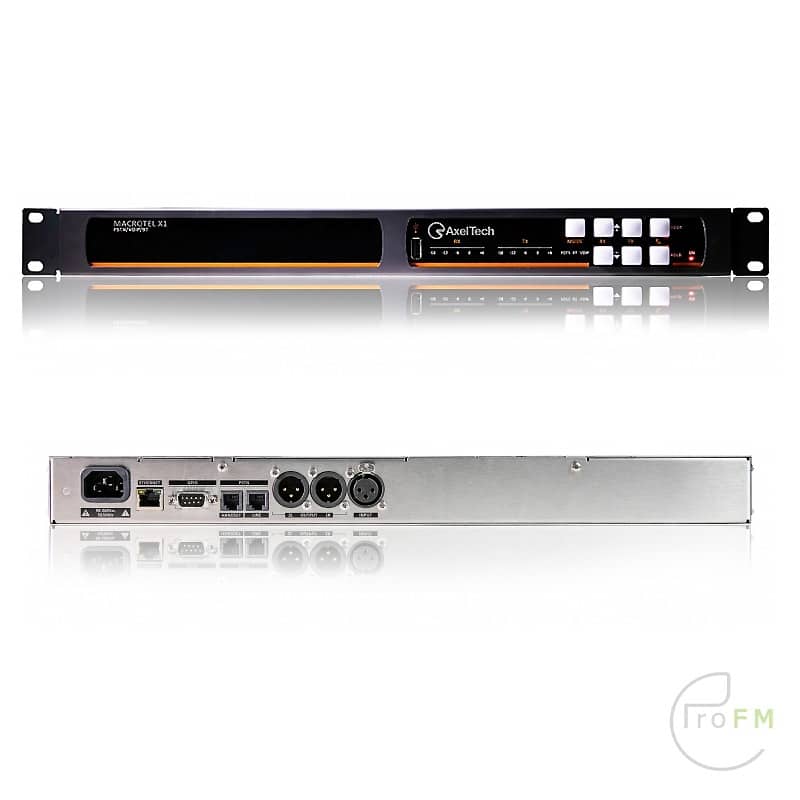

On the front panel an audio meters with 18 LEDs shows the RX and TX audio level of each channel. Additional LEDs show working Mode and Power on.
Power supply can be between 90 and 260 V AC – 50/60 Hz: this allows to use it worldwide.
MAIN FEATURES
- Analog and AES/EBU digital inputs and outputs
- 1 line and 2 lines models
- POTS/PSTN and GSM Quad Band (option)
- Integrated web server for remote control
- Digital AGC processor with 3 bands fully parametric EQ
- Digital Echo canceller
- Separate send and receive
- LAN and USB ports
- Auto answer and disconnection
- Balanced XLR I/O (mic/line)
- Remote control software and dialer
HIGHLIGHTS
- Multi-Line digital telephone hybrid POTS/GSM/VOIP
- Echo cancellation through a digital process on DSP (POTS)
- Advanced audio processing functions: AGC, Parametric EQ, Audio filters, Compressor, Expander add Limiter
- Internal Web Server allows device configuration
- Automatic setup
- 1 selectable XLR input: Analog or AES/EBU (AES/EBU is optional)
- 1 selectable XLR output: Analog or AES/EBU (AES/EBU is optional)
- 1 balanced XLR analogue output
- Phone call recording in PCM format on USB support (RX only or RX+TX)
- Front panel Led Meters displaying RX/TX levels
- Audio stream generation in RTP/PCM format (RX only or RX+TX)
- Front panel LED: Gain RX, Gain TX, Mode
- “Hook” and “Hold line” lighted buttons
- 4 GPI interfaces, 4 GPO interfaces
- Integrated Caller Identifier (CID) – only for VOIP
- Input and output call logs
- G711-G722 VOIP audio codecs
- Local telephone output (POTS)
GENERAL FUNCTIONS

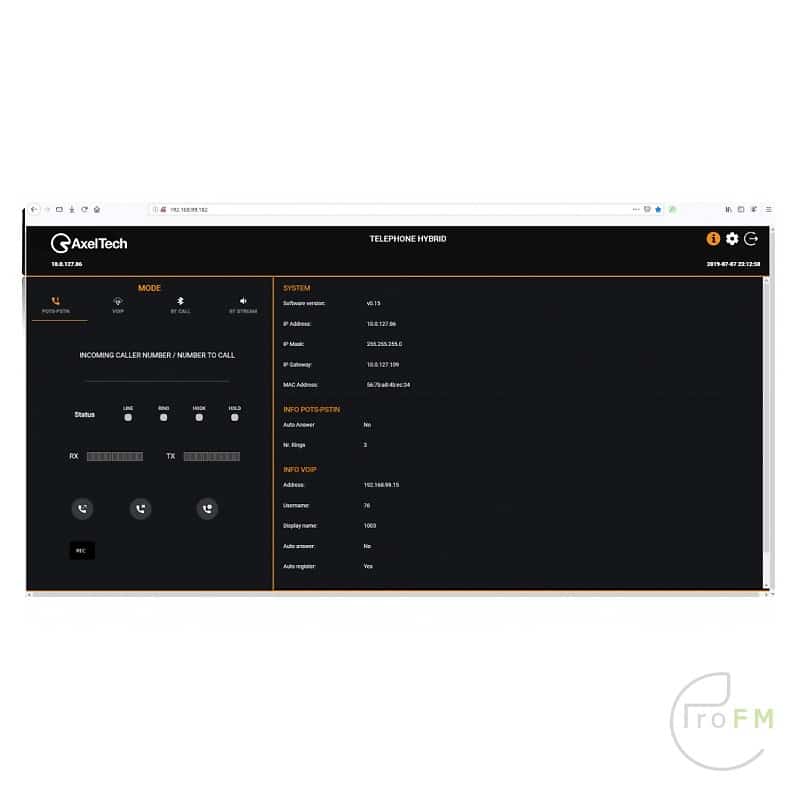

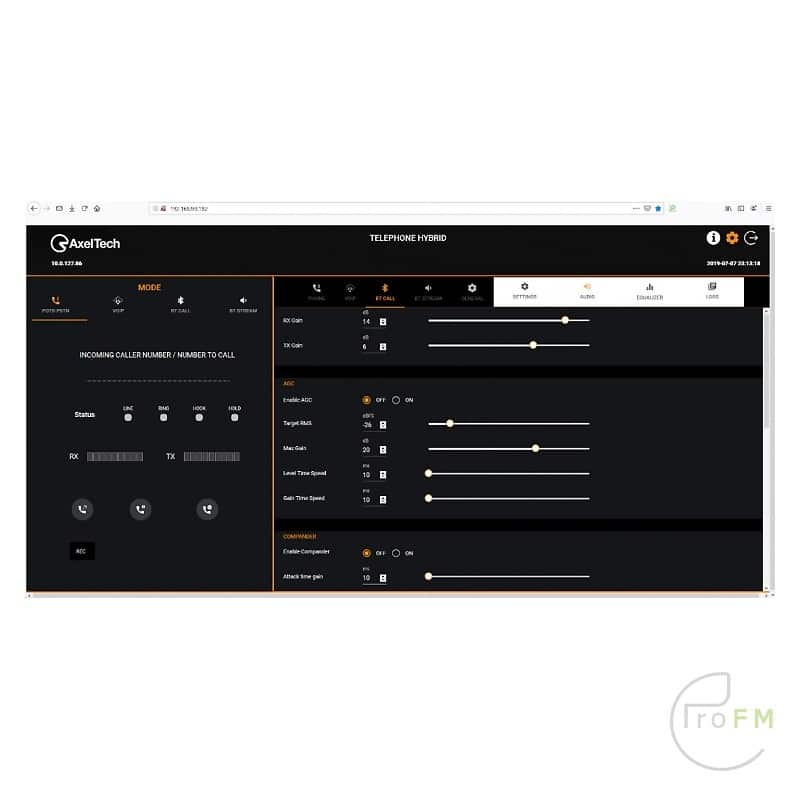

The integrated web server allows configuring the Macrotel X parameters through a web interface.Web user-friendly GUI is available on any kind of device: PC, notebook, tablet, smartphone.
Macrotel X supports many TCP/IP standards such as HTTP for web GUI and UDP for streaming.Connection to external NTP server (Internal RTC with buffer) for time synch. Ethernet/GPIO connection available.
Stainless steel enclosure. Front panel with 22 levels and status LEDs.
Power supply: 90-260V AC 50/60 Hz – 10 W (green approach).
POTS MODULE
Standard RJ11 sockets for connecting the telephone line and external telephone set.
Internal DIAL system via DTMF for direct call (no need of an external telephone set).
Logs phone numbers of incoming and outgoing calls (date, call time start, call time end).
Exporting logs available on USB key.
The external telephone set can be release when the telephone hybrid hooks the line.
Automatic telephone line hooking (after a settable number of rings).
Automatic telephone line release based on the “dropped line” tone (this feature can be disabled). Adjustable AGC, Compressor/Limiter and Equalizer parameters.
Adjustable Telephone band (Low or Hi-Cut).
VOIP MODULE
Standard network RJ45 connector.
SIP version 2.0 (RFC 3261).
Authentication methods: SIP/IAX Dynamic Registration (Register) | SIP Static IP authentication.
Supported audio codecs: G.711u (PCM u) | G.711a (PCM a) | G.722 | G.722.1 24/32.
Automatic telephone line hooking (after a settable number of rings).
Automatic telephone line release based on the “dropped line” tone (this feature can be disabled).
Logs phone numbers of incoming and outgoing calls (date, call time start, call time end). Exporting logs available on USB key.
Adjustable AGC, Compressor/Limiter and Equalizer parameters.
Supported PBXs and Phone Service Providers
Macrotel X1/X1 require interoperability with established VoIP providers.
Such services are delivered via either a SIP-based IP PBX or a cloud-based telephone service provider.
Each of these services can be quite complex and such complexity is reflected in the difficulties that sometimes arise when configuring AxelTech products to interact with them.
AxelTech constantly strives to ensure that its products are as compatible as possible with these types of services, but the continuous and inevitable evolution of firmware and hardware between AxelTech and third-party systems can cause inevitable incompatibilities.
It is therefore important to remember that changes made by service providers or by the PBXs themselves can cause compatibility problems with AxelTech products.
Below we have listed the PBXs and VoIP service providers that have been used successfully by our customers with our products.
This does not mean that these services are fully compatible with those products 100% of the time, as these services are constantly evolving.
Rather, it means that at least one AxelTech customer has reported that their system currently interacts successfully with our products. This does not mean that AxelTech has directly tested the compatibility.
It is our hope that this document will lead customers who are considering using our products with services other than those listed below, to contact our technical support team before purchasing this service.
As stated above, the worlds of PBX and VoIP are complex and ever-changing. This combined with the reality of limited resources prevents us from making our devices compatible with every service in every firmware version. If you have difficulty interacting with your AxelTech product with your PBX or VoIP provider, please contact AxelTech technical support for ideas or alternative solutions.
Finally, we will allow the customer to return the AxelTech product and obtain a refund if the device is not compatible with the service he has selected.
As of March 2021, the following services are reported as compatible with AxelTech Products:
Supported PBXs: Asterix
Supported VoIP Providers: Olimon Tel
BLUETOOTH MODULE
Fully certified Bluetooth version 3.0 audio module, compatible with Bluetooth version 2.1 + EDR, 1.2, and 1.1.
SIP version 2.0 (RFC 3261).
Embedded Bluetooth stack profiles: A2DP and HFP/HSP.
Supports iAP profile discovery for iPhone® and iPod® Bluetooth accessories G.711u.
Dual-channels differential audio input and output for highest quality audio.
Certifications: FCC, IC, CE.
Adjustable AGC, Compressor/Limiter and Equalizer parameters.
GENERAL
Power supply: 90-260 V AC / 47-63 Hz
Power consumption: 10 W
Dimensions WxHxD: 483 x 44,5 x 140 mm (1 rack unit 19”)
Weight: < 2Kg
ANALOG AUDIO INPUT
Connectors: Balanced on XLR – EMI Suppression
Input impedance: 50 KΩ
Nominal Input Level (sensitivity): Adjustable via software: -9 dBu +15,0 dBu
Level range: –20,0 dBu + 20,0 dBu
Input level max.:
+20,0 dBu
CMRR input: >60 dB (20 Hz 20 kHz)
DIGITAL AUDIO INPUT (OPTIONAL)
Connectors: Balanced on XLR – EMI Suppression
Input impedance: 110 KΩ
Format: AES3/EBU & SPDIF
Sample rate: 32, 44.1, 48, 64, 88.2, 96 KHz
Nominal Input Level (sensitivity):
From 0,0 dBFs to –24dBFs (0,1dB step)
Level range:
0,0 dBFs -36dBFs
ANALOG AUDIO OUTPUT
Connectors: Balanced on XLR – EMI Suppression
Output impedance: 47 KΩ
Output level: Adjustable via software: -9dBu +15,0 dBu
Level range: –20,0dBu + 20,0dBu
Output level max.: + 20,0dBu
CMRR output: >60dB (20Hz 20kHz)
DIGITAL AUDIO OUTPUT (OPTIONAL)
Connectors: Balanced on XLR – EMI Suppression
Input impedance: 110 KΩ
Format: AES3/EBU
Sample rate: 32, 44.1, 48, 64, 88.2, 96 KHz
Nominal Input Level (sensitivity):
From 0,0 dBFs to –24dBFs
Level range:
0,0 dBFs -36dBFs
POTS INTERFACE
Connectors: 2x RJ11 Line and Telephone set
Output impedance: Selectable
Bandwidth telephone line 170Hz – 4.6kHz
Echo canceller suppression: > 40dB
VOIP INTERFACE
Protocol: SIP Version 2.0 – RFC 3261
Codec Audio Compatibility: G.711u (PCM u), G.711a (PCM a), G.722, G.722.1 24/32
Authentication Methods: SIP/IAX Dynamic Registration (Register) SIP Static IP authentication
BLUETOOTH INTERFACE
Compatibility: Fully certified Bluetooth version 3.0 audio module, Fully compatible with Bluetooth version 2.1+EDR Compatible with 1.2 and 1.1
Connection mode: Embedded Bluetooth stack profiles: A2DP and HFP/HSP
IOS: Supports iAP profile discovery for iPhone® and iPod® Bluetooth accessories G.711u (PCM u)
GENERAL
GPIO Inputs/Outputs: 4 GPI 4 GPO
Communication Port: 1xLAN
Front Panel LEDs: 18+4+2
USB: Type A
Operating Temperature: 0°C ÷ 50°C
COMMUNICATION
Configuration Software: Web Server
Password Protection: Yes
UDP, TCP, HTTP, SNTP. Yes
Supported Network Protocols: HTTP, UDP, TCP, NTP,
