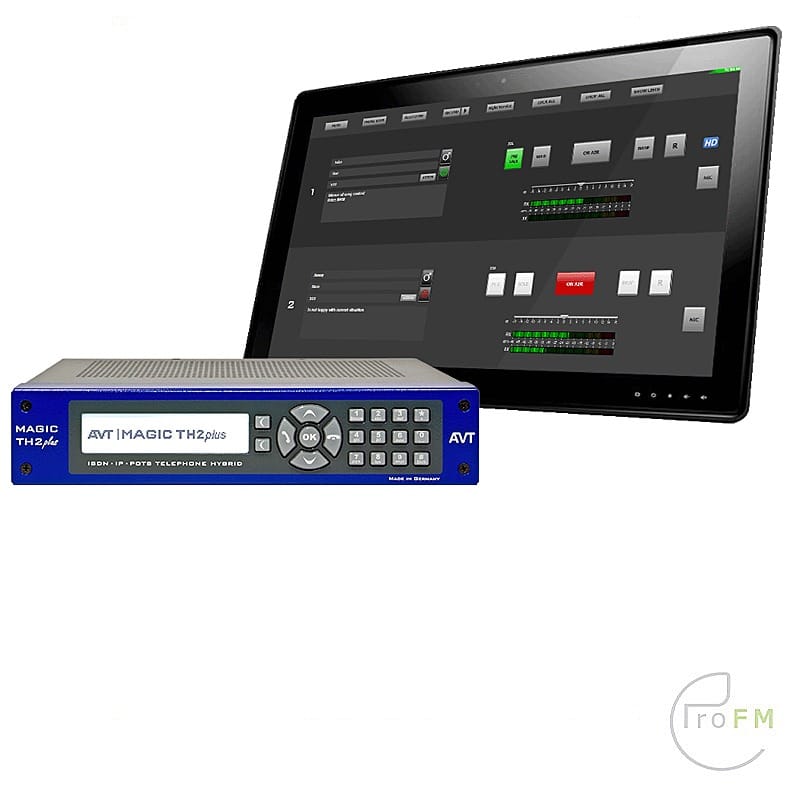

Pro FM Broadcast - AVT MAGIC TH2plus Phone Hybrid with Tablet
AVT TH2plus V2 Tablet
AVT logo - Pro FM Broadcast

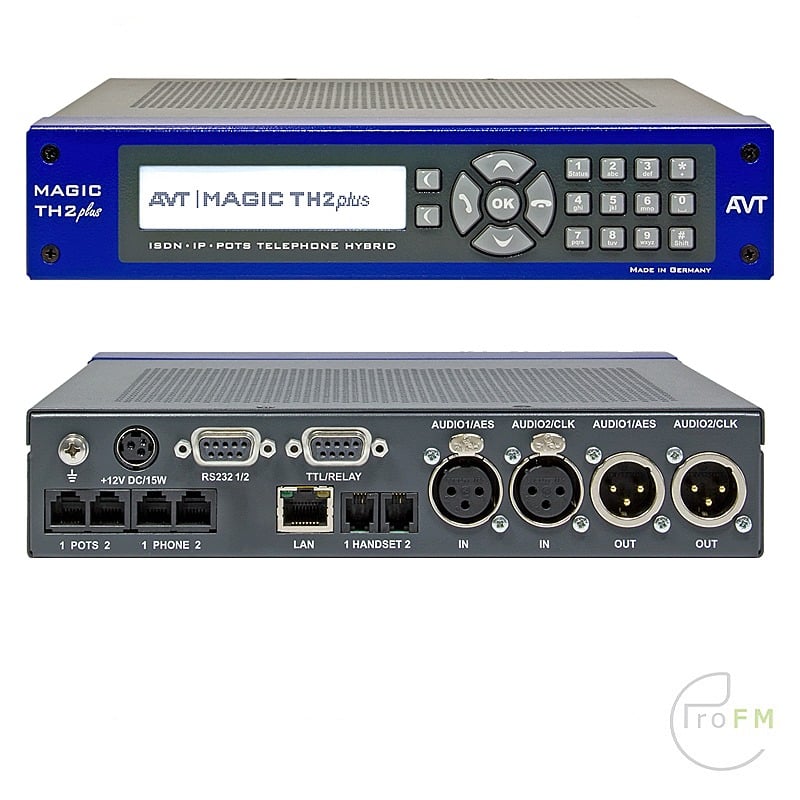

AVT MAGIC TH2plus V2 Telephone Hybrid

$2 862.00

AVT MAGIC TH2plus V2 Telephone Hybrid

Step into a world where communication and connections are made effortlessly. The AVT MAGIC TH2plus V2 Phone Hybrid, is a masterpiece of its kind, interweaving the power of technology with the elegance of design, creating an unparalleled experience.

Shipping duration: 7 - 14 days

Options and Upgrades

Select yout Option(s) below:

The software activation allows the LAN interface of the MAGIC TH1 Go to be used for VoIP calls

To use the POTS interface for connection to analogue telephone line

The AES67 upgrade allows the use of four additional audio channels (4 x RX (1 Stream) und 4 x TX (1 Stream)) over IP via AES67

With this Upgrade the LAN connection between the control PC and the hybrid can be used for Pretalk

a reporter can use the Remote Reporting (DTMF Tone Anaylyzer upgrade is required)Upgrade to carry out a live report via his mobile phone

to be used with remote Reporter Upgrade

The Ember+ Consumer Extension licence is used for DHD mixers, for LAWO consoles the Ember+ Dial Pad Extension licence is used.

. This license includes Ember+ and DHD SetLogic, as well as a SQL database.

Central management software allows a clear presentation of all MAGIC Units

POTS Telephone with DTMF Control

MAGIC TH1 Go DUAL 19” Mounting Kit (for 2 units only)

Product price: $2 862.00
Total options:
Order total:
Add to wishlist
Category: SKU: 754 Tag:

Description

AVT MAGIC TH2plus V2 Telephone Hybrid

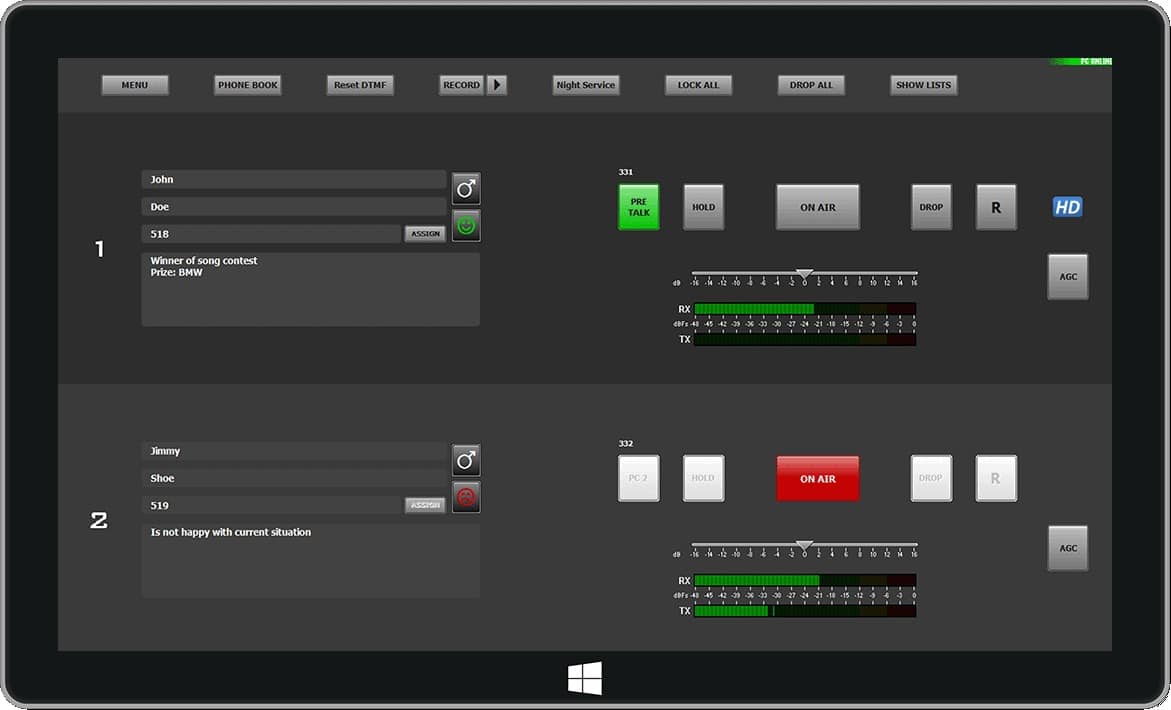

The operation and configuration can be done via the front keypad and the graphical display. Alternatively, an operation via the GPIO contacts and the Windows PC Software, which is included in delivery, is also possible.. The software allows you to configure and control the system with a PC via LAN. Both caller lines are clearly displayed and if desired a manual level adjustment is possible. Screening information about the callers can be stored in a database. The stored caller information is immediately available when the calling number is transmitted. With the help of additional MAGIC TH2plus V2 Software licences you can install up to two further operator or Screener workplaces.



Features

  • POTS, ISDN and IP Talkshow System:  Double hybrid with analogue and digital Audio interfaces
  • Digital signal processing: Digital Echo Canceller, Automatic Gain Control (AGC) and Expander for each channel
  • Pretalk Function: Up to two Handsets or Headsets can be connected
  • HOLD Signal: recording of a HOLD Signal or ON AIR Signal as HOLD Signal
  • Connection of up to two external Keypads
  • Comfortable PC Software with Screening Function
  • Coloured front keypad for fast and easy operation without PC Software
  • Voice Disguise: The caller’s voice can be changed to protect his identity
  • Digital 2-channel telephone hybrid
  •  2 integrated echo cancellers, expanders and AGCs
  •  2 individual hybrids
  •  2 x POTS + 2 x Phone Interfaces
  •  1 x ISDN BRI (2 B channels)
  •  1 x LAN (control, optional VoIP)
  •  2 x Audio channels (analogue or AES/EBU)
  •  2 x Handset/Headset interfaces
  •  2 x Keypad control interfaces
  •  1 x MAGIC TH2plus Software
  •  Conferencing functionality
  •  DTMF tone transmission
  •  EMBER+ / DHD SetLogic support
  •  19” Mounting brackets for rack installation
  •  19” x 1 U housing
  •  Integrated wide area power supply
Description

AVT MAGIC TH2plus V2 Telephone Hybrid

The operation and configuration can be done via the front keypad and the graphical display. Alternatively, an operation via the GPIO contacts and the Windows PC Software, which is included in delivery, is also possible.. The software allows you to configure and control the system with a PC via LAN. Both caller lines are clearly displayed and if desired a manual level adjustment is possible. Screening information about the callers can be stored in a database. The stored caller information is immediately available when the calling number is transmitted. With the help of additional MAGIC TH2plus V2 Software licences you can install up to two further operator or Screener workplaces.



Features

  • POTS, ISDN and IP Talkshow System:  Double hybrid with analogue and digital Audio interfaces
  • Digital signal processing: Digital Echo Canceller, Automatic Gain Control (AGC) and Expander for each channel
  • Pretalk Function: Up to two Handsets or Headsets can be connected
  • HOLD Signal: recording of a HOLD Signal or ON AIR Signal as HOLD Signal
  • Connection of up to two external Keypads
  • Comfortable PC Software with Screening Function
  • Coloured front keypad for fast and easy operation without PC Software
  • Voice Disguise: The caller’s voice can be changed to protect his identity
Specifications
  • Digital 2-channel telephone hybrid
  •  2 integrated echo cancellers, expanders and AGCs
  •  2 individual hybrids
  •  2 x POTS + 2 x Phone Interfaces
  •  1 x ISDN BRI (2 B channels)
  •  1 x LAN (control, optional VoIP)
  •  2 x Audio channels (analogue or AES/EBU)
  •  2 x Handset/Headset interfaces
  •  2 x Keypad control interfaces
  •  1 x MAGIC TH2plus Software
  •  Conferencing functionality
  •  DTMF tone transmission
  •  EMBER+ / DHD SetLogic support
  •  19” Mounting brackets for rack installation
  •  19” x 1 U housing
  •  Integrated wide area power supply
Video

Additional information

Weight 5 kg
Dimensions 55 × 30 × 20 cm

Brand

AVT

AVT  AVT logo - Pro FM Broadcast

AVT Audio Video Technologies GmbH was established on October 1, 1996 in Nuremberg as management of Lucent Technologies (formerly Philips communication Industry AG). For more than 20 years the company has been supplying broadcasters and service providers around the world with innovative Magic products in the field of audio IP codec, telephone hybrids, and complete telephone exchanges with telephone devices. Magic DAB Mux fully meets the future requirements. AVT products are manufactured by German contractors who are ISO 9001 certified. The development department and the sales and marketing department are located in Nuremberg. Because they do the manufacturing themselves, there is always a fast delivery. The aim  is to achieve excellent quality in the design, development and performance of our products to meet the needs of our customers. That is why we have kept our range flexible enough to easily meet our customers' requirements. Because AVT wants to introduce everyone to these products, they are also often at fairs. They are often on multiple exhibitions in a year. If you have any questions about our products, call or email us so that we can take away your doubts.
