Description

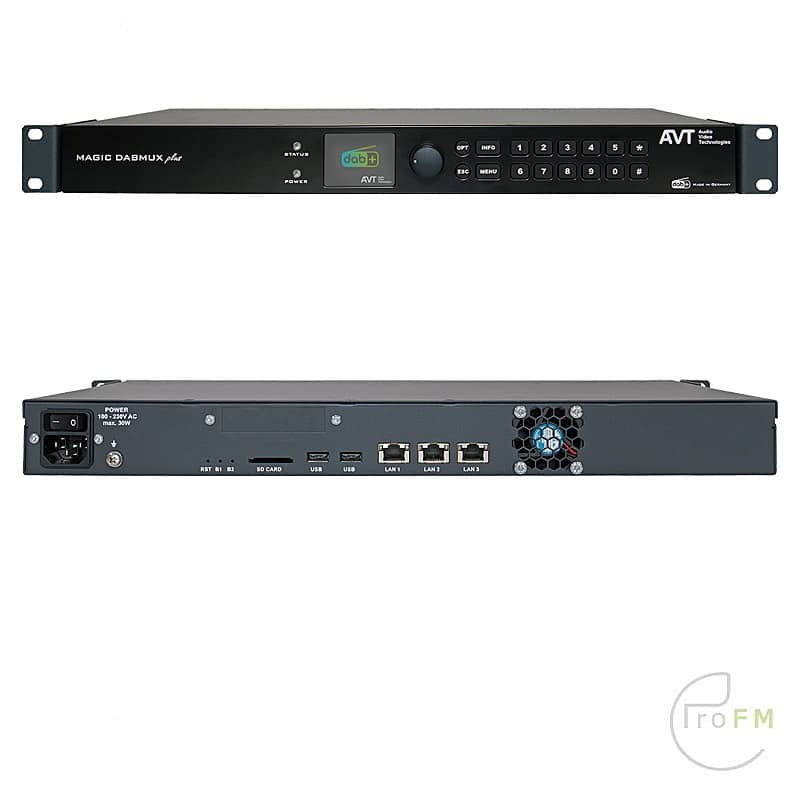

AVT MAGIC DABMUX plus Monitoring Decoder
The MAGIC DABMUX plus Monitoring Decoder enables monitoring of the DAB transmission signal at any location in the EDI distribution network. Depending on the configuration, up to 50 EDI streams are being monitored and checked for errors. An ensemble can be fully decoded, with up to 25 programs being decoded and listened to simultaneously.
By default, the system allows the use of one EDI input and one decoder incl. service monitor as well as simultaneous DLS and SLS decoding for all programs.
The system is based on our reliable DSP based hardware platform which is also used in the MAGIC DABMUX plus multiplexer.

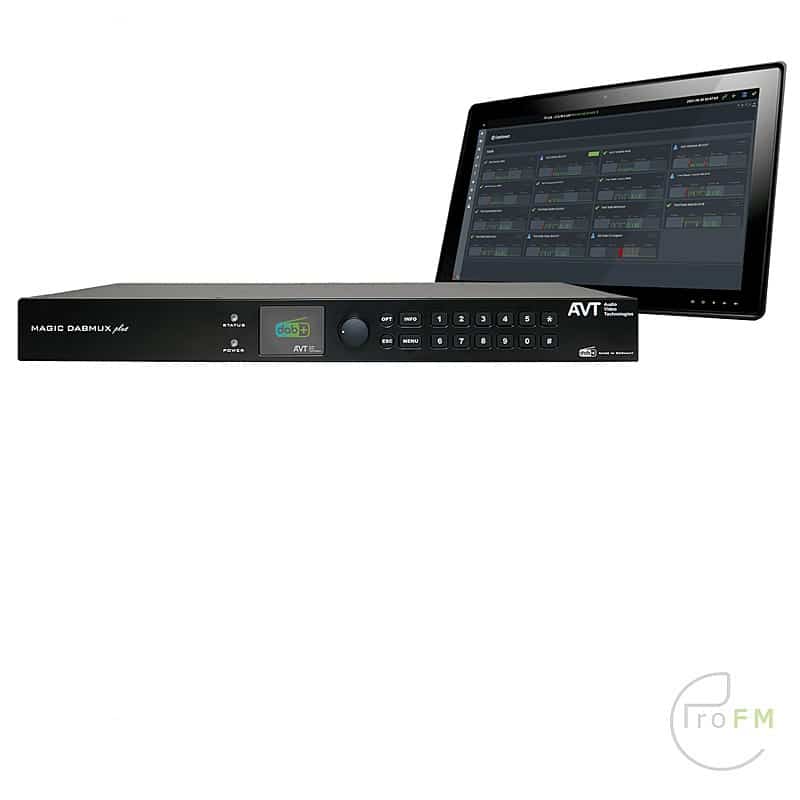

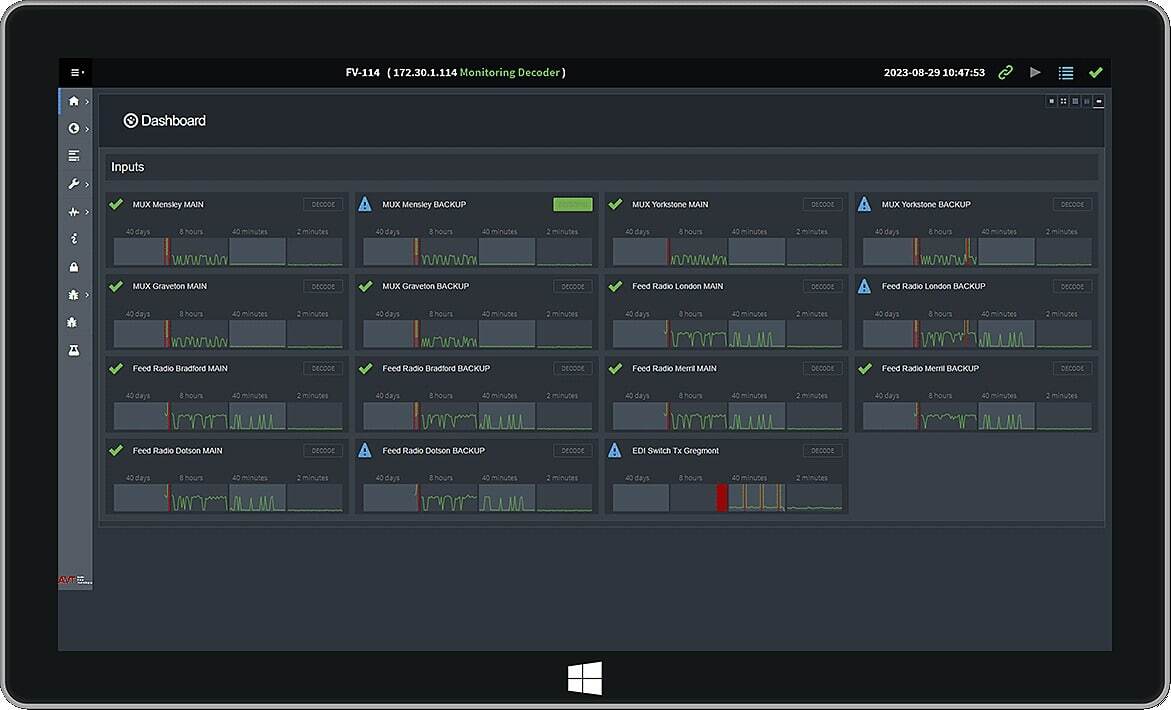

The comfortable web interface displays all monitored EDI streams in an overview. With the service monitor incl. webstream decoder the selected program can be listened to directly in the browser. Additionally an output via AES67 is available.
All decoded programs can be displayed with audio levels and PAD(Slideshow and Dynamic Labels).
Relevant information are monitored on different levels simultaneously:
- EDI input monitoring for all (up to) 50 EDI streams
- Ensemble and Service Information (ID, label, time, ensemble, load) for the currently selected input.
- Audio and PAD decoding for the currently selected service/subchannel.
- Service logo extraction for each program.
Statistics, ensemble events, warnings and errors are stored in the log file of the device. The log entries can be filtered to display only relevant information.
Integration into a network management system is also possible via SNMP. Optionally, the system can also be monitored externally via the AVT DAB System Manager.
Features:
- DAB & DAB+ Monitoring Decoder
- Up to 50 x EDI Input for Monitoring
- 1 x ETI Module (optional)
- 1 x Ravenna Module (optional)
- Up to 25 x audio programmes (decoding and monitoring)
- Monitoring the audio signal
- Integrated level monitoring
- 3 LAN interfaces for EDI, control and AES67
- Ember+, SNMP v1/v2c
- Monitoring of all service information
- PAD & NPAD monitoring
- TA monitoring, PTy Analysis
- Service Logo Extraction
- Integrated error memory with date and time
- Intuitive Configuration and Monitoring Software
The EDI Input Extension extends the MAGIC DABMUX plus Decoder by an additional EDI input that can be monitored.
Up to 50 EDI inputs can be configured.
The EDI Input Extension adds an additional audio decoder to the MAGIC DABMUX plus Decoder.
The input via AES67 is included with each decoder. Up to 25 audio decoders can be configured.
With the Ravenna/AES67 interface card for the MAGIC DABMUX plus Monitoring Decoder, the audio inputs/outputs can be routed via IP to Ravenna® or AES67 compatible mixing consoles.
The module already supports the NMOS specifications for Discovery & Registration and Device Connection Management, so integration into large AoIP networks is greatly simplified.
Please note that either the Ravenna module, the Dual LAN module or the ETI module can be equipped.
An ETI module is optionally available. The E1 output has an impedance of 75 ohms.
Please note that either the Ravenna module, the Dual LAN module or the ETI module can be equipped.
With the Dual LAN module, the system can be expanded by two 100 Mbps Ethernet interfaces, so that a total of five Ethernet interfaces are available.
Please note that either the Ravenna module, the Dual LAN module or the ETI module can be equipped.
A 12 V desktop power supply unit for redundancy is optionally available.
