AVT MAGIC ACX Dante® WAN Bridge
The multi-channel PCM system MAGIC Dante® WAN Bridge enables the transmission of up to 32 uncompressed audio signals via wide area networks (WAN).
By default, 8 Dante® channels are available and can be extended to 16, 24 or 32 channels via a software upgrade.
The audio connection for the audio inputs/outputs is provided by the integrated 32-channel Dante® interface, which has redundant GbE interfaces and of course also supports AES67.

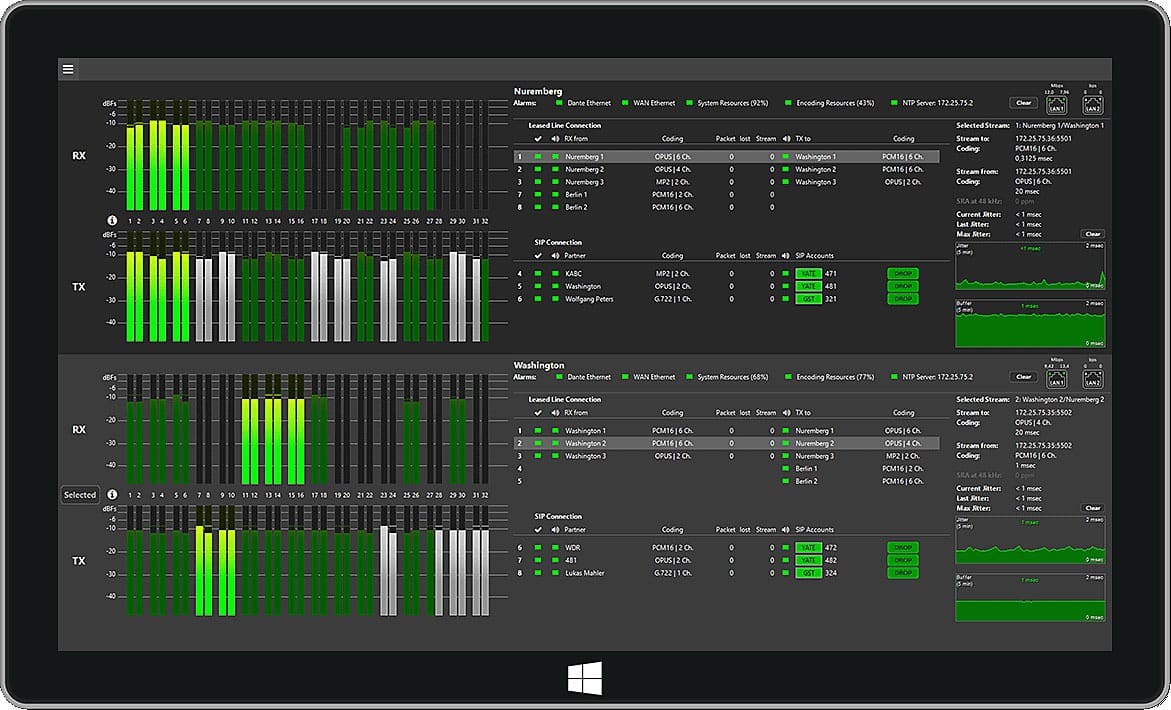

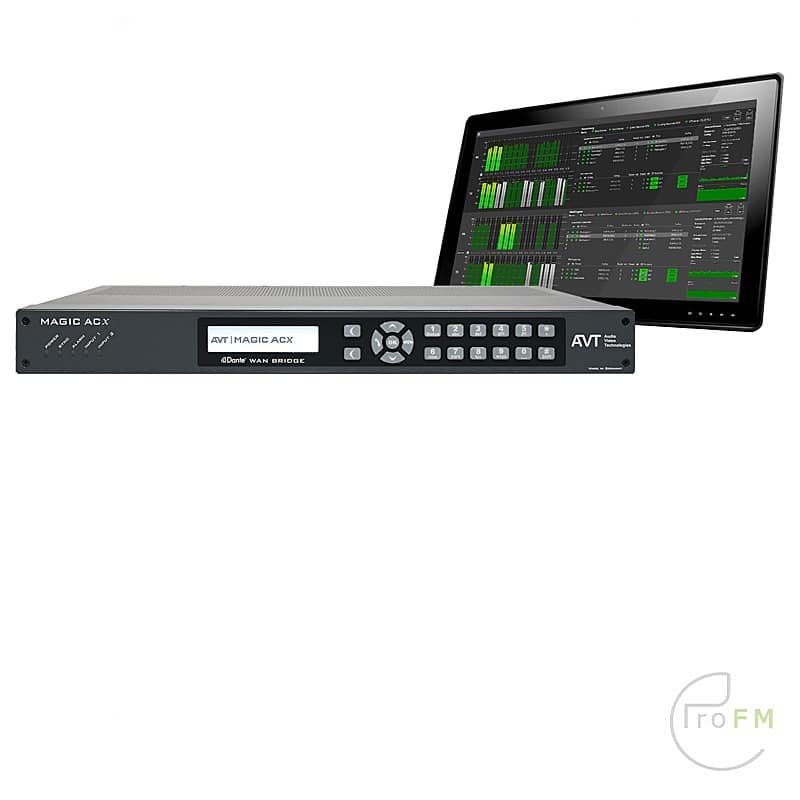

The comfortable operating software allows the management of up to 10 systems including graphic surveillance and can be operated from up to 5 workplaces simultaneously.
The front display of the system also shows essential information on the status of the transmission.
Functions:
The coding is done via PCM16 / PCM24.
Since the limited maximum latency of Dante in wide area networks, high jitter and possible clock differences between sender and receiver prevent a reliable transmission.
The MAGIC ACX Dante® Wan Bridge solves these problems with a jitter buffer including automatic mode and intelligent sample rate adaption (SRA).
Features:
- Up to 32 audio channels via Dante®
- AES67 compatible
- PCM16 / PCM24
- 48 kHz Sampling frequency
- Automatic Sampling Rate Adaptation
- Jitterbuffer bis 500 ms
- Audio signal detection
- 2 x 100 Mbit/s Ethernet
- 8 x TTL GPIO / 8 x Relais
- VLAN/QoS-support
- SNMP v1, v2c
- System internal log file
- Optional redundant power supply
- Comfortable Windows management software

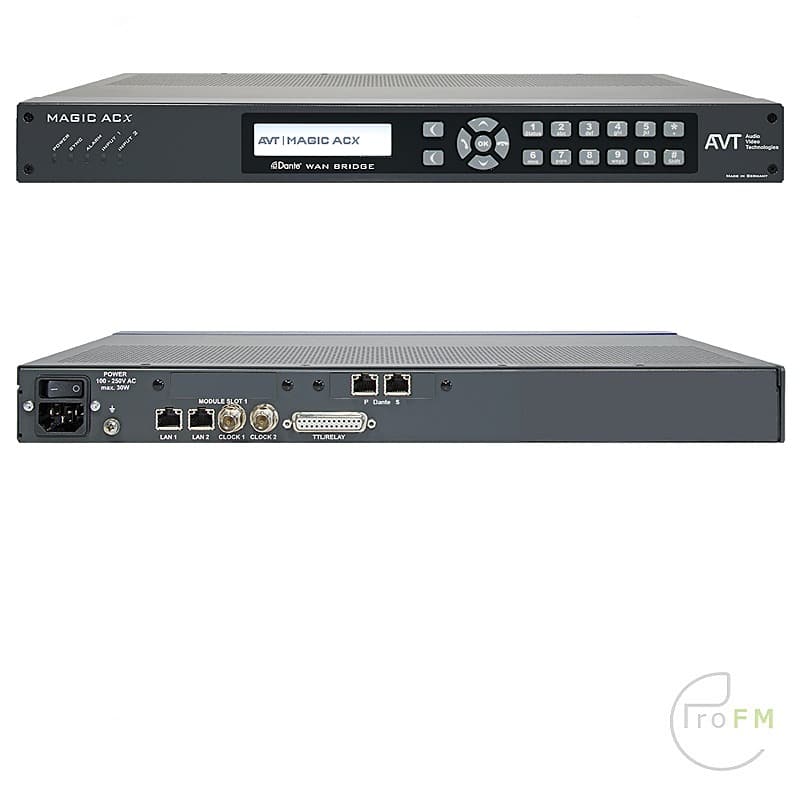

- Technical Data Line Interfaces: 2 x LAN
- Coding Algorithms: PCM 16/24 Optional:G.722 MPEG Layer 2 Opus
Sampling Frequencies 48-kHz (44,1Khz On request) - Data Rates: 64 – 36.864 kbit/s
- AoIP Channels: 32 x RX/TX Dante® (native) 32 x AES67 (8 streams)
- Secure Streaming for IP Leased Line Mode: Yes
- Control Interface: GPIO (8 x TTL, 8 x Relays) 2 x LAN
- TTL Interface (GPIO): 6 x Input/Output, programmable SUB-D 25-pin
- Relay Contacts: 6 x NC/NO, programmable SUB-D 25-pin
- Power Supply: 100 – 230 V + 5V table top PSU (optional)
- Dimensions: 19”, 1U
