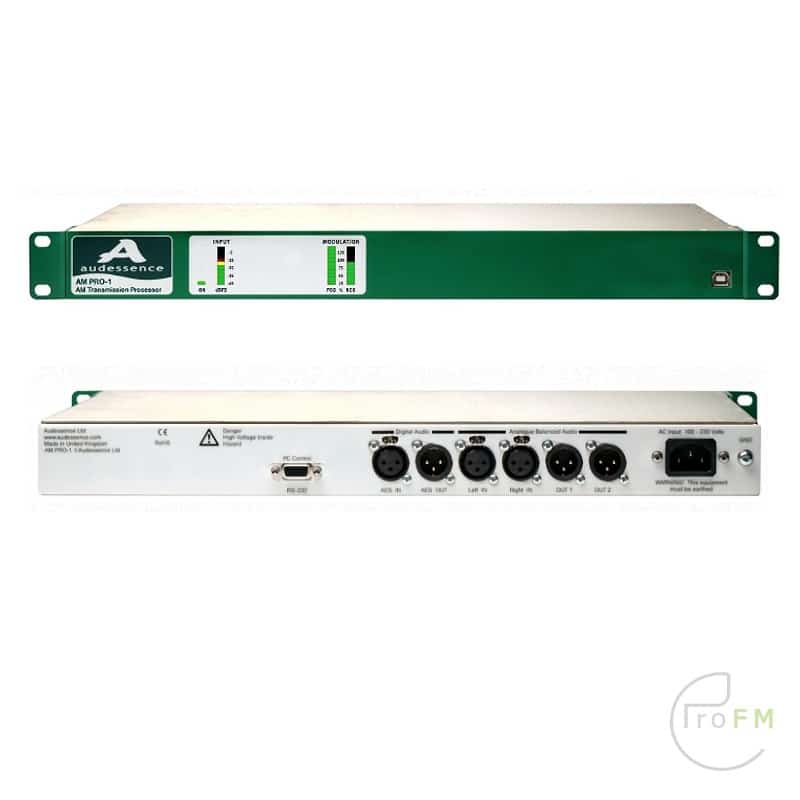

Audessence AM PRO-1 AM Digital Audio Processor.

The Audessence AM PRO-1 is a complete air-chain audio processing system for AM radio stations. Adjustable input pre-filtering (lowpass and high-pass) pre-conditions audio to prepare for aggressive ‘brick-wall’ low-pass filtering later and avoids wasting modulation percentage on inaudible sub-bass components Unsurpassed Audessence AGC developed for the professional Audessence levellers keeps programme level as consistent as desired Programme compression, limiting, pre-emphasis and clipping for optimum loudness and coverage increase All this plus enhancement features for brightening and clarifying your programme.Adjustable Low-Pass filtering meets all international and national broadcasting specifications including ITU and NRSC (4kHz to 15kHz nominal).

FEATURES:

• Complete digital air-chain processing for AM radio broadcasters in a compact package
• Adjustable input High-pass filter 3Hz to 200Hz
• Phase rotator to reduce programme asymmetry
• Advanced AGC as used in our ALPS levellers offers unsurpassed rapid control of levels
• Independent programme compression stage
• Presence enhancer to brighten programme and cut through noise
• Choice of pre-emphasis to meet national requirements including NRSC
• Adjustable low-pass filter for all applications
• Fco 4.5kHz to 10kHz
• Sophisticated peak control dramatically increases loudness without digital grunge
• Positive peak asymmetry up to 145% (where legal)
• Factory presets deliver exactly the results you need for any application …fast
• No-tamper front panel (set-up by PC only: GUI software, USB and RS-232 ports provided)
• Bright, Always-Visible LED bargraphs for audio confidence checks
• Low audio latency (4 milliseconds)
• Fast boot-up (<1 second).

Frequency Response (All filters set for minimum action):
DIGITAL-DIGITAL: 20Hz-14.9kHz /-0.1dB
ANALOGUE-ANALOGUE: 20Hz-14.9kHz /-0.2dB

Noise:
DIGITAL-DIGITAL (rms 20Hz-20kHz): <-110dBFS
ANALOGUE-ANALOGUE: (rms 20Hz-20kHz): <-75dB ref: Limit point 8dBu

Distortion:
DIGITAL-DIGITAL (6dB limiting): <-90dB / 0.003% THD
ANALOGUE-ANALOGUE (6dB limiting): <-70dB / 0.03% THD

Inputs:
ANALOGUE: Active balanced, 10k (bridging), standard operating level -6dBu to 14dBu (clip 22dBu)
DIGITAL: AES-3 (XLR); 32, 44.1, 48, 88.2, 96kHz sample rate. 16, 20, or 24 bits.

Output:
ANALOGUE: Active true balanced, standard operating level -6dBu to 21dBu
DIGITAL: AES-3 (XLR); full input rate / half rate.

Processing blocks:
High-Pass: 3dB Frequencies 3Hz [DC block], 20Hz, 30Hz, 45Hz, 75Hz, 90Hz, 135Hz, 150Hz, 180Hz.
Phase Rotator: Cancels asymmetry in certain programme material
Gated AGC: Capture range 40dB ( /-20dB); maximum positive gain can be set.
Advanced AGC enables faster, programme-dependent operation.
Compressor: Nominal 2:1 slope
Presence Enhancer: Boosts selected frequencies for intelligibility and / or brightness.
Limiter: look-ahead limiters plus NCDCS anti-aliasing clipper.
Low-Pass Filter: Cut-off frequency 4.5kHz, 5kHz, 5.5kHz, 6kHz, 7.5kHz, or 10kHz NRSC compliant
HF Limiter: 50us or modified 75us (NRSC) emphasis curve
Tilt Corrector: Reduce tilt due to LF problems in some transmitters. Increases loudness.

Control:
Setup is via PC GUI only. Select a factory preset, modify it, set levels etc, save to Flash memory.
USB on front panel, plus RS-232 on rear panel. ASCII Text based command format. Choice of ‘Easy’
mode (simplified, with Wizard), or Expert mode for GUI control.

Power:
100 – 240V AC Nominal (acceptable range 88V to 264V AC) / 6 Watts / 9VA.

Dimensions & weight:
1-RU: 44 x 482 x 290mm deep / 1.75” x 19” x 11.25” deep. Weight: 1.8kg / 4lbs

Computer Control:
Every processing parameter, including all thresholds and time constants, can be accessed and modified
under PC control (GUI included).

Warranty:
3 year return-to-base warranty

Approvals:
CE (EMC & LVD), RoHS
