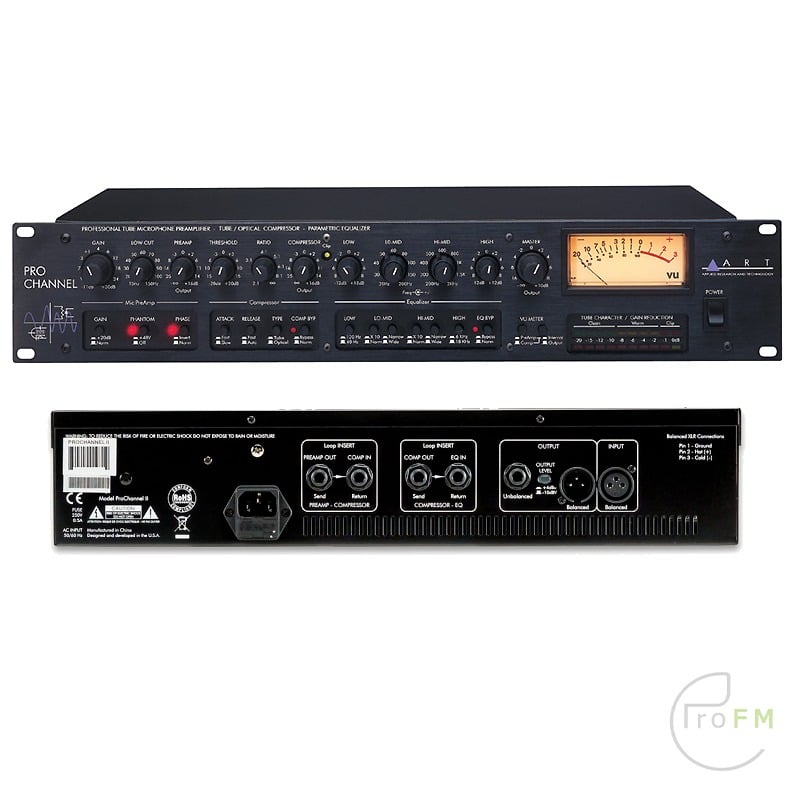

ART Pro Channel II Microphone Compressor

ART Voice Channel Voice processor – Preamp

The ART Pro Channel II™ uses second-generation discrete Class-A microphone preamp to provide clean quiet gain while maintaining incredible transparency. A powerful dynamics processor subtly controls transients and noise of the most demanding sources.

The ART Pro Channel II™ ‘s semi-parametric EQ offers wide tune-ability and can be patched before OR after the dynamics processor. Separate rear-mounted insert points allow patching in external signal processing gear immediately after the Mic preamp and before the EQ and dynamics processor. Both analog and LED meters provide a detailed indication of audio levels.

Key Features

• Fully Featured discrete class “A” Tube Microphone Preamplifier
  1/4″ High Z input on the front panel
  Selectable plate Voltage
  Smooth musical sounding Optical Compressor
  Separate Attack and Release controls
  Auto/Manual Attack/Release switch
  Parametric EQ
  Large VU and LED meters
  Multi section clip monitor LED
  Selectable Source switches for VU signal monitoring of any section of the unit
  Two insert loops
  +4/-10 dB switch for optimal signal output levels
  Toroidal power transformer for low noise

SPECIFICATIONS

Input Impedance
Mic 150 to 3.4K Ohms, variable
Instrument 2.5M Ohms
Preamp Insert 7.5K Ohms

Output Impedance
Balanced Output 600 Ohms balanced
Unbalanced Output 300 Ohms
Insert Outputs 300 Ohms

Frequency Response
Analog In to Analog Out 12 Hz to 100 KHz +0, -1 dB
THD
1 KHz < .015% typical
20 to 20 KHz < .033% typical

Equivalent Input Noise
Mic/Line -128 dBu, Input shorted, Max gain, “A” weighted
Instrument -109 dBu, Input shorted, Max gain, “A” weighted

Maximum Input Level
Mic +18 dBu balanced
Instrument +15 dBu

Maximum Gain
Mic 70 dB (XLR to balanced output)
Instrument 64 dB (1/4-inch to balanced output)

Maximum Output level
Balanced +24 dBu
Unbalanced +20 dBu
Output Level At Meter 0 VU +4 dBu/-10dBV

Preamp
Microphone Gain 0 dB to +56 dB
Instrument Gain +3 dB to +50 dB
Low Cut Filter 10 – 250 Hz, 1-pole, 6 dB/Octave

EQ
Boost/Cut +12 dB on each band
Low Freq. Tuning 40 / 120 Hz Selectable
MID 1 Freq. Tuning 20 Hz to 2 KHz continuously variable
MID 2 Freq. Tuning 200 Hz to 20 KHz continuously variable
High Freq. Tuning 6 KHz / 18 KHz Selectable

Compressor/Limiter
Attack Time 250 uSec. to 100 mSec.
Release Time 100 mSec to 3 Sec.
Compression Ratio 2:1 to 30:1

Dimensions (HxWxD) 3.50-inch x 19.0-inch x 9.17-inch
88mm x 482mm x 232mm
Weight 11 lbs. / 4.99kg
Power Requirements USA – 105 to 125 VAC/ 60 Hz Export units configured for country of destination.
