Aqua Broadcast Artic FM Digital 4 Band Audio Processor

The Artic FM Audio Processor has a sleek and elegant design, and packs a wide feature list as standard into a compact 1RU product. The Multi-band AGC corrects and equalises Audio input levels, and Peak Limiters maintain control of your peak levels. The built-in high-performance digital Stereo Encoder provides a smooth, clean and polished sound.

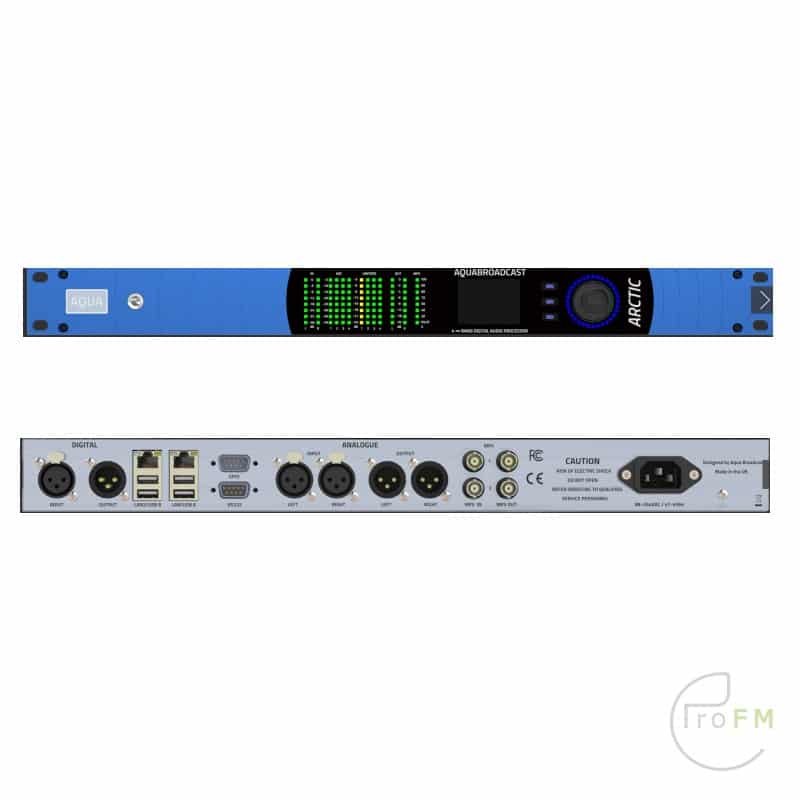

An RDS encoder is also included in the Artic which is UECP compliant. With its bright OLED screen and easy to use rotary encoder and 3 silicone soft keys that work dynamically with the display lets you eaily setup or make changes to your sound. The rear panel features both Analog and Digital AES/EBU inputs and outputs. Two MPX in and out complete the audio connection options. LAN and GPIO connectivity allow for further connections, giving you a complete package ready for all stations. With a comprehensive set of presets right out of the box to get you started, get creative and customize and save your own sound signature to one of the many assignable user presets.

Naturally, full setup and control via web remote is also available with all functions available from anywhere with a web connection. Remote control is easy… Users can manage Artic via LAN by web-based control. HTML, FTP, Telnet, SNMP and RS232 connectivity interfaces with monitoring equipment or just acts standalone, allowing you to monitor and control your processor remotely, from anywhere in the world.

The GUI on the web page is clear, easy to use and responsive, suitable to be managed from any device: Personal Computers, tablets, smartphones.SNMP (v 2.0) programming protocol allows to manage the whole command set. Arctic firmware implements also HTTP, FTP, SNMP, SMTP, UDP, TCP and is PV4 – IPV6 addressing compliant.

The Artic features an RDS (RBDS in the US) encoder which allows the station name to be displayed on listeners’ receivers, and carries various data to enhance the listening experience, such as Alternative Frequencies (which in a network allows the receiver to change frequency to receive the best signal), Radio Text (64-characters which can be used to display a station’s slogan, or other messages) and Traffic Announcement, which causes receivers to switch from CD or other sources back to FM radio when when the station is transmitting traffic information.

PROCESSING
AGC 4 band
Limiters 4 band
Clippers 2 band
Composite processor Yes
Presets Factory and User presets with Bypass option
Pre emphasis 50µs and 75µs, selectable

ANALOG INPUT
Nom. input level +4 dBu
Max input level +24 dBu
Analog input impedance 10kOhms
CMRR: better than 65 dB between 20 and 15KHz
Connectors XLR balanced EMI suppressed
A/D conversion 24 bit
THD < 0.01%, measured between 20 and 10 KHz, de emphasys at 100% modulation
Dynamic range better than 90 dB
Noise level ->90 dB, at 100% modulation measured 20 and 10 KHz
Crosstalk Better than 70 dB between 20Hz and 15 KHz channel

ANALOG OUTPUT
Analog output level 0-24 dBu software adjustable
Analog Output Impedance < 150 ohm
Connectors 2 x XLR balanced adjustable and EMI suppressed
D/A conversion 24 bit
CMRR better than 65 dB between 20 and 15KHz
Dynamic range better than 90 dB
Crosstalk better than 70 dB between 20Hz and 15 KHz channel
Noise level better than 90 dB, at 100% modulation measured 20 and 10 KHz
Crosstalk Better than 70 dB between 20Hz and 15 KHz channel

DIGITAL INPUT (AES/EBU)
Sampling rate: 32 to 192 kHz (ASRC)
Connector: XLR balanced, EMI suppressed
Reference Level: -30 to 0 dBFS software adjustable

DIGITAL OUTPUT (AES/EBU)
Sampling rate: 48/96/192 kHz, software adjustable
Connector: XLR balanced, EMI suppressed
Reference Level: -30 to 0 dBFS software adjustable

BS.412 MPX POWER LIMITING
Power limiter threshold: -6dBr to +12dBr (OFF)

MPX / RDS
Output level 0 to 12 dBu
MPX outputs 2 x BNC EMI suppressed
D/A conversion 192KHz, internally oversampled
Stereo separation better than 60 dB 20Hz – 15 kHz
MPX inputs 2 x BNC EMI suppressed
A/D conversion 192KHz, internally oversampled
Pilot output Selectable on any MPX output
Pilot Carrier Level adjust range 0% to 12%
Channel Separation Better than <65db

REMOTE CONTROL
Connectors Serial, USB A, USB B, RJ45
Protocols HTTP (browse, mobile, API), SNMP, TELNET, FTP, SMTP, RS232

OTHER
Power 90 – 260 VAC, 50/60Hz, 25W IEC connector
Environmental 20ºC – 50ºC / 0-90% RH, non-condensing
Size (inch) 19” W x 1.73” H x 9.84” D
Size (mm) 44mm x 482mm x 200mm
Weight 1.6Kg
Warranty 2 year limited warranty
