Description
Angry Audio USB Analog Audio Gizmo
No, no, no one is being called a whiner! Anyone using computer audio has likely encountered the dreaded high-pitched whine rising up out of the noise floor. The expectation might be that digital audio should be perfect, but the ears do not lie. That annoying whine is heard.
That unwanted whistle is identified as a symptom of a ground loop between the computer and the audio equipment via the sound card. It can be especially pronounced with the unbalanced audio found on many computer sound cards and motherboards. Even balanced audio interfaces can whine. Traditional ground loop suppression techniques, such as ground lifting, do not always help.
One way to eliminate the problem involves replacing the sound cards (and motherboard audio) with a USB interface. This relocates the audio circuits outside of the computer’s internal noisy environment. And if it’s balanced audio, it’s even better. Surprisingly, that digital whine may still appear, even on external USB interfaces, due to a ground loop. The problem has even been observed on the built-in USB interfaces of several expensive broadcast consoles. How is the whining stopped?

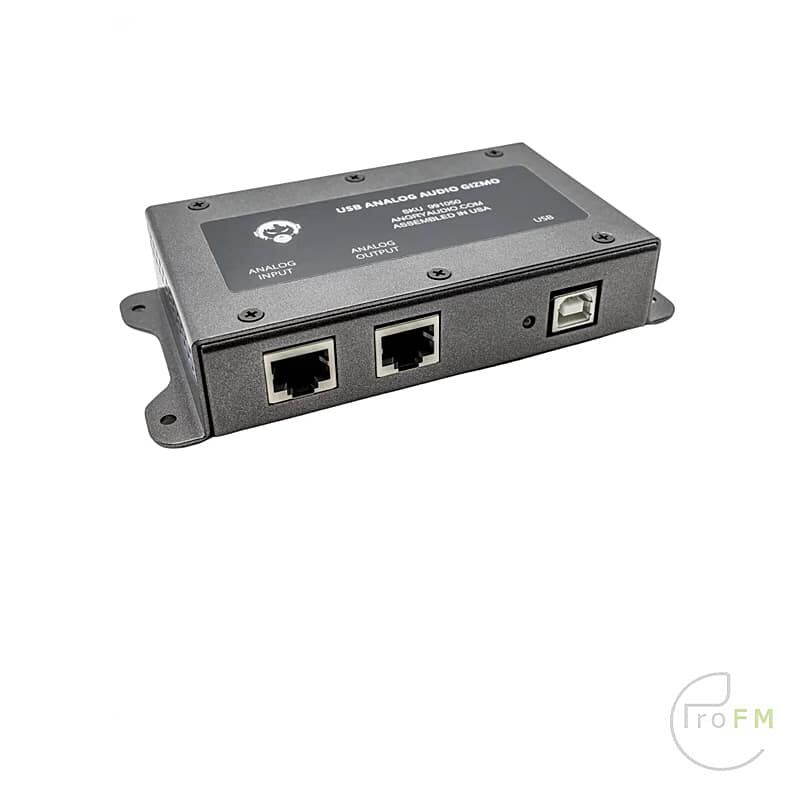

Enter the Angry Audio USB Analog Audio Gizmo. Engineered so that the power, ground, and data lines between the computer and audio circuitry are all galvanically isolated, a ground loop is simply not possible. While it costs more to build it this way, this approach is not seen on cheap USB interfaces. But it’s worth it!
In addition to solving ground loop issues, other limitations found in other audio interfaces have also been addressed. The audio inputs and outputs are fully balanced and capable of signal levels up to +24dBu, meeting professional audio standards. The audio connections are on RJ45 connectors in the StudioHub+ format, making it compatible with plants using StudioHub. For those not using StudioHub, StudioHub XLR adapters are included in the box.
The entire device is powered from the computer’s USB port, with no external wall warts required, simplifying deployment. Plugging into a USB port starts the device immediately, with the USB cable included. The USB Analog Audio Gizmo can be placed anywhere audio needs to be routed into or out of a computer. Being class-compliant, no special drivers are needed. When plugged in, the computer (Windows, MacOS, Linux) will recognize it as a sound device, allowing setup with a few clicks.
The product features a no-frills aesthetic, focusing on creating the simplest, most reliable, best-sounding device available for getting analog +4dBu audio in and out of a computer. It is built for the rough realities of broadcast studios, with a virtually indestructible powder-coated steel enclosure and convenient mounting tabs for easy installation under tables or inside cabinets. Premium components with a generous design margin ensure years of flawless 24/7 operation. Like all Angry Audio products, the USB Analog Audio Gizmo comes with a 30-day “love it or return it for a full refund” guarantee, allowing for risk-free purchase.

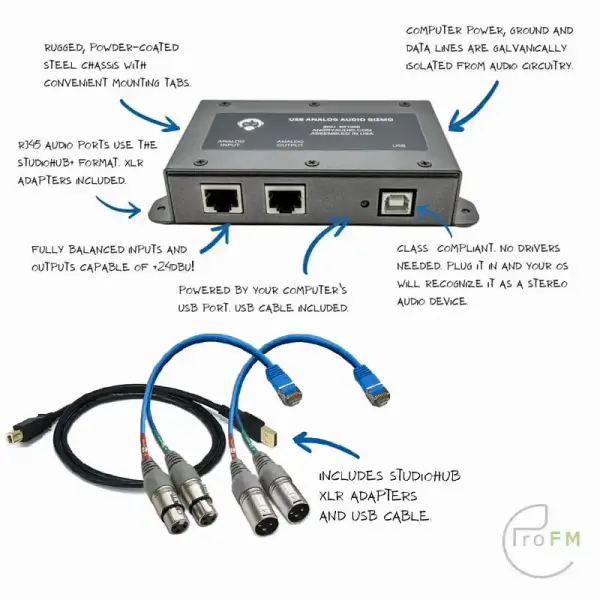

Features:
- Eliminates ground loop issues with galvanically isolated power, ground, and data lines
- Fully balanced audio inputs and outputs capable of +24dBu signal levels
- Uses StudioHub+ format for audio connections with included StudioHub XLR adapters
- Powered by the computer’s USB port, no external power supply needed
- Class-compliant, requiring no special drivers for Windows, MacOS, and Linux
- Durable, powder-coated steel enclosure with mounting tabs for easy installation
- Includes USB cable for immediate use
- Designed for professional, reliable performance in broadcast studios
- Comes with a 30-day satisfaction guarantee for risk-free purchase
Specifications
THD+N ≤ 0.01% (20Hz – 20kHz)
Output Level +4dBu nominal, +24dBu max.
Input Level +4dBu nominal, +24dBu max.
Sample Rate 44.1kHz or 48kHz (Host dependent)
Resolution 16-bit (CD quality)
Power and Environmental
Power Input (USB host) 5VDC, 500mA.
Operating temperature 0° to 40° C (-4° to 104°F)
Storage temperature -20° to 45° C (-4° to 113°F)
Relative Humidity 0% to 90% non-condensing
Product Weight & Dimensions
Shipping box 8in x 6in x 3in, 3 pounds
Box includes
USB Analog Audio Gizmo
USB-A to USB-B cable, 3ft
ADAPTM-XLRFD (StudioHub+ to female XLR stereo adapter)
ADAPTM-XLRMD (StudioHub+ to male XLR stereo adapter)
Mounting screws
