Angry Audio Rave Radio Mixer

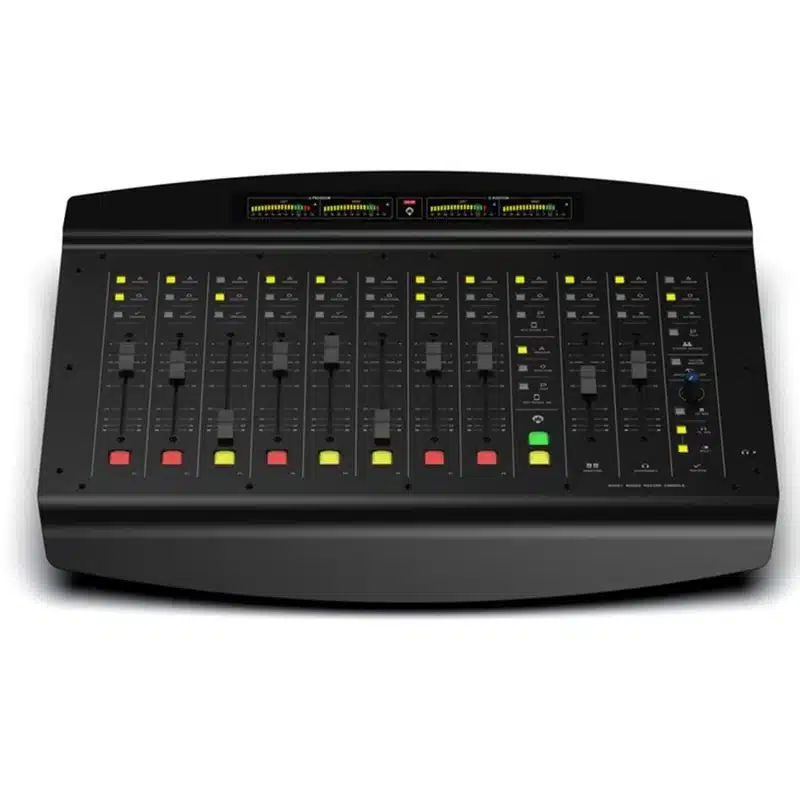

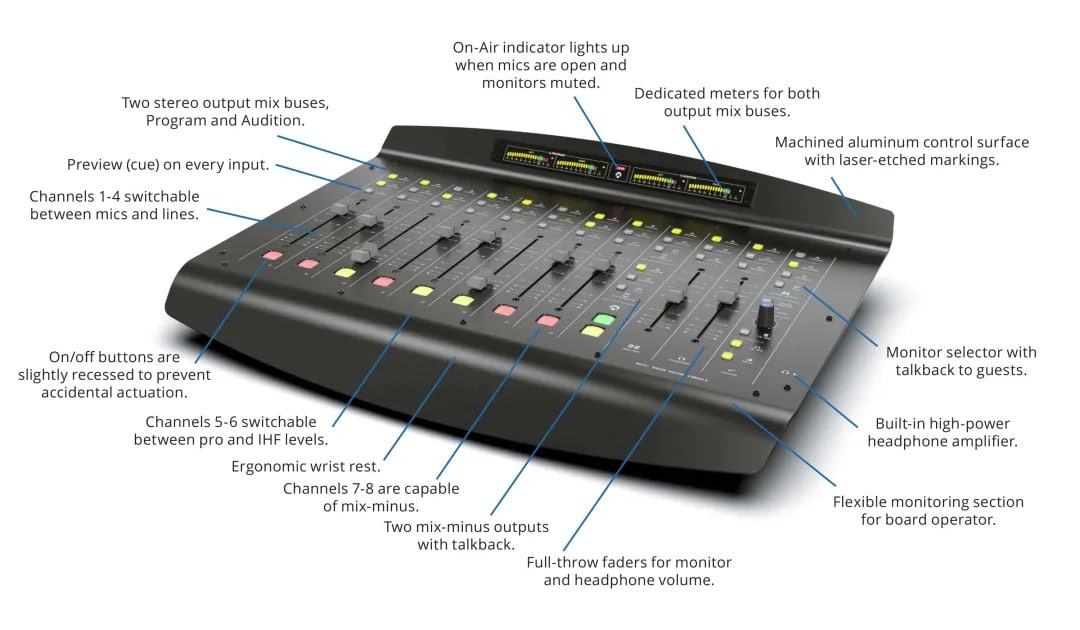

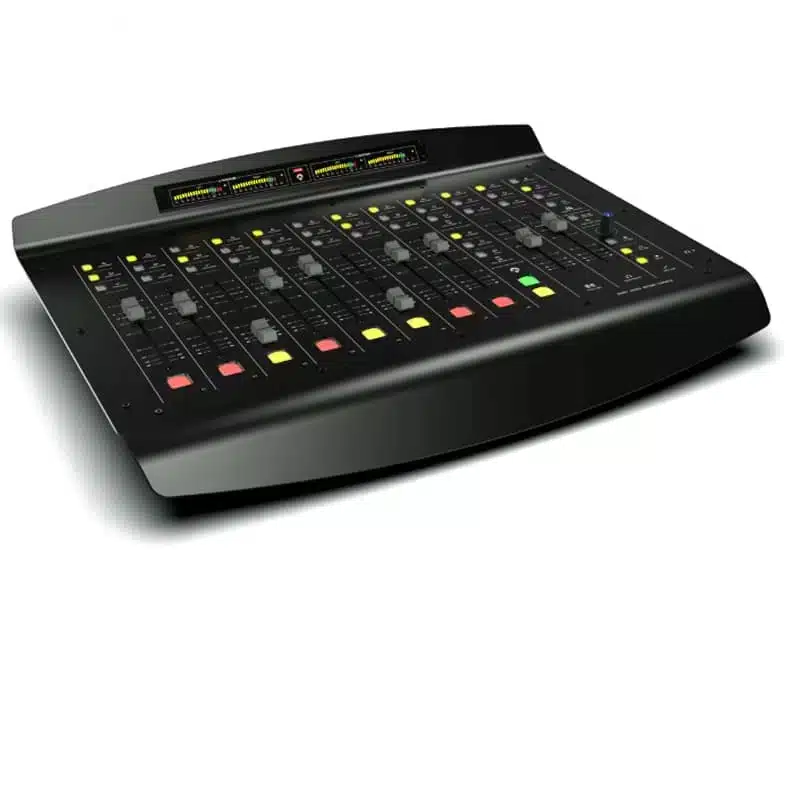

The Angry Audio RAVE! radio mixing console has been introduced by Angry Audio. The unit is equipped with up to eight stereo line inputs, up to four microphone inputs, two output mix buses, two mix-minus outputs with talkback, flexible monitoring for the board operator, and monitor feed to studio guests with talkback. Automatic monitor muting occurs when the microphones are open, and crystal clear metering and tallies are provided. The control surface is crafted from machined and anodized aluminum, and all markings are laser etched to ensure longevity.

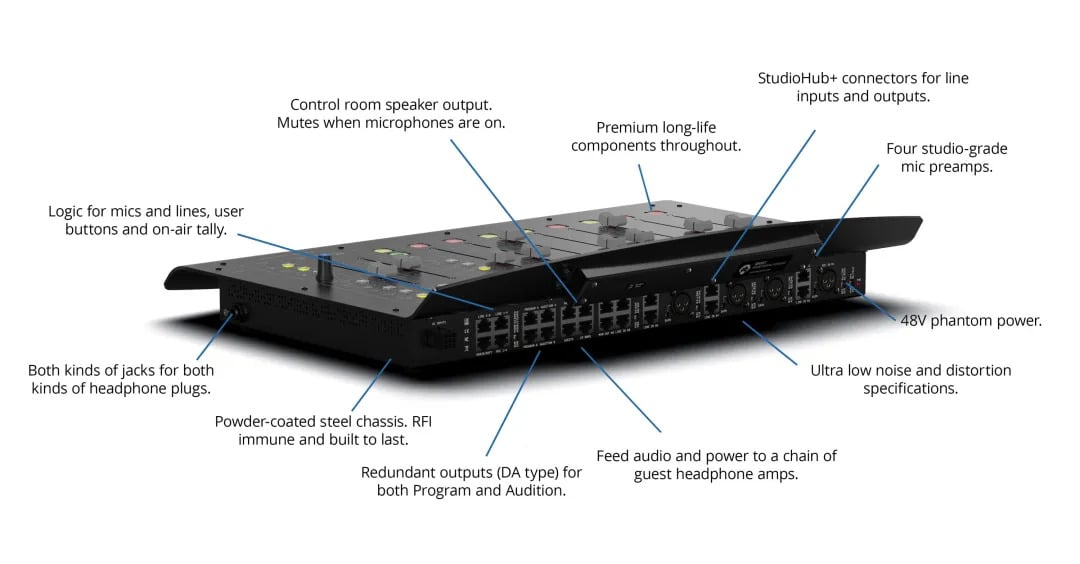

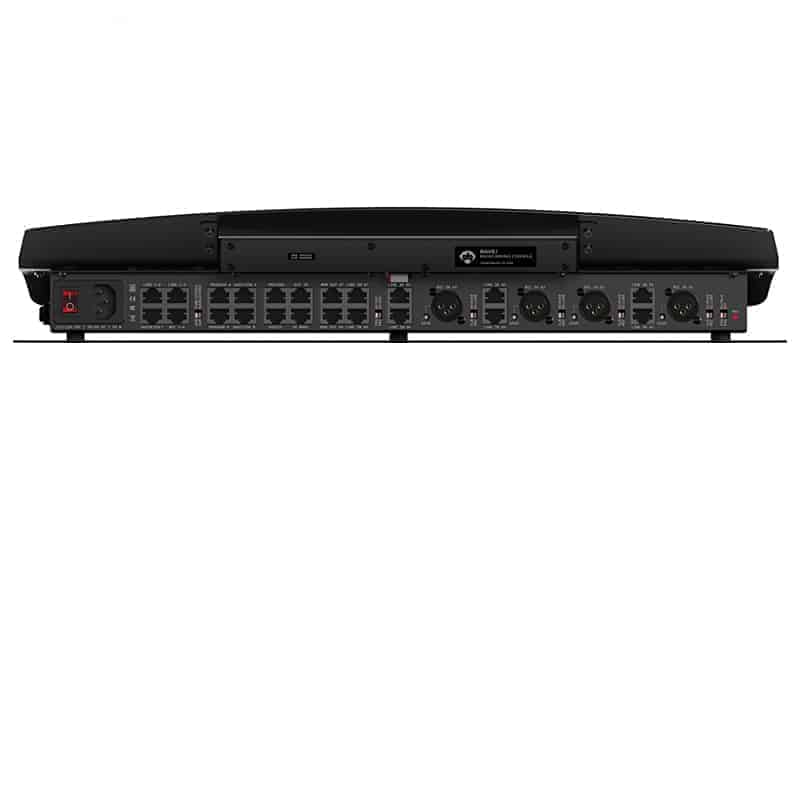

Installation is simplified with StudioHub+ RJ45 connectors for line inputs and outputs, XLR inputs for microphones, a built-in power supply (eliminating the need for a wall wart), mic and line remote logic, and warning and user tally outputs for lighting ON AIR signs and annunciators. Each channel includes a preview (cue) function. The faders are designed to operate smoothly, and avionics-style switches with LED illumination are used. The mixer features a sleek, low-profile desktop design.

The Angry Audio RAVE! radio mixer is designed for professional broadcast use. All inputs and outputs are fully balanced, with line inputs and outputs operating at a nominal +4dBu. Channels 5 and 6 include a special feature for unbalanced sources, allowing the use of a StudioHub to RCA adapter and a switch to boost the lower -10dBV level of unbalanced consumer-type (IHF) source equipment. The StudioHub wiring standard necessitates the use of shielded CAT-5 (or better) cables, as most common network cables are unshielded. Shielded connectors, identified by their conductive surfaces, should be used to ensure proper noise performance and to prevent potential ESD damage to the equipment.

Features:

• Up to eight stereo line inputs
• Up to four microphone inputs
• Two output mix buses
• Two mix-minus outputs with talkback
• Flexible monitoring options
• Automatic monitor muting with open mics
• Crystal clear metering and tallies
• Machined and anodized aluminum control surface
• Laser-etched markings for durability
• Easy installation with StudioHub+ RJ45 connectors
• Built-in power supply
• Silky smooth faders and LED-illuminated switches
• Sleek, low-profile desktop design
• Professional broadcast quality with fully balanced inputs/outputs
• Special feature for unbalanced sources on channels 5 and 6
• Compliance with StudioHub wiring standard using shielded CAT-5 cables

Power & Environmental:
Power Input 115 VAC 50/60Hz (North America Version)
Power Input 230 VAC 50/60Hz (Australia, Europe, UK Versions)
Power Consumption 50 VA
Operating Temperature 0° to 40° C (32° to 104° F)
Storage Temperature -20° to 45° C (-4° to 113° F)
Relative Humidity 0% to 90% non-condensing
Cooling Venting chassis (fanless)

Performance Specifications:
Nominal Levels Line Inputs, Line Outputs +4 dBu
Mic Inputs -50 dBu
Maximum Levels Line Inputs, Line Outputs +24 dBu
Frequency Response Line Input to Program Output +0 dB, -0.5 dB 20 Hz – 20 kHz
Mic Input to Program Output +0 dB, -0.5 dB 20 Hz – 20 kHz
SNR Line Input to Program Output > 88 dB 20 Hz – 20 kHz
EIN Mic Input to Program Output -128 dBu 150Ω Source
THD+N Line Input to Program Output < 0.002%
Mic Input to Program Output < 0.007%
Stereo Separation Line Input to Program Output > 80 dB 10 kHz
Bus Crosstalk Program <> Audition > 90 dB 10 kHz

Weight and Dimensions
Power Supply 8.25 x 6.25 x 1.75 inches 5 pounds
Power Supply (Shipping) 12 x 10 x 10 inches 6 pounds
Console 21 x 16 x 3.75 inches 19 pounds
Console (Shipping) 25 x 21 x 13 inches 22 pounds
