Angry Audio FLEX Radio Mixer

 3.199,00

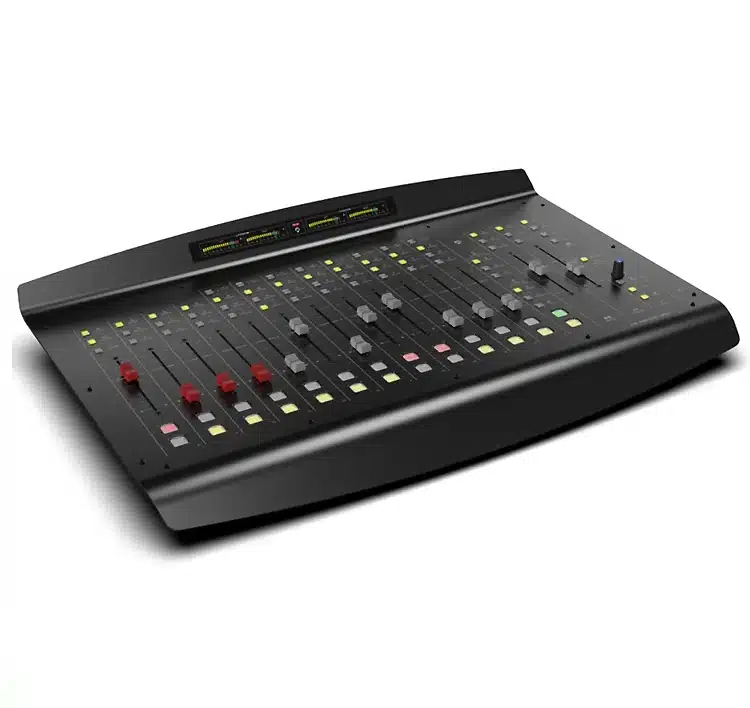

Angry Audio FLEX Radio Mixer

FLEX! is like the RAVE! mixer on steroids. It also features four mic/line faders but it has eight dedicated line faders, each with an A/B source selector, doubling your available stereo line sources. A built-in USB Audio Gizmo brings noise-free computer connectivity to the party. FLEX! also features two output mix buses, two mix-minus outputs with talkback, flexible monitoring, a guest monitor feed with talkback, automatic monitor muting. The console is made from steel and machined aluminum, beautiful and built to last!

Coming Soon!
Category: SKU: 1494

Description

Angry Audio Flex Radio Mixer

The FLEX! is like the RAVE! mixer on steroids. It also features four mic/line faders but it has eight dedicated line faders, each with an A/B source selector, doubling your available stereo line sources. A built-in USB Audio Gizmo brings noise-free computer connectivity to the party. FLEX! also features two output mix buses, two mix-minus outputs with talkback, flexible monitoring, a guest monitor feed with talkback, automatic monitor muting when the mics are open. The console is made from steel and machined aluminum, beautiful and built to last!

The Angry Audio Flex radio mixer adds more sources with 12 input faders- four mic/line and eight dedicated line faders, each with an A/B source selector. A build in USB audio gizmo brings noise free computer connectivity to the mixer. Studiohub connections, Includes external power supply with DC and mains cables.



Features:

  • Up to eight stereo line inputs
  • Up to four microphone inputs
  • Two output mix buses
  • Two mix-minus outputs with talkback
  • Flexible monitoring options
  • Automatic monitor muting with open mics
  • Crystal clear metering and tallies
  • Machined and anodized aluminum control surface
  • Laser-etched markings for durability
  • Easy installation with StudioHub+ RJ45 connectors
  • Built-in power supply
  • Silky smooth faders and LED-illuminated switches
  • Sleek, low-profile desktop design
  • Professional broadcast quality with fully balanced inputs/outputs
  • Special feature for unbalanced sources on channels 5 and 6
  • Compliance with StudioHub wiring standard using shielded CAT-5 cables

Power & Environmental:
Power Input 115 VAC 50/60Hz (North America Version)
Power Input 230 VAC 50/60Hz (Australia, Europe, UK Versions)
Power Consumption 50 VA
Operating Temperature 0° to 40° C (32° to 104° F)
Storage Temperature -20° to 45° C (-4° to 113° F)
Relative Humidity 0% to 90% non-condensing
Cooling Venting chassis (fanless)

Performance Specifications:
Nominal Levels Line Inputs, Line Outputs +4 dBu
Mic Inputs -50 dBu
Maximum Levels Line Inputs, Line Outputs +24 dBu
Frequency Response Line Input to Program Output +0 dB, -0.5 dB 20 Hz – 20 kHz
Mic Input to Program Output +0 dB, -0.5 dB 20 Hz – 20 kHz
SNR Line Input to Program Output > 88 dB 20 Hz – 20 kHz
EIN Mic Input to Program Output -128 dBu 150Ω Source
THD+N Line Input to Program Output < 0.002%
Mic Input to Program Output < 0.007%
Stereo Separation Line Input to Program Output > 80 dB 10 kHz
Bus Crosstalk Program <> Audition > 90 dB 10 kHz

Weight and Dimensions
Power Supply 8.25 x 6.25 x 1.75 inches 5 pounds
Power Supply (Shipping) 12 x 10 x 10 inches 6 pounds
Console 21 x 16 x 3.75 inches 19 pounds
Console (Shipping) 25 x 21 x 13 inches 22 pounds

Description

Angry Audio Flex Radio Mixer

The FLEX! is like the RAVE! mixer on steroids. It also features four mic/line faders but it has eight dedicated line faders, each with an A/B source selector, doubling your available stereo line sources. A built-in USB Audio Gizmo brings noise-free computer connectivity to the party. FLEX! also features two output mix buses, two mix-minus outputs with talkback, flexible monitoring, a guest monitor feed with talkback, automatic monitor muting when the mics are open. The console is made from steel and machined aluminum, beautiful and built to last!

The Angry Audio Flex radio mixer adds more sources with 12 input faders- four mic/line and eight dedicated line faders, each with an A/B source selector. A build in USB audio gizmo brings noise free computer connectivity to the mixer. Studiohub connections, Includes external power supply with DC and mains cables.



Features:

  • Up to eight stereo line inputs
  • Up to four microphone inputs
  • Two output mix buses
  • Two mix-minus outputs with talkback
  • Flexible monitoring options
  • Automatic monitor muting with open mics
  • Crystal clear metering and tallies
  • Machined and anodized aluminum control surface
  • Laser-etched markings for durability
  • Easy installation with StudioHub+ RJ45 connectors
  • Built-in power supply
  • Silky smooth faders and LED-illuminated switches
  • Sleek, low-profile desktop design
  • Professional broadcast quality with fully balanced inputs/outputs
  • Special feature for unbalanced sources on channels 5 and 6
  • Compliance with StudioHub wiring standard using shielded CAT-5 cables
Specifications

Power & Environmental:
Power Input 115 VAC 50/60Hz (North America Version)
Power Input 230 VAC 50/60Hz (Australia, Europe, UK Versions)
Power Consumption 50 VA
Operating Temperature 0° to 40° C (32° to 104° F)
Storage Temperature -20° to 45° C (-4° to 113° F)
Relative Humidity 0% to 90% non-condensing
Cooling Venting chassis (fanless)

Performance Specifications:
Nominal Levels Line Inputs, Line Outputs +4 dBu
Mic Inputs -50 dBu
Maximum Levels Line Inputs, Line Outputs +24 dBu
Frequency Response Line Input to Program Output +0 dB, -0.5 dB 20 Hz – 20 kHz
Mic Input to Program Output +0 dB, -0.5 dB 20 Hz – 20 kHz
SNR Line Input to Program Output > 88 dB 20 Hz – 20 kHz
EIN Mic Input to Program Output -128 dBu 150Ω Source
THD+N Line Input to Program Output < 0.002%
Mic Input to Program Output < 0.007%
Stereo Separation Line Input to Program Output > 80 dB 10 kHz
Bus Crosstalk Program <> Audition > 90 dB 10 kHz

Weight and Dimensions
Power Supply 8.25 x 6.25 x 1.75 inches 5 pounds
Power Supply (Shipping) 12 x 10 x 10 inches 6 pounds
Console 21 x 16 x 3.75 inches 19 pounds
Console (Shipping) 25 x 21 x 13 inches 22 pounds

Additional information

Weight 12 kg
Dimensions 64 × 55 × 34 cm
