Description

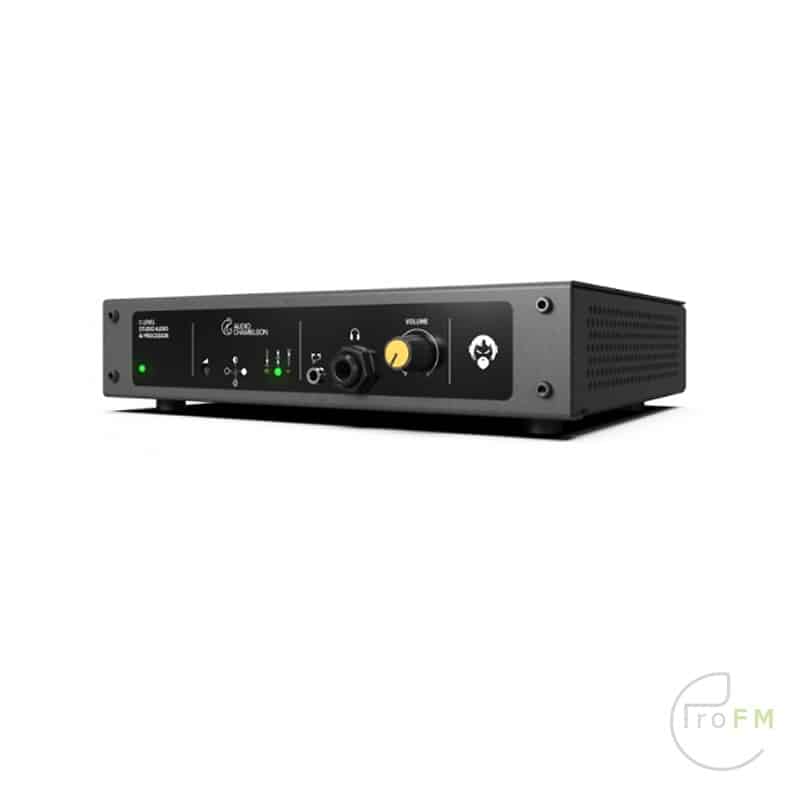

Angry Audio Chameleon C-Level Audio Level Processor
Want to make your station sound better? Of course you do. But a brand new processor might set you back ten large or more. No worries! You can make your existing processor sound dramatically better by feeding it with a Chameleon C-LEVEL audio leveling processor.
Use C-LEVEL as a pre-processor. Insert it between the mixing console and the OTA (over the air) processor and prepare to be amazed. It’s like having the perfect board operator getting all the elements exactly right every second of every show. C-LEVEL outputs a consistent -24LUFS signal which will always keep your OTA processor operating in its sweet spot.
While every OTA processor we’ve tried sounds better with C-LEVEL, some are just shockingly good. The most dramatic improvements could be heard on OTA processors in the modest price range. For example, when an Omnia VOLT was paired with C-LEVEL, the VOLT became an entirely different box, surprisingly competitive with processors costing 2-3 times more. Of course, C-LEVEL makes expensive processors sound better too!
Like all Chameleon processors, C-LEVEL adapts to the incoming audio. All processing parameters are controlled dynamically by our Chameleon expert software. Not only does this eliminate the complexity associated with other audio processors, but more importantly, it delivers the most transparent, natural sounding audio you’ve ever heard.
If your OTA processor is at the transmitter site, put C-LEVEL on the studio side of your STL. This will protect your STL from overload. Another great application for C-LEVEL is as a distribution processor for syndicated programming. You know the affiliates will all have OTA processing. Feed them pre-processed audio so your shows always sound their best on every station.
Specifications.
Part Numbers
North America: p/n# 991037
Australia: p/n# 991037A
Europe: p/n# 991037E
United Kingdom: p/n# 991037U
Included in the box: Chameleon C-LEVEL Processing Gadget
Pocket trimpot adjustment tool
Connections
Analog Input: Balanced +4dBu Stereo XLRF connectors
Balanced +4dBu Stereo RJ45F connector
(StudioHub+ pinout)
Analog Through: Parallel to Analog Input (StudioHub+)
Analog Output: Balanced +4dBu Stereo XLRM connectors
Balanced +4dBu Stereo RJ45F connector
(StudioHub+ includes ±15VDC)
Digital Input: Transformer isolated, AES/EBU, RJ45F connector
(StudioHub+) ASRC, 44.1kHz to 48kHz sampling rate
Digital Output: Transformer isolated, AES/EBU, 48kHz S/R,
RJ45F connector (StudioHub+)
Power and Environmental
Power Input: 115VAC 50/60Hz (North America Version)
230VAC 50/60Hz (Australia, Europe, U.K Versions
Power Consumption: 15VA
Operating Temp.: 0° to 40° C (32° to 104° F)
Storage Temp.: -20° to 45° C (-4° to 113° F)
Relative Humidity: 0% to 90% non-condensing
Cooling: Venting chassis (fanless)
Product Dimensions
Product Dimensions: 8.5 x 6.25 x 1.7 inches (21.6 x 16 x 4.32 cm)
Product Weight: 3.5 pounds (1.59 kg)
Shipping Weight & Dimensions
Shipping Dimensions: 12 x 9 x 6 inches (30.5 x 22.9 x 15.3 cm)
Shipping Weight: 5 pounds (2.27 kg)
