Description

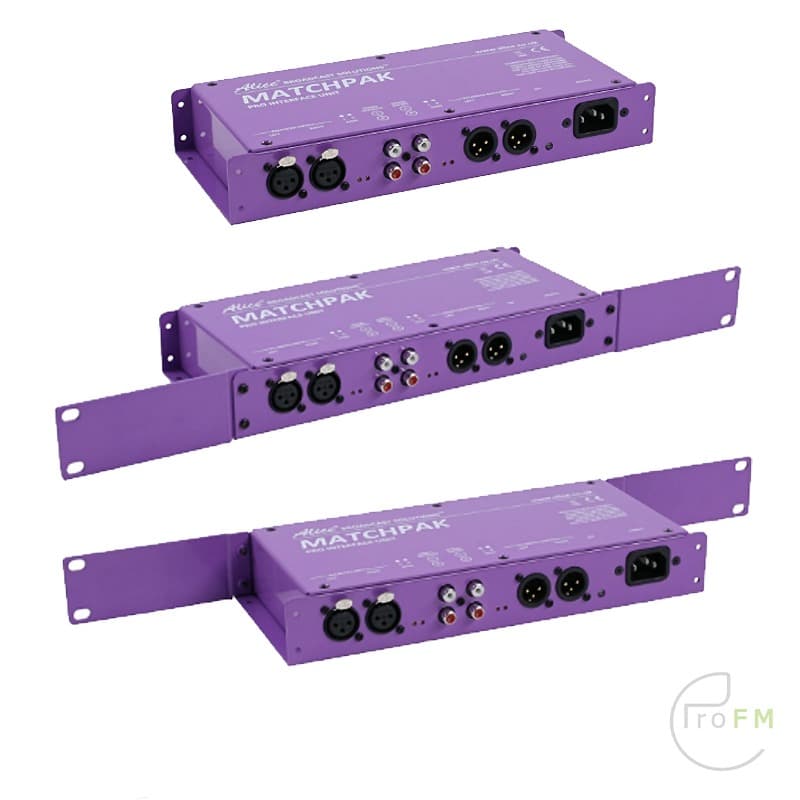

Alice MatchPAK Stereo Unbalanced to Balanced Interface
The Alice MatchPak MKII is a bi-directional stereo unit for interfacing unbalanced semi-pro equipment to professional balanced line-levels. Fitted with four Neutrik connectors for balanced and four RCA sockets for unbalanced connections allowing ideal signal conversion for use with domestic/semi-professional recording/replay equipment.
Supplied set for a nominal 14dB attenuation line to equipment and a nominal 14dB gain equipment to line. Multi-turn pre-sets are provided, accessible through the front panel.
Mains input is via a UK IEC connector with supplied lead (2m).
Rack mountable kit is supplied as standard.
Balanced input to unbalanced output:
Input impedance: 20k ohms
Common-mode rejection: >60dB
Max. input level: +26dBu
Output impedance: less than 2k ohms
Frequency response: 20Hz to 20kHz +0dB – 0.1dB
Noise: <-100dB ref. + 8dBu input
Distortion: (THD): 0.005%
Clipping level: +26dBu at input
Gain range: -26dB to -6dB
Unbalanced input to balanced output:
Input impedance: 22k ohms
Output impedance: less than 1 ohm
Frequency response: 20Hz to 20kHz +0dB – 0.1dB
Noise: <-94dB ref. + 8dBu output
Distortion: (THD): 0.005%
Clipping level: +26dB into 5k ohms. +21dB into 600ohms
Gain range: 6dB to 26dB
0dBu = 0.775 volts RMS
Mains supply: 230 V AC (115V available to order)
Power consumption: 3.2VA
Dimensions: 275 (W) x 115 (D) x 42 (H)
Shipping Weight: 1.25Kg
