Description

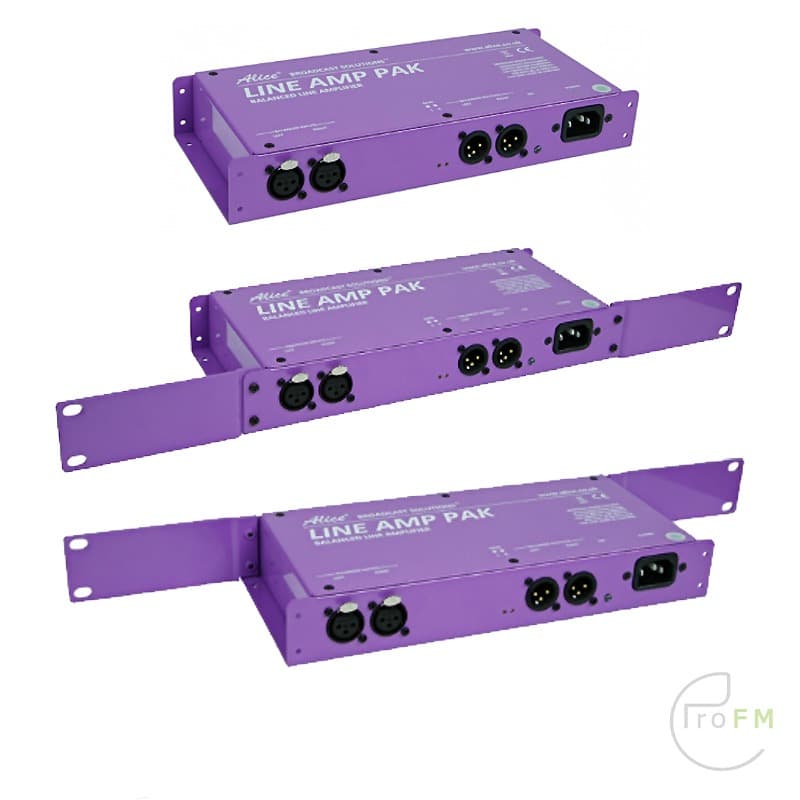

Alice Line PAK MKII Amplifier
Input impedance: 20k ohms balanced
Frequency response: 20Hz to 20kHz ±0.2dB
Common-mode rejection: >60dB
Noise at unity gain: –100dB ref. +8dBu
Distortion: <0.005% 1kHz, +8dBu output
Crosstalk: better than -95dB at 1kHz
Gain adjustment: 10dB loss to 22dB gain
Max. input level: +25dBu
Max. output level: +25dBu
Output impedance: <1 ohm balanced and floating
0dBu = 0.775 volts RMS
Mains supply: 230 V AC 3VA (115V available to order)
Power consumption: 3VA
Dimensions: 275 (W) x 115 (D) x 42 (H)
Shipping Weight: 1.25Kg
