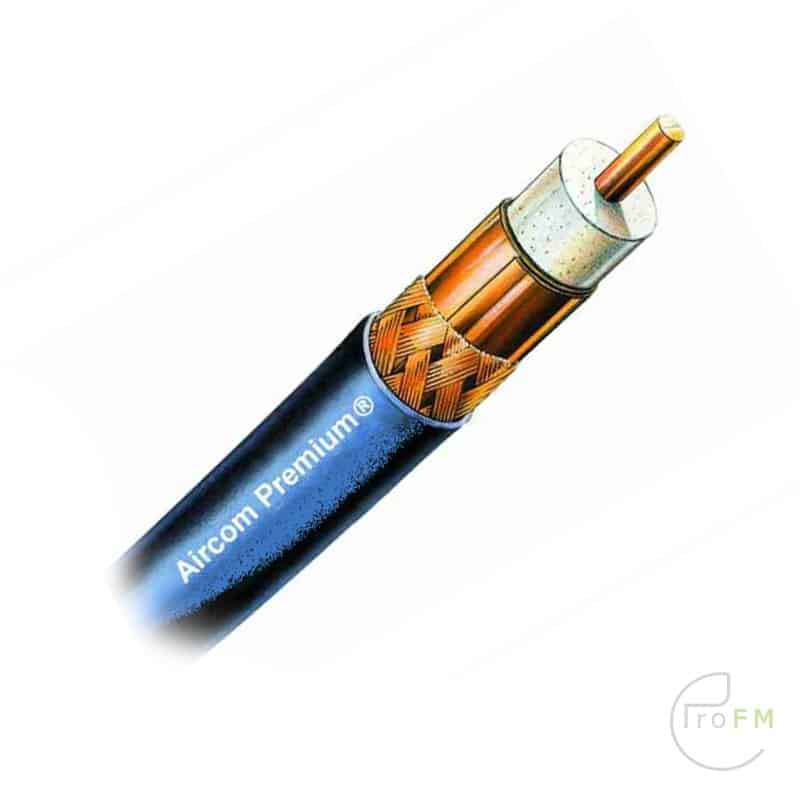

Aircom Premium Coax Cable

Aircom Premium Coax Cable

Price per meter

Technical Data

Centre conductor ……………………..solid copper wire, OFC
Centre conductor Ø ……………………………………..2,7 mm
Dielectric …………………………………….. semi airspaced PE
Dielectric Ø ………………………………………………..7,2 mm
Outer conductor 1 ………………………copperfoil, PE-coated
Shielding factor ………………………………………….. 100 %
Outer conductor 2 …………………………………copper braid
Shielding factor ……………………………………………. 75 %
Sheath ………………………………….black PVC, UV-resistant
Outer diameter Ø ……………………………………… 10,3 mm
Weight ………………………………………………………150 g/m
Min. Bending radius ………………………………………55 mm
Temperature range …………………………….. – 40 bis 80°C
Pulling strength ……………………………………………..5 daN

Electrical specifications

Impedance ……………………………………………………. 50
Capacity …………………………………………………… 81 pF/m
Velocity factor ………………………………………………..0,83
fmax ………………………………………………………… 10 GHz
Screening efficiency @ 1 GHz ………………………. > 85 dB
DC-resistance: Centre conductor ………………… 3,1 /km
Outer conductor ………………….. 6,4 /km
RF peak voltage ……………………………………………….. 1kV

Typ. attenuation (dB/100 m @ 20°C)

5 MHz …………… 0,9
10 MHz …………… 1,2
50 MHz …………… 2,6
100 MHz …………… 3,8
144 MHz …………… 4,6
200 MHz …………… 5,5
300 MHz …………… 6,8
432 MHz …………… 8,4
500 MHz …………… 9,0
800 MHz …………. 11,8
1000 MHz …………. 13,4
1296 MHz ………..15,6
1500 MHz ………..17,0
1800 MHz ………..18,9
2000 MHz ………..20,1
2400 MHz ………..22,5
3000 MHz ………..25,9
4000 MHz ………..31,1
5000 MHz ………..35,9
6000 MHz ………..40,6
10000 MHz ………..58,3

Max. power handling (W @ 40°C)

10 MHz …………3980
100 MHz …………1210
500 MHz …………..510
1000 MHz ……………340
2000 MHz …………180
3000 MHz …………150
4000 MHz …………110
