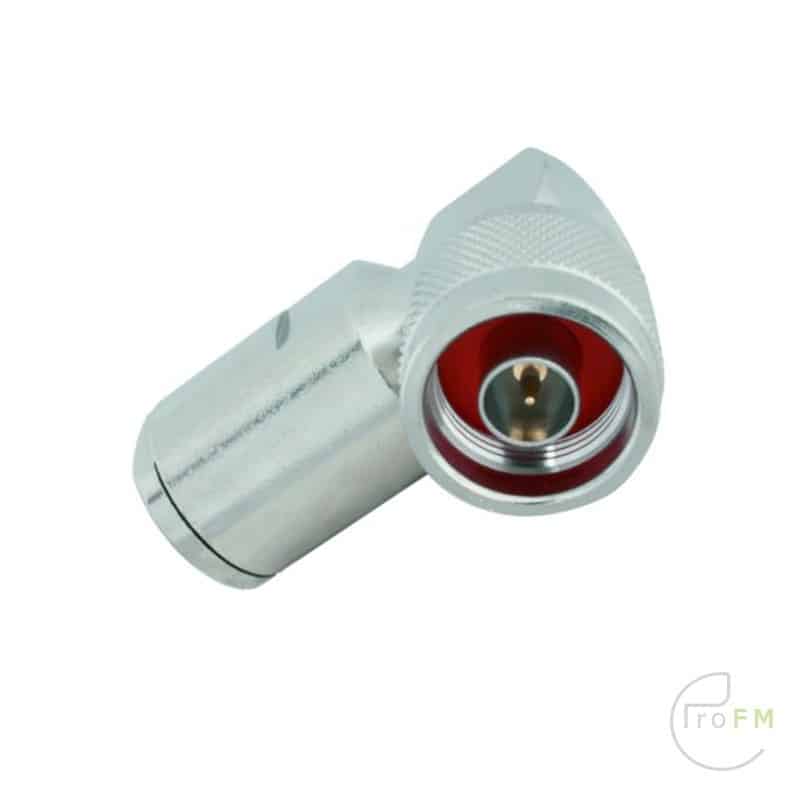

Aircom Plus-Ecoflex 10 N-Right Angle Connector
This N-Male right angle clamp connector from the SSB brand is suitable for, among others, Aircom Premium and Ecoflex 10 coaxial cables.
Features:
Suitable for: Aircom Premium / Ecoflex 10 / H2000 Flex / LMR 400 / RG 213 U / RG 214 U
Insulating sleeve PTFE
Compression sealing rubber
O-ring rubber
Silicone gasket
Surface nickel plated
Metal parts excl. pin CuZn39Pb3
Pin (diamagnetic) CuSn6; QSn6.5-01 (C51900) or CuZn39Pb3
Operating temperature -45°C / +155°C
Weight 90 grams
RoHs certified
Standard: IEC 61 169-16
Protection class IP65
Operating voltage ≤ 1000 V RMS
Impedance 50
Insulation resistance ≥ 5 GΩ
Frequency up to 4 GHz
Inner contact resistance ≤ 1.5 mΩ
Outer contact resistance ≤ 1.0 mΩ
Connector N-male, angle/right angle
Clutch torque: 4-6 Nm
Impedance: 50Ω
Return loss:
≤ -29.1dB@11GHz
≤ -31.5dB@3GHz
≤-35.4dB@1GHz
Insertion loss: ≤ 0.05 dB
Assembly information:
Inner conductor: to solder
Outer conductor: to screw
Package contents
1x SSB N-Male right angle clamp connector
| Impedance: | 50Ω |
| Return loss: | ≤ -29,1dB@11GHz; ≤ -31,5dB@3GHz; ≤ -35,4dB@1GHz |
| Insertion loss: | ≤ 0,05 dB |
Insulation resistance ≥ 5 GΩ
Frequency up to 4 GHz
Inner contact resistance ≤ 1.5 mΩ
Outer contact resistance ≤ 1.0 mΩ
Connector N-male, angle/right angle
Clutch torque: 4-6 Nm
Impedance: 50Ω
Return loss:
≤ -29.1dB@11GHz
≤ -31.5dB@3GHz
≤-35.4dB@1GHz
Insertion loss: ≤ 0.05 dB
