Description
Aircom – Ecoflex 10 N-Connector Male

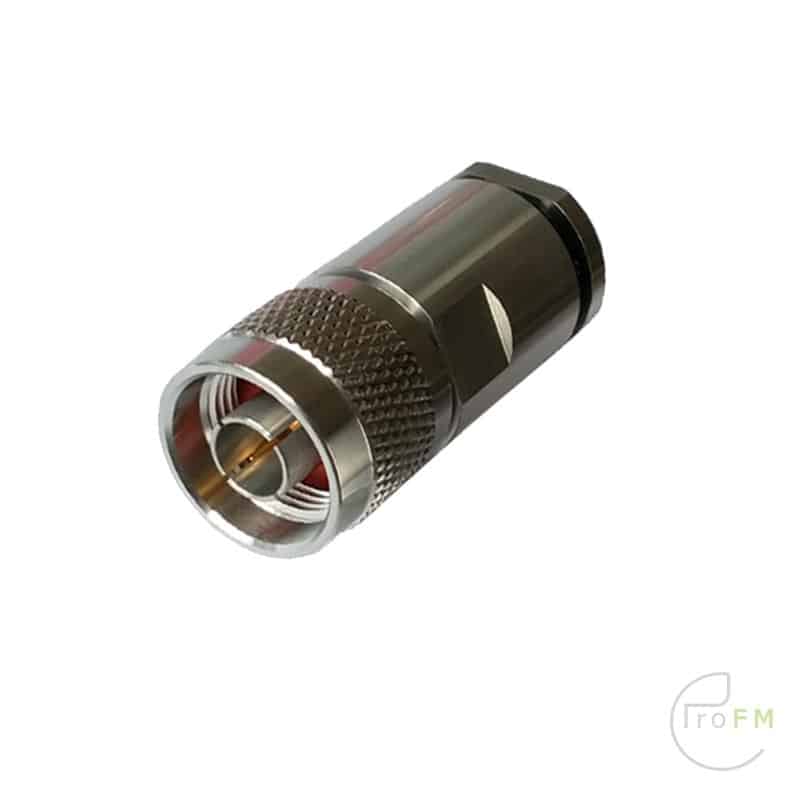

This solderless N-Male connector from the SSB brand is suitable for Ecoflex 10 and Ecoflex 10 Plus coaxial cables.
This N-Male solderless connector has a perfectly fitting pin that clamps around the core, creating optimal contact and an optimal gastight and corrosion-free connection.
SSB connectors are distinguished by smart details and perfection.
Features
Suitable for cable types: Ecoflex 10 / Ecoflex 10 Plus
Connector N-Male
Type: Solderless
Insulating sleeve PTFE
Surface nickel plated
Operating temperature -55°C / +155°C
Weight 55 grams
RoHs certified
Protection class IP67
Impedance 50
Insulation resistance ≥ 5 GΩ
Frequency up to 10 GHz
Inner contact resistance ≤ 1.5 mΩ
Outer contact resistance ≤ 1.0 mΩ
Torque: 4-6 Nm
Assembly information:
Inner conductor: solderless – Inner conductor: solderless
Outer conductor: to screw
Package contents
1x SSB N-Male solderless connector (70-7383)
Isolator: PTFE
Gasket: Rubber O-Ring
Gasket in mating face: Silicone
Surface: nickel plated
Metal parts excl. pin CuZn39Pb3
Pin (diamagnetic) CuSnZn3
Operating temperature -55°C / +155°C
Weight 55g
RoHs compliant Ja / Yes
Protection class IP 67
Working voltage ≤ 1000 V RMS
Impedance 50 Ω
Isulation resistance ≥ 5 GΩ
Frequency up to 10 GHz
Inner contace resistance ≤ 1,5 mΩ
Outer contact resistance ≤ 1,0 mΩ
Standard: IEC 61 169-16
Protection class IP65
Operating voltage ≤ 1000 V RMS
Impedance 50
Insulation resistance ≥ 5 GΩ
Frequency up to 4 GHz
Inner contact resistance ≤ 1.5 mΩ
Outer contact resistance ≤ 1.0 mΩ
Connector N-male, angle/right angle
Clutch torque: 4-6 Nm
Impedance: 50Ω
Return loss:
≤ -29.1dB@11GHz
≤ -31.5dB@3GHz
≤-35.4dB@1GHz
Insertion loss: ≤ 0.05 dB
