Description

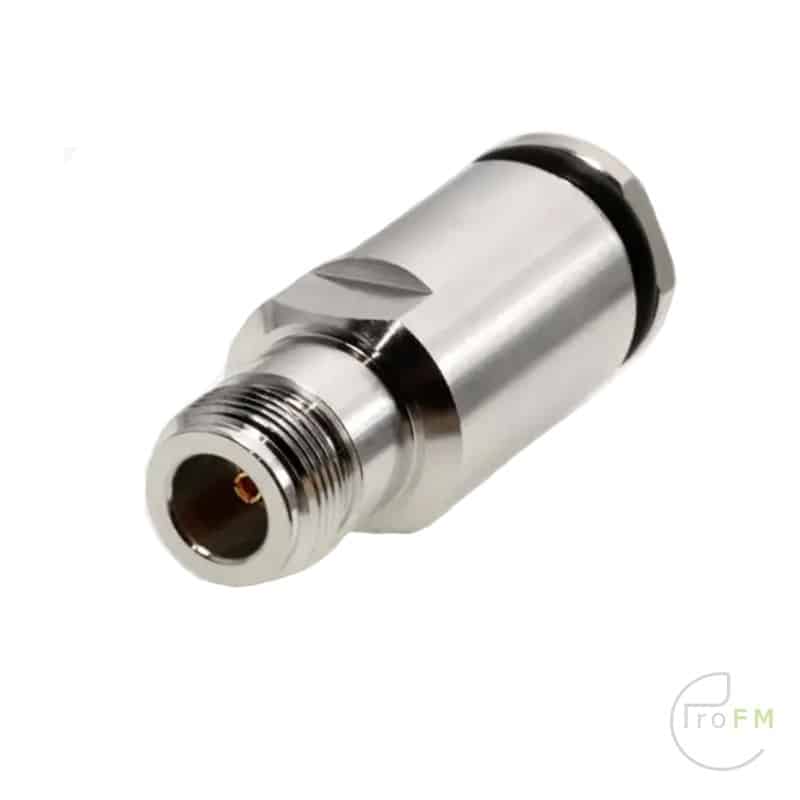

Aircom – Ecoflex 10 N-Connector Female
This N-Female clamp (solder) connector from the SSB brand is suitable for Aircom Plus and Ecoflex-10 coaxial cables.
Features:
Suitable for cable type: Aircom Premium / Ecolfex-10 / H 1000 / H 2000 Flex / LMR 400 / RG213
Insulating sleeve PTFE
Compression seal rubber
O-ring rubber
Gasket plug surface
Surface nickel plated
Weight 60 grams
RoHs certified
Protection class IP67
Insulation resistance ≥ 5 GΩ
Frequency up to 1 GHz
Clutch tourque: 4 – 6 N
Impedance: 50Ω
Assembly information:
Inner conductor: to solder
Outer conductor: to screw
Package contents
1x SSB N-Female clamp connector
Suitable for cable type: Aircom Premium / Ecolfex-10 / H 1000 / H 2000 Flex / LMR 400 / RG213
Insulating sleeve PTFE
Compression seal rubber
O-ring rubber
Gasket plug surface
Surface nickel plated
Metal parts excl. pin CuZn39Pb3
Pin (diamagnetic) CuSn6; QSn6.5-01 (C51900)
Operating temperature -55°C / +155°C
Weight 60 grams
RoHs certified
Standard: IEC 61 169-16
Protection class IP67
Operating voltage ≤ 1000 V RMS
Impedance 50
Insulation resistance ≥ 5 GΩ
Frequency up to 1 GHz
Inner contact resistance ≤ 1.5 mΩ
Outer contact resistance ≤ 1.0 m
Clutch tourque: 4 – 6 N
Impedance: 50Ω
Return loss:
≤ -33.2dB@11GHz
≤ -36.4dB@3GHz;
≤-47.5dB@1GHz
Insertion loss: ≤ 0.05 dB
- Description
-
Aircom – Ecoflex 10 N-Connector Female
This N-Female clamp (solder) connector from the SSB brand is suitable for Aircom Plus and Ecoflex-10 coaxial cables.
Features:
Suitable for cable type: Aircom Premium / Ecolfex-10 / H 1000 / H 2000 Flex / LMR 400 / RG213
Insulating sleeve PTFE
Compression seal rubber
O-ring rubber
Gasket plug surface
Surface nickel plated
Weight 60 grams
RoHs certified
Protection class IP67
Insulation resistance ≥ 5 GΩ
Frequency up to 1 GHz
Clutch tourque: 4 – 6 N
Impedance: 50ΩAssembly information:
Inner conductor: to solder
Outer conductor: to screwPackage contents
1x SSB N-Female clamp connector
- Specifications
-
Suitable for cable type: Aircom Premium / Ecolfex-10 / H 1000 / H 2000 Flex / LMR 400 / RG213
Insulating sleeve PTFE
Compression seal rubber
O-ring rubber
Gasket plug surface
Surface nickel plated
Metal parts excl. pin CuZn39Pb3
Pin (diamagnetic) CuSn6; QSn6.5-01 (C51900)
Operating temperature -55°C / +155°C
Weight 60 grams
RoHs certified
Standard: IEC 61 169-16
Protection class IP67
Operating voltage ≤ 1000 V RMS
Impedance 50
Insulation resistance ≥ 5 GΩ
Frequency up to 1 GHz
Inner contact resistance ≤ 1.5 mΩ
Outer contact resistance ≤ 1.0 m
Clutch tourque: 4 – 6 N
Impedance: 50Ω
Return loss:
≤ -33.2dB@11GHz
≤ -36.4dB@3GHz;
≤-47.5dB@1GHz
Insertion loss: ≤ 0.05 dB
