Aircell 7 Coax Cable

Aircell 7 Coax Cable

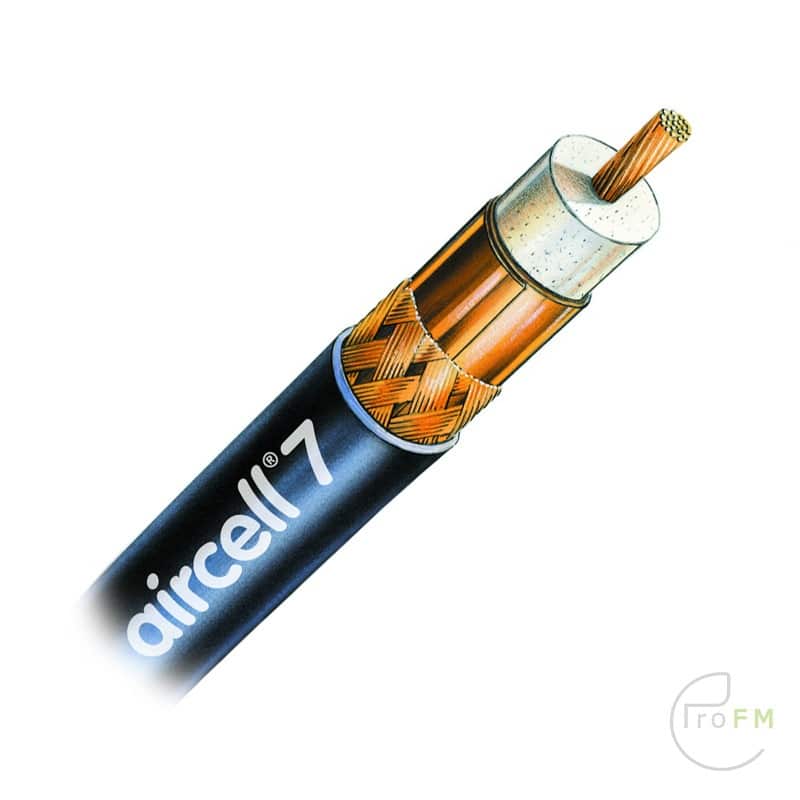

AIRCELL 7 is a super flexible coaxial cable designed for frequencies up to 6 GHz. At a diameter of just 7,3 mm (0.287″ OD) and a minimum bending radius of just 25 mm, it offers relatively low loss. The low attenuation of AIRCELL 7 is achieved through advanced manufacturing techniques and the use of a PE-LLC dielectric with a foaming rate of more than 70%. The extreme flexibility of AIRCELL 7 is further enhanced through the use of a multi-stranded oxygen-free center conductor. Further advantages of this cable include the use of double shielding which is constructed of overlapping copperfoil plus an additional tightly woven copperbraid.

The copperfoil has an applied PE-coating which prevents foil cracking due to short radius bends and the black PVC-sheath of AIRCELL 7 is uv-stabilized. A screening efficiency of > 85 dB@1GHz is realized. AIRCELL 7 is the right choice, when a super flexible, microwave rated cable is required.

Price per meter

Characteristics

Diameter 7,3 mm
Impedance 50 Ohm
Attenuation @ 1 GHz/100m 21,52 dB
Attenuation @ 1 GHz/100ft 4,08 dB
f 6 GHz

Construction

Centre conductor stranded copper, oxygen free
19 x 0,37 mm
Centre conductor Ø 1,85 mm
Dielectric PE low loss compound
Dielectric Ø 5,0 mm
Outer conductor 1 copperfoil, PE coated
Shielding factor 100%
Outer conductor 2 copper braid, 70%
Sheath black PVC, uv-resistant
Outer diameter Ø 7,3 mm

Mechanical specifications

Weight (100 m) 7,2 kg
Min. bending radius 25 mm
Temperature range – 30 …. 80 °C
Pulling strength 2 daN

Electrical specifications

Impedance 50 Ohm
Capacity 75 pF/m
Velocity factor 0,83
f 6 GHz
Screening efficiency @ 1 GHz > 83 dB
DC-resistance
Centre conductor 3,1 Ohm/km
Outer conductor 6,4 Ohm/km
RF peak voltage 1 kV

Max. power handling (W @40°C)

10 MHz 2040
100 MHz 620
500 MHz 260
1000 MHz 180
2000 MHz 120
3000 MHz 90

Typ. attenuation (dB/100m@20°C) dB/100ft @20°C

5 MHz 1,6 0,49
10 MHz 2,2 0,67
50 MHz 4,52 1,38
100 MHz 6,28 1,91
144 MHz 7,6 2,32
200 MHz 9,04 2,75
300 MHz 11,2 3,41
432 MHz 13,6 4,15
500 MHz 14,72 4,49
800 MHz 19,0 5,79
1000 MHz 21,52 6,56
1296 MHz 24,84 7,57
1500 MHz 27,08 8,26
1800 MHz 30,0 9,15
2000 MHz 31,88 9,72
2400 MHz 35,6 10,85
3000 MHz 40,88 12,46
4000 MHz 49,12 14,98
5000 MHz 57,04 17,39
6000 MHz 64,9 19,79
