Description

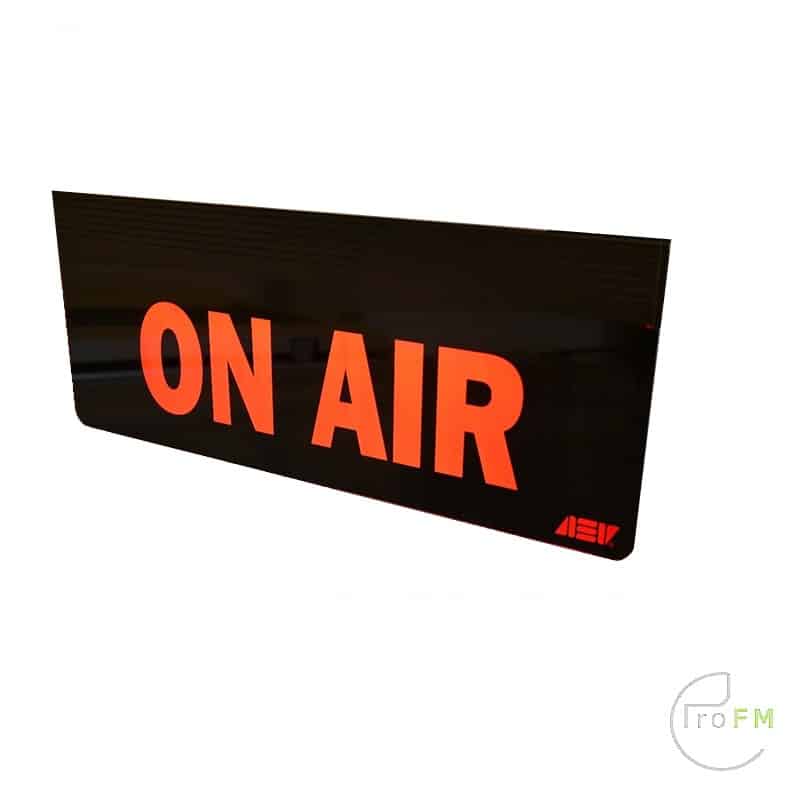

AEV On-Air Light
The ON AIR LIGHT is a device to apply bright instant-start flag (Model AEV-0229010003) or wall (AEV-0229010002) to inside or external studies broadcasting and recording, the device can, however be used for any situation requiring a visual signal. The design of the device makes it extremely easy to install, and its sleek design it different from other similar devices.
The light that displays the sign is ruby red in color, highly effective and strong visibility, even in brightly lit environments. Generally used to indicate to the operators, the zone of silence for the opening of the microphones in the studio or in the presence of speaker in transmission.
Connections
The mains power must be applied using special external power supply, the power supply provides the DC voltage suitable for the operation of the device and is connected to the connector on the right side of the aluminum frame.
For controlling the ignition of the lamp is required is contact (eg switch with NOC) can withstand a current of 1.5 mA; this contact will be applied to the two wires of the cable that comes contacts wired to the device.
External PWS: 90÷264 VAC 50 ÷60 Hz
Power requirement: 9V and 170 mA
Dimensions:
Width: 356 mm
Height: 144 mm
Depth: 14 mm
Weight: 0.7 Kg ( remote cable included )
Operating Temperature. 0 ÷ 50° C
- Discription
-
AEV On-Air Light
The ON AIR LIGHT is a device to apply bright instant-start flag (Model AEV-0229010003) or wall (AEV-0229010002) to inside or external studies broadcasting and recording, the device can, however be used for any situation requiring a visual signal. The design of the device makes it extremely easy to install, and its sleek design it different from other similar devices.
The light that displays the sign is ruby red in color, highly effective and strong visibility, even in brightly lit environments. Generally used to indicate to the operators, the zone of silence for the opening of the microphones in the studio or in the presence of speaker in transmission.
Connections
The mains power must be applied using special external power supply, the power supply provides the DC voltage suitable for the operation of the device and is connected to the connector on the right side of the aluminum frame.
For controlling the ignition of the lamp is required is contact (eg switch with NOC) can withstand a current of 1.5 mA; this contact will be applied to the two wires of the cable that comes contacts wired to the device.
- Specifications
-
External PWS: 90÷264 VAC 50 ÷60 Hz
Power requirement: 9V and 170 mA
Dimensions:
Width: 356 mm
Height: 144 mm
Depth: 14 mm
Weight: 0.7 Kg ( remote cable included )
Operating Temperature. 0 ÷ 50° C
