Description

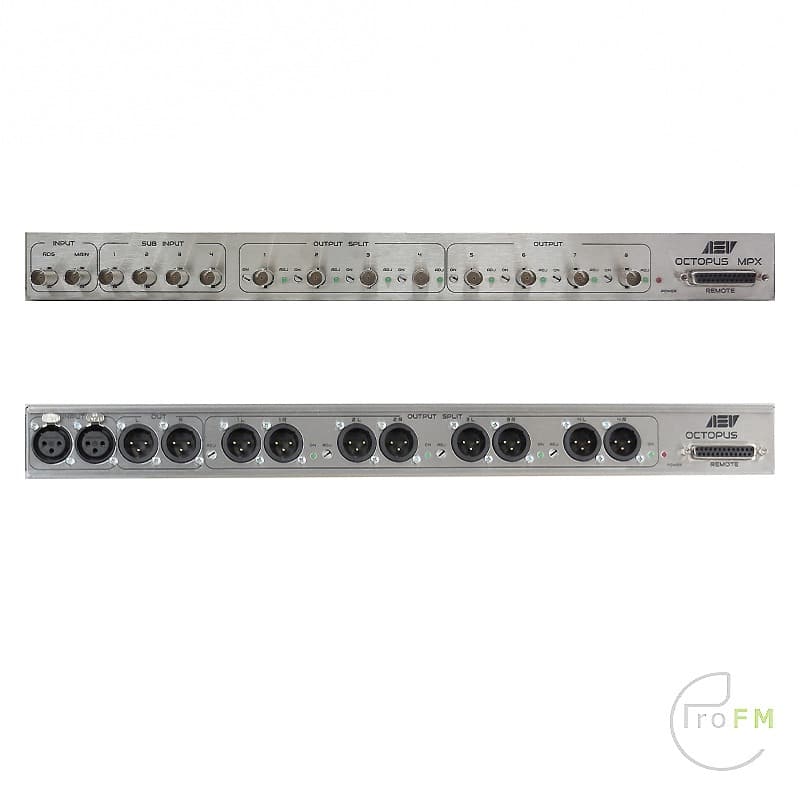

AEV OCTOPUS SPLIT MPX Distributor
Use OCTPUS MPX SPLIT for switching from the Main source to four several secondary sources. You can connect several OCTPUS MPX SPLIT units in cascade mode using the Main expander output of each unit. The outputs gain may be varied with a potentiometer, each output is adjustable with a potentiometer and a led display the status of the outputs ( Main or Sub inputs). The OCTPUS MPX SPLIT has one MPX input, five MPX outputs; the input and outputs are electronically balanced each output is individually buffered so that a short circuit on one won’t affect the others.
OCTPUS MPX SPLIT can accept external controls normally off or normally on, steady or pulse; the inputs are opto-insulated and the configuration can be carried out with its panel. OCTPUS MPX SPLIT supplies an opto-insulated output control which relays the status of the internal audio switcher.
The status of the output opto-coupler can be programmed, it can be normally on, off, steady or pulse. OCTPUS MPX SPLIT is equipped with by-pass relay to ensure in any case the passage of the main signal in the face of power failure.
INPUT MPX
Analog audio input: BNC grounded to chassis
Input Impedance: KΩ
Common mode rejection: Greater than 50 dB (30 Hz 15 KHz)
Connectors: BNC grounded to chassis
OUTPUT MPX
Composite output: BNC output with level control
Output level: As Input Level in Transparent Mode, -6 ÷ +6 dBu in Absolute Mode.
Output Impedance: 50Ω
Connectors: BNC grounded to chassis
GENERAL SPECIFICATIONS
Stereo Separation degradation: < 1 dB
Distortion to 1 KHz: < 0.01%
Signal to noise ratio: < 85 dB (CCIR)
Stereo Separation: Greater than 64 dB 30 Hz ÷15 KHz (78 dB @ 1 KHz)
LOGIC INPUT
Configuration: Opto-coupled (with internally 330Ω protection)
Typical Voltage input: 5 Vdc (for 10 mA input)
Max Reverse Voltage: 5 Vdc
Connector: RJ45 female
LOGIC OUTPUT
Configuration: Optic solid state relay
Max Voltage: 50 Vac/dc
Max Current: 100 mA
Connector: RJ45 female
Power requirement: 90 – 264 V ~ 50 – 60 Hz
Consumption: 4 W
Power supply: max power 8 W
Dimension (WxHxD): 48.3 x 20 x 4.4 cm 1 rack unit
Weight: 2,5 Kg. (5.5 Lbs)
Operating Temp.: 0 ÷ 50° C.
