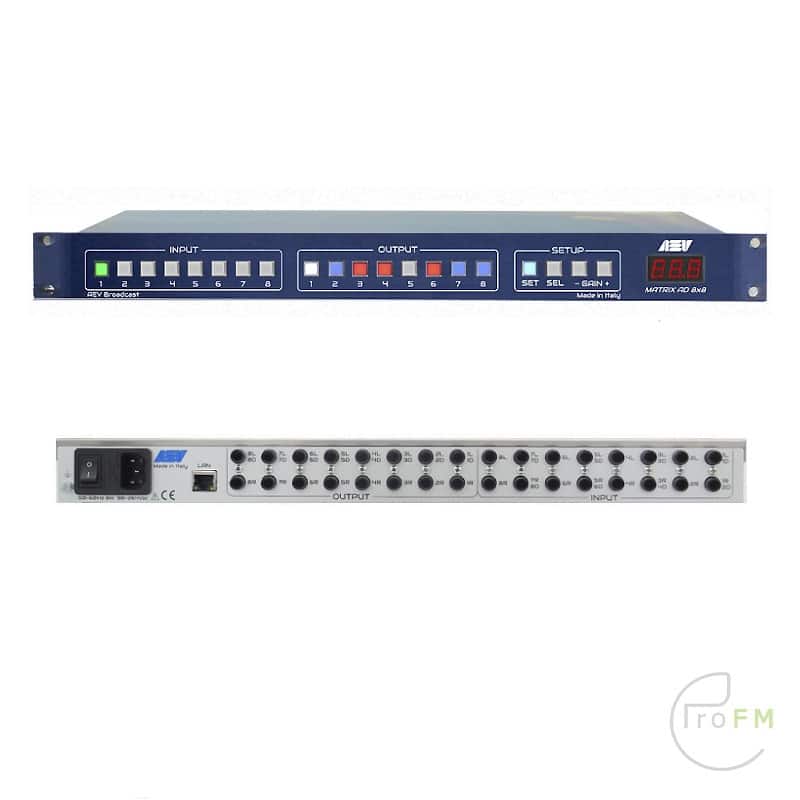

AEV Matrix 8×8 Audio Matrix Switcher

Step into the future of audio distribution with the AEV Matrix 88 – a state-of-the-art solution designed to revolutionize your audio management experience. This high-performance audio distributor combines cutting-edge technology with user-friendly features, making it an essential tool for professionals in various audio-intensive fields.

With an impressive 8-input, 8-output configuration, the Matrix 88 offers unparalleled flexibility for routing and controlling audio signals. Ideal for broadcast studios, conference rooms, and live events, this device ensures precise audio distribution to meet the demands of any production environment.

What sets the Matrix 88 apart is its intuitive interface, allowing easy configuration and customization to suit your specific needs. AEV prioritizes quality, ensuring reliable and crystal-clear audio transmission while minimizing signal loss and interference.

Upgrade your audio setup and streamline your workflow with the AEV Matrix 88. Its durable construction, advanced features, and commitment to excellence make it a must-have for professionals seeking top-tier performance in audio distribution. Embrace the future of audio management – choose the AEV Matrix 88 for a seamless and efficient audio experience.

Features

• 8 Balanced Analog Stereo Inputs
  8 Balanced Analog Stereo Outputs
  Digital AES/EBU Inputs (Optional)
  Digital AES/EBU Outputs (Optional)
  RGB Key to input & input selection
  Digitally Outputs Level Adjust
  DSP powered
  Software Ethernet control
  Connectors Audio TRS, RJ45
  Display input/output level adjust

Inputs
Input configuration Electronic balanced
Input Impedance 10 KΩ
Input Max Level +20 dBm
Input Level Range -24 ÷ +24 dBm, 1 dB steps
Connector Jack stereo 6,3/XLR*
Digital input (internal plug option)
Input configuration AES/EBU, IEC958, S/PDIF & EIAJ CP340/1201
Sample Rate Automatic 32, 44.1, 48, 96 KHz converter

Outputs
Output configuration Electronically balanced
Output Impedance 50 Ω
Output Max Level +20 dBm
Output Level Range -24 ÷ +24 dBm, 1 dB steps
Connector Jack stereo 6,3 (*optional TRS-XLR adapter)
Digital output (internal plug option)
output configuration AES/EBU, IEC958,S/PDIF & EIAJ CP340/1201
Sample Rate 32, 44.1, 48, 96 KHz converter

General Specifications
Stereo Separation degradation < 1 dB
Distortion @ 1 KHz < 0.01%
Signal to noise ratio < 85 dB (CCIR)
Power requirement 90 – 264 V ~ 50 – 60 Hz
Consumption 20 W
Power supply max power 35 W
Dimension (WxHxD) 48,3 x 19,4 x 4,4 cm 1 rack unit
Weight 2,5 Kg. (5.5 Lbs)
Operating Temp. 0 ÷ 50° C.
