Description

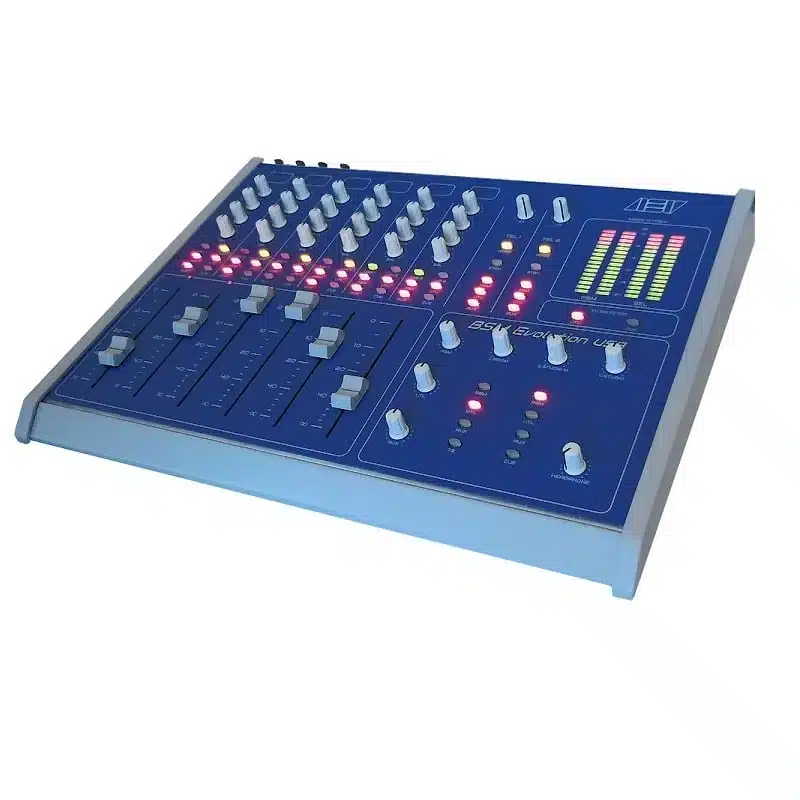

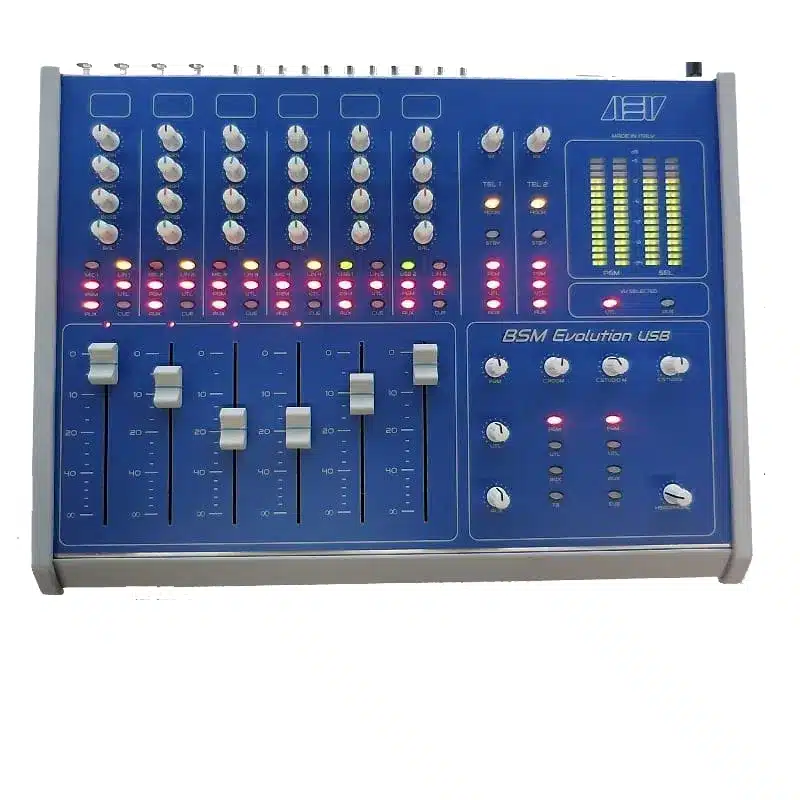

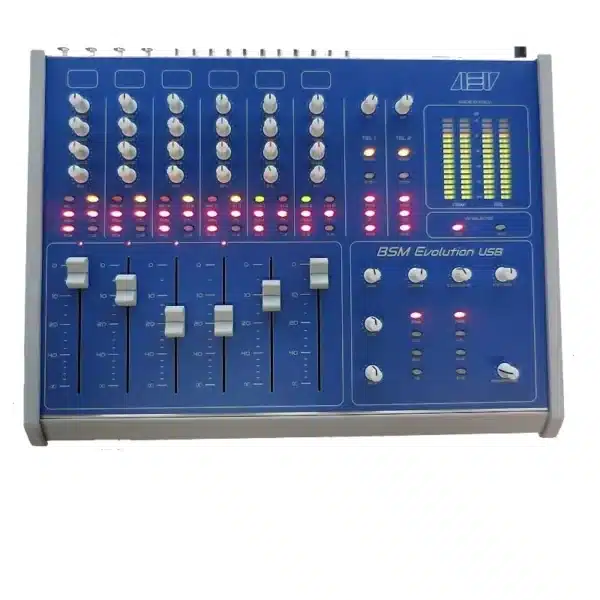

AEV BSM EVOLUTION USB Mixer
The AEV BSM Evolution USM is a compact On Air Console with 6 Input double switchable channels, two USB audio interface and two telephone hybrids, designed specifically for broadcast applications.
INPUT
– 4 balanced mono micro inputand
– 6 stereo line
– USB audio interface
– Tone control (All inputs)
OUTPUT
– Master stereo PGM
– Master stereo UTL
– Master stereo AUX
Auxiliary
– 2 telephone hybrid internally integrated
– Recorder stereo output On USB 1(PGM) and USB 2 (UTL)
– Control Room stereo output
– Control Studio stereo output
– Control studio mute stereo output
– 1 headphone output
Other features
– Led meter fix for monitoring PGM, UTL and PFL levels
– Led meter switchable for monitoring Aux, UTL and CUE levels
– 100 mm ALPS faders
– Phantom power activable on each microphone inputs
– configurer fader start on microphone inputs
– Logic I/O port
– rackmountable 19″
Microphone Inputs
Input configuration Electronically balanced
Input Impedance 200 Ω
Sensitivity Level Range Adjustable from –70 ÷-40 dBu (Trimmer adj.)
Input Level Range ±12 dBu
Maximum Input Level – 30 dBu
Phantom Supply 48 Vdc selectable
Fader 100 mm
Connector XLR Female
Line Inputs
Input configuration unbalanced
Input Impedance 10 K Ω
Input Level Range ±12 dBu
Headroom + 18 dBu
Fader control 100 mm
Connector pins RCA
Telephone Hybrid
Input configuration Opto-coupled
Input impedance 600 Ω Bal
Line Compensation Automatically (max 5 Km)
Rx Level Range ±12 dBu
Frequency response 300 Hz ÷ 3400 Hz (-2 dB) ; 300 Hz ÷ 3400 Hz (-1.5 dB)
Distortion < 1.5 %
Noise -60 dB.

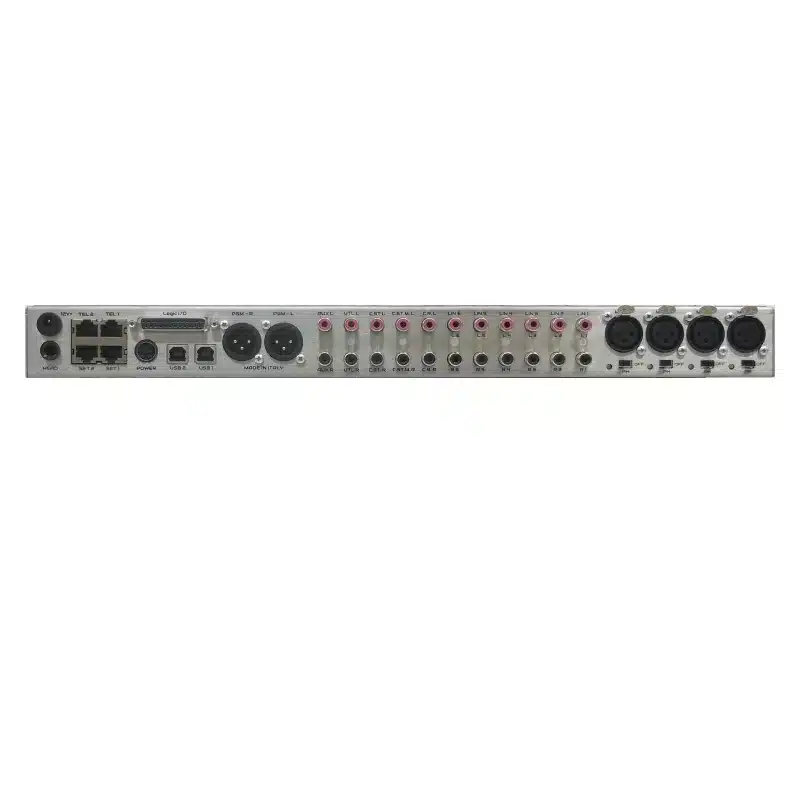

Analog Outputs
PGM Output configuration Electronically balanced
Output Impedance 100 Ω
PGM Output Level Range -12 ÷ +12 dBu
Connector XLR male
UTL/AUX Output configuration unbalanced
UTL/AUX Output Level Range -12 ÷ +12 dBu
Connectors pins RCA
C. Studio & C.Room configuration unbalanced
Control Studio Mut.Output Lev. – 12÷ +12 dBu
Connectors pins RCA
C Room Mut.Output Lev. – 12÷ +12 dBu
Connectors pins RCA
C Studio Output Lev. – 12÷ +12 dBu
Connectors pins RCA
Headphones
configuration Type Stereo unbalanced (C.Room no Muted)
Output Impedance 50 Ω
Connector JACK 6,3 mm
Logic I/O
Configuration Optic solid state relay
Max Voltage 50 Vdc/ac
Max Current 100 mA
Connector DSUB 15 pole female
USB Port 2 x USB 2.0 interface
Dimensions 484 x 310 x 45 mm Weight: 5 K
- Description
-
AEV BSM EVOLUTION USB Mixer
The AEV BSM Evolution USM is a compact On Air Console with 6 Input double switchable channels, two USB audio interface and two telephone hybrids, designed specifically for broadcast applications.
General overview:INPUT
– 4 balanced mono micro inputand
– 6 stereo line
– USB audio interface
– Tone control (All inputs)OUTPUT
– Master stereo PGM
– Master stereo UTL
– Master stereo AUXAuxiliary
– 2 telephone hybrid internally integrated
– Recorder stereo output On USB 1(PGM) and USB 2 (UTL)
– Control Room stereo output
– Control Studio stereo output
– Control studio mute stereo output
– 1 headphone outputOther features
– Led meter fix for monitoring PGM, UTL and PFL levels
– Led meter switchable for monitoring Aux, UTL and CUE levels
– 100 mm ALPS faders
– Phantom power activable on each microphone inputs
– configurer fader start on microphone inputs
– Logic I/O port
– rackmountable 19″ - Specifications
-
Microphone Inputs
Input configuration Electronically balanced
Input Impedance 200 Ω
Sensitivity Level Range Adjustable from –70 ÷-40 dBu (Trimmer adj.)
Input Level Range ±12 dBu
Maximum Input Level – 30 dBu
Phantom Supply 48 Vdc selectable
Fader 100 mm
Connector XLR Female
Line Inputs
Input configuration unbalanced
Input Impedance 10 K Ω
Input Level Range ±12 dBu
Headroom + 18 dBu
Fader control 100 mm
Connector pins RCA
Telephone Hybrid
Input configuration Opto-coupled
Input impedance 600 Ω Bal
Line Compensation Automatically (max 5 Km)
Rx Level Range ±12 dBu
Frequency response 300 Hz ÷ 3400 Hz (-2 dB) ; 300 Hz ÷ 3400 Hz (-1.5 dB)
Distortion < 1.5 %
Noise -60 dB.
Analog Outputs
PGM Output configuration Electronically balanced
Output Impedance 100 Ω
PGM Output Level Range -12 ÷ +12 dBu
Connector XLR male
UTL/AUX Output configuration unbalanced
UTL/AUX Output Level Range -12 ÷ +12 dBu
Connectors pins RCA
C. Studio & C.Room configuration unbalanced
Control Studio Mut.Output Lev. – 12÷ +12 dBu
Connectors pins RCA
C Room Mut.Output Lev. – 12÷ +12 dBu
Connectors pins RCA
C Studio Output Lev. – 12÷ +12 dBu
Connectors pins RCA
Headphones
configuration Type Stereo unbalanced (C.Room no Muted)
Output Impedance 50 Ω
Connector JACK 6,3 mm
Logic I/O
Configuration Optic solid state relay
Max Voltage 50 Vdc/ac
Max Current 100 mA
Connector DSUB 15 pole female
USB Port 2 x USB 2.0 interface
Dimensions 484 x 310 x 45 mm Weight: 5 K
AEV Broadcast is a company known for its expertise in broadcasting technology and solutions. They specialize in providing high-quality equipment and services tailored to the needs of broadcasting professionals.
