Description

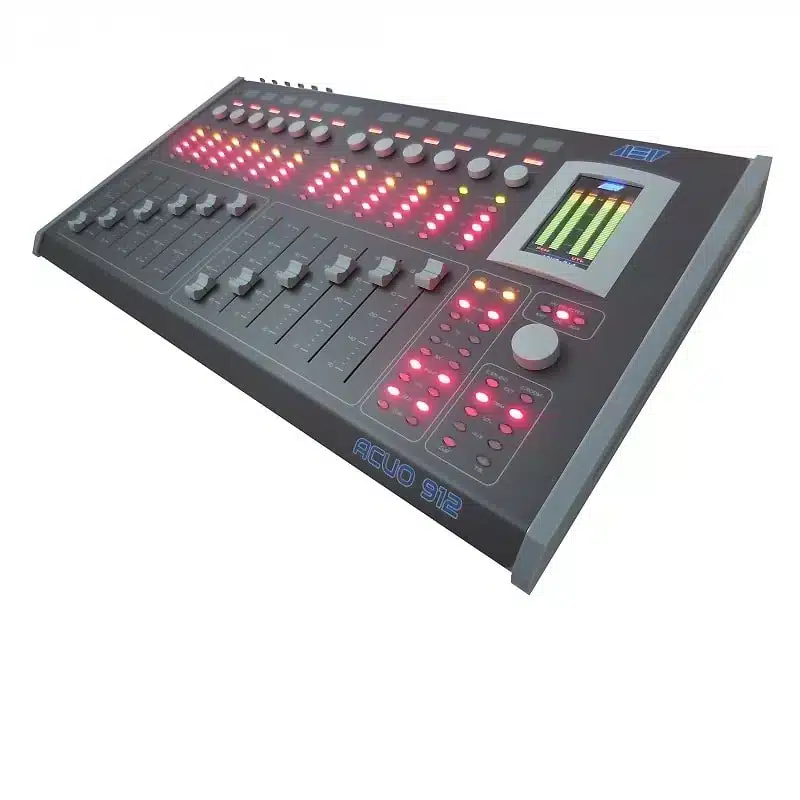

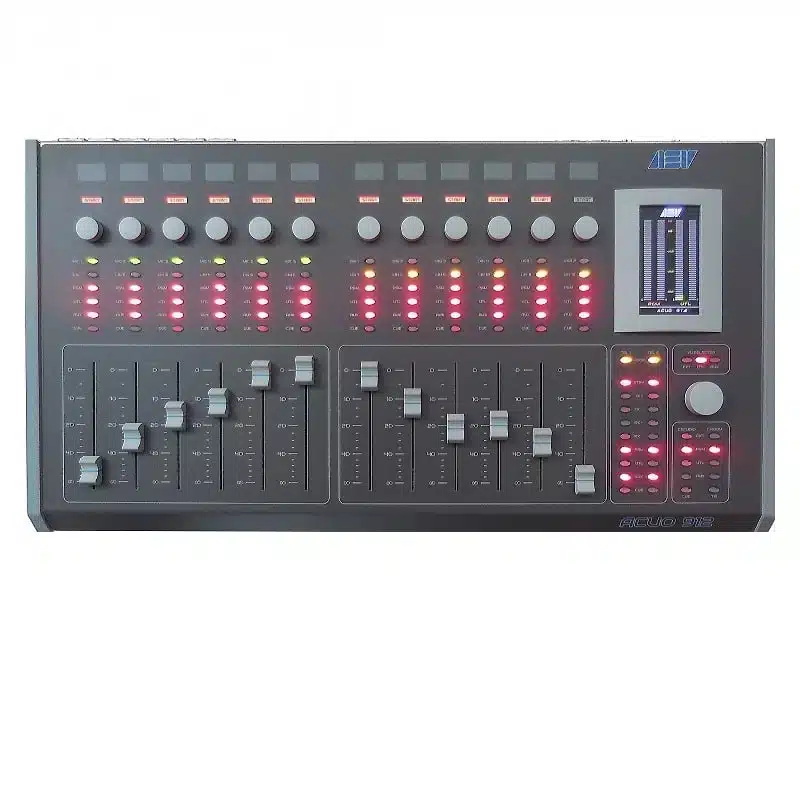

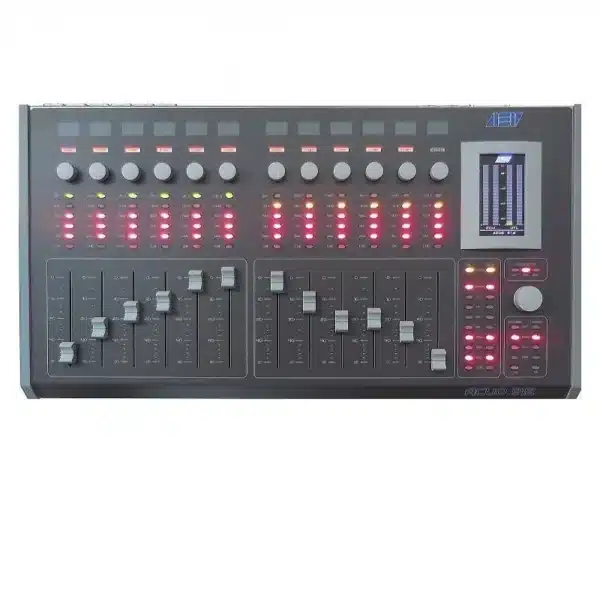

AEV ACUO 912 Broadcast Mixer
AEV introduces the ACUO 912 mixer, the new series for the On Air broadcast consoles ! A modern, compact design, in line with the latest trends in design, together with a careful and ergonomic study make it the new benchmark in the industry with an incomparable versatility, it can be used easily even in the case of outdoor operation
The AEV ACUO 912, with twelf channels and two inputs selectable, microphone inputs and balanced line, AES/EBU digital inputs and outputs, two built-in hybrids, two internal audio cards with USB connectivity, make it a perfect and complete On Air console for broadcasters radio.
Features:
– Balanced inputs and outputs
– Eight channels with double input
– A / B control selection for each input channel
– ALPS sliders 100 mm, with VCA digital control
– Four balanced microphone inputs on XLR connectors and with phantom power enabled
– Eight balanced stereo line inputs with RJ-45 connectors
– Two AES / EBU digital inputs
– Three-band digital equalization on all inputs
– Two hybrids integrated with parametric equalizer
– Phone Hybrid Meeting Function
– Monitoring CUE bus
– Three independent balanced stereo outputs (PGM, UTL, AUX)
– Two independent AES / EBU professional digital outputs (PGM, UTL)
– Stereo audio outputs, Control Room and Control Studio, with monitor mode selection
– Changing Room Control Room Exit
– Balanced EXT stereo service input
– Two sound cards integrated with USB interface for extremely easy and versatile audio operation and interconnection
– Logic OnAir opto coupled logic port
– Bus totally shielded
– Large 4.3 “digital graphic display, with monitor function and control of all functions; digital stereo leds meter: PGM & CUE
– Extremely slim and stylish chassis for easy and practical positioning
TECHNICAL SPECIFICATIONS
Microphone Inputs
Input Configuration Electronically Balanced
Input impedance 200 Ω
Sensitivity level range Adjustable from -70 ÷ -40 dBu (Trimmer attached)
Input level range ± 12 dBu (0.5 dB digital step adjustment)
Maximum input level – 30 dBu
Phantom supply 48 Vdc selectable
100mm VCA Digital Fader Revised
Female XLR Connector
Line Inputs and External Inputs
Input Configuration Electronically Balanced
Input impedance 10K Ω (600 Ω wired)
Input level range ± 12 dBu (adj. digital step 1.0 dB)
Margin + 18 dBu
Revised 100mm VCA Digital Fader Control
RJ-45 connector
Digital
AES/EBU, IEC958,S/PDIF and EIAJ CP340/1201 input configuration
Sampling rate Auto converter 32, 44.1, 48, 96 KHz
Revised 100mm VCA Digital Fader Control
RJ-45 connector
Telephone Hybrid
Opto-coupled input configuration
Input impedance 600 Ω Bal
Line compensation Automatically (max. 5 km)
Tx level ± 12 dBu (adj. digital step 0.5 dB)
Rx Level Range ± 12 dBu (adj. digital step 0.5 dB)
Frequency response 300 Hz ÷ 3400 Hz (-2 dB); 300Hz ÷ 3400Hz (-1.5dB)
Distortion < 1.5%
Noise -60 dB.
Analog outputs
Output Configuration Electronically Balanced
Output impedance 100 Ω
PGM output level range -12 ÷ +12 dBu
Male XLR connector
UTL/AUX output level range -12 ÷ +12 dBu
Connector :RJ-45
Digital outputs
AES/EBU, IEC958,S/PDIF and EIAJ CP340/1201 output configuration
Sampling rate Auto converter 32, 44.1, 48, 96 KHz
RJ-45 connector
Headphones
Configuration Type Unbalanced Stereo (C.Room not Muted)
Output impedance 50 Ω
JACK connector 6.3 mm
Logic I/O
Optical Solid State Relay Configuration
Max Voltage 50 Vdc/ac
Max current 100mA
DSUB connector 15 pole female
USB port Interface 2 x USB 2.0
Dimensions 690 x 360 x 44 mm (L x D x H)
