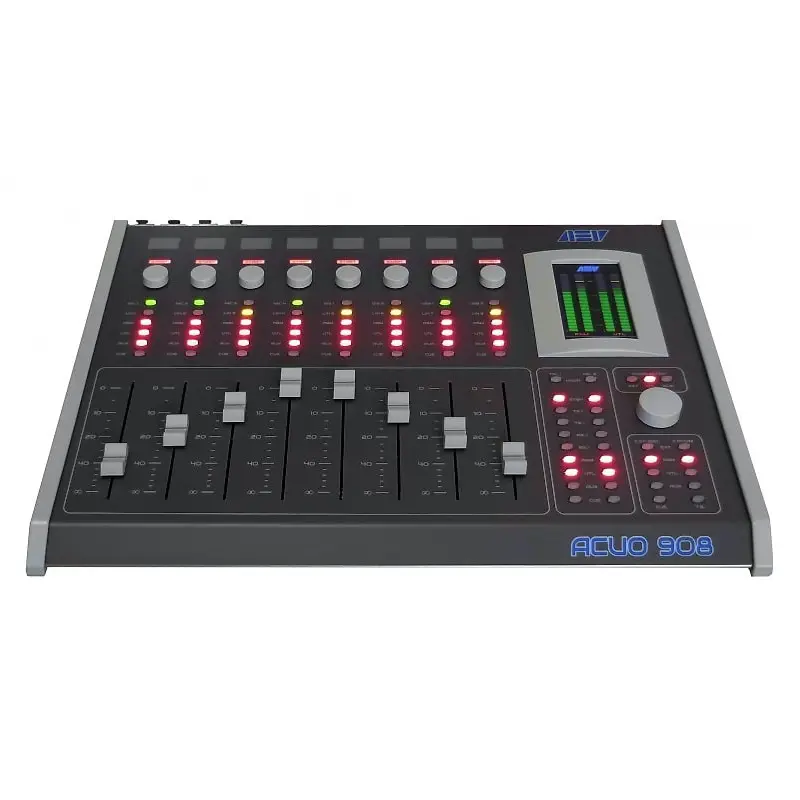

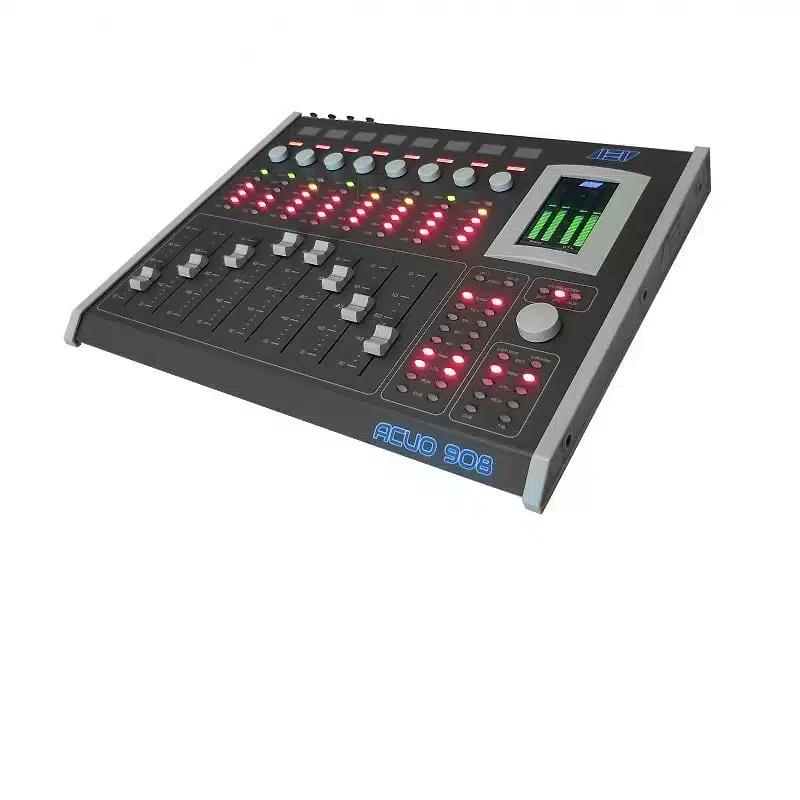

AEV ACUO 908 Broadcast Mixer

The ACUO 908 broadcast mixer, with eight channels and two inputs selectable, microphone inputs and balanced line, AES / EBU digital inputs and outputs, two built-in hybrids, two internal audio cards with USB connectivity, make it a perfect and complete On Air console for broadcasters radio.Modern and compact design, in line with the latest design trends, along with a careful ergonomic study and make it the new benchmark in the industry, with versatile versatility, can be easily used even when working outdoors.

Features:

• Balanced inputs and outputs
• Eight channels with double input
• A / B control selection for each input channel
• ALPS sliders 100 mm, with VCA digital control
• Four balanced microphone inputs on XLR connectors and with phantom power enabled
• Eight balanced stereo line inputs with RJ-45 connectors
• Two AES / EBU digital inputs
• Three-band digital equalization on all inputs
• Two hybrids integrated with parametric equalizer
• Phone Hybrid Meeting Function
• Monitoring CUE bus
• Three independent balanced stereo outputs (PGM, UTL, AUX)
• Two independent AES / EBU professional digital outputs (PGM, UTL)
• Stereo audio outputs, Control Room and Control Studio, with monitor mode selection
• Changing Room Control Room Exit
• Balanced EXT stereo service input
• Two sound cards integrated with USB interface for extremely easy and versatile audio operation and interconnection
• Logic OnAir opto coupled logic port
• Bus totally shielded

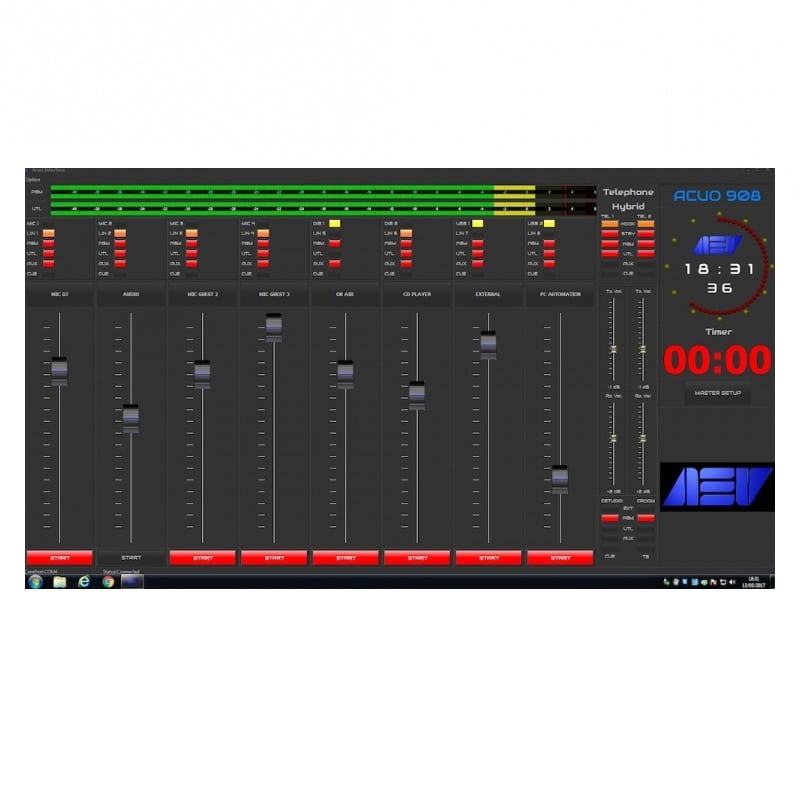

• Large 4.3 “digital graphic display, with monitor function and control of all functions; digital stereo leds meter: PGM & CUE
• Extremely slim and stylish chassis for easy and practical positioning

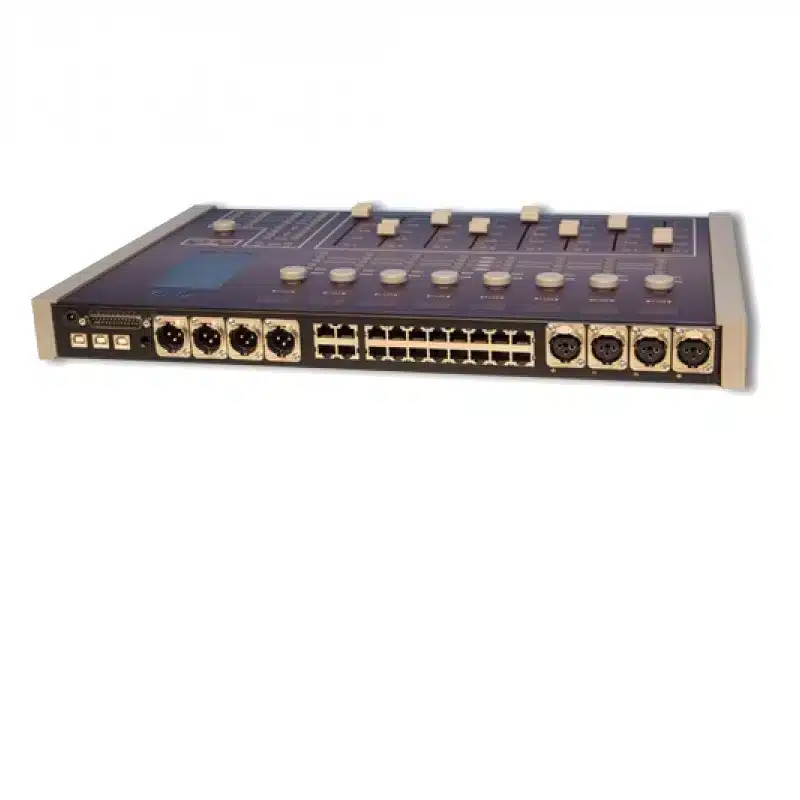

MIC INPUTS:
Input configuration: Electronically balanced
Input Impedance: 200 Ω
Sensitivity Level Range: Adjustable from –70 ÷-40 dBu (Trimmer adj.)
Input Level Range: ±12 dBu (Digital adj. step 0,5 dB)
Maximum Input Level: – 30 dBu
Phantom Supply: 42 Vdc selectable, with 3k3 c.c. protection
Fader 100 mm: VCA Digital controlled
Connector: XLR Female

LINE INPUTS:
Input configuration: Electronically balanced
Input Impedance: 10 KΩ (600 Ω wired selectable)
Input Level Range: ±12 dBu (Digital adj. step 0,5 dB)
Headroom: + 18 dBu
100 mm Fader control: VCA Digital controlled
Connector: RJ-45

DIGITAL INPUTS:
Input configuration: AES/EBU, IEC958,S/PDIF & EIAJ CP340/1201
Sample Rate: Automatic 32, 44.1, 48, 96 KHz converter
100 mm Fader control: VCA Digital controlled
Connector: RJ-45

TELEPHON HYBRID:
Input configuration: Opto-coupled
Input impedance: 600 Ω Bal
Line Compensation: Automatically (max 5 Km)
Tx Level: 0 or + 3 dBu selectable
Rx Level Range: ±12 dBu (Digital adj. step 0,5 dB)
Frequency response: 300 Hz ÷ 3400 Hz (-2 dB)
300 Hz ÷ 3400 Hz (-1.5 dB)
Distortion: < 1.5 %
Noise: -60 dB.

ANALOG OUTPUTS:
Output configuration: Electronically balanced
Output Impedance: 100 Ω
PGM/UTL Output Level Range: -2 ÷ +13 dBu
Connector: XLR male
AUX Output Level Range: 0 dBu fixed
Connector: RJ-45
C Room Mut.Output Lev.: – 2÷ +12 dBu
Connector: RJ-45

DIGITAL OUTPUTS:
Output configuration: AES EBU, IEC958,S/PDIF & EIAJ CP340/1201
Sample Rate: Automatic 32, 44.1, 48, 96 KHz converter
Connector: RJ-45

HEADPHONE:
Configuration Type: Stereo unbalanced (C.Room no Muted)
Output Impedance: 50 Ω
Connector: JACK 6,3 mm

LOGIC I/O:
Configuration: Optic solid state relay
Max Voltage: 50 Vdc/ac
Max Current: 100 mA
Connector: DSUB 15 pole female
USB PORT: USB 2.0 interface
Dimensions: 440 x 360 x 40 mm ( L x P x H )
